PCOM-C605

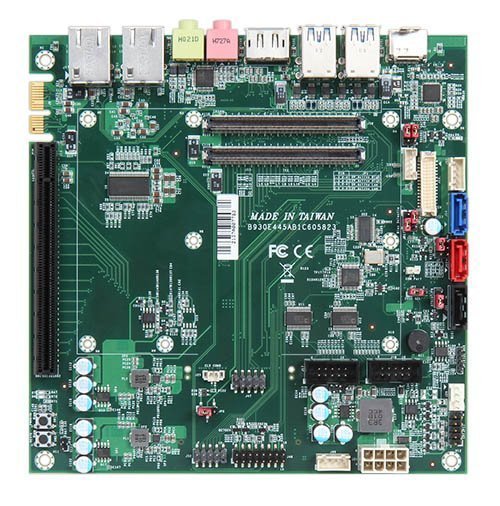

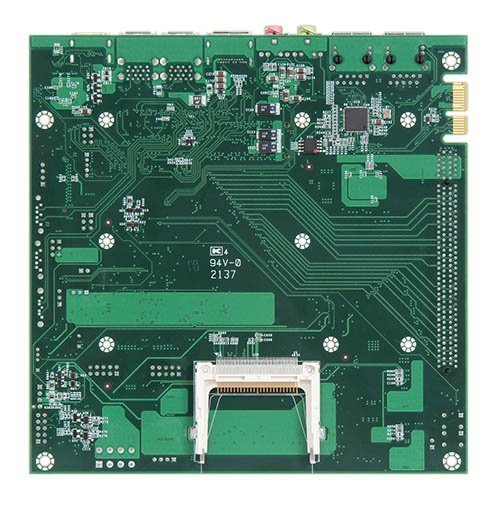

Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 2.1 Module

特點

  • COM Express® carrier board is compatible with the Portwell Type 6 COM Express® modules
  • Support 4x USB 3.0, 2x USB 2.0, 3x SATA Ports, 1 x CFEX
  • Support multiple displays(DP, HDMI®, VGA, LVDS)
  • Support 1 x PEG 2 x PCIe Golden Finger

Description

Portwell PCOM-C605 is designed to as a validation board for most of the Portwell COM-Express 2.1 type 6 modules, this carrier will support VGA, LVDS, DP, HDMI® displays, and included multiple I/O expansions, for example PEG, PCIe, USB3.0. SATA III and CFEX.

Specification

Specifications
General
Form Factor Type 6, Mini-ITX (170 x 170 mm)
I/O Interface
SATA 1 x CFEX
1 x SATA III, 2 x SATA II
USB 4 x USB 3.0, 4 x USB2.0
Ethernet 2 x GbE
Serial I/O GPIO 8 bit GPIO
I2C Based on module desing
SMBus Based on module desing
UART 2 x Serial Port (SuperI/O, RS232)
1 x Serial Port (Tx/Rx)
PEG 1 x PCIe x 16 (Gen3)
PCI Express 2 x PCIe x 1 Golden Finger
Display Default Options Resolution
VGA VGA
LVDS 24bit dual channel LVDS
DDI0 DP
DDI1 HDMI®
Security Depends on module
Mechanical & Environment
Dimension 170mm x 170mm
Power DC IN Support ATX power supply
Storage Temperature -40°C to 80°C
Operation Temperature -40°C to 80°C
Certification Contact us
MTBF Over 100,000 hours at 40°C
Vibration TBD
OS Depends on module

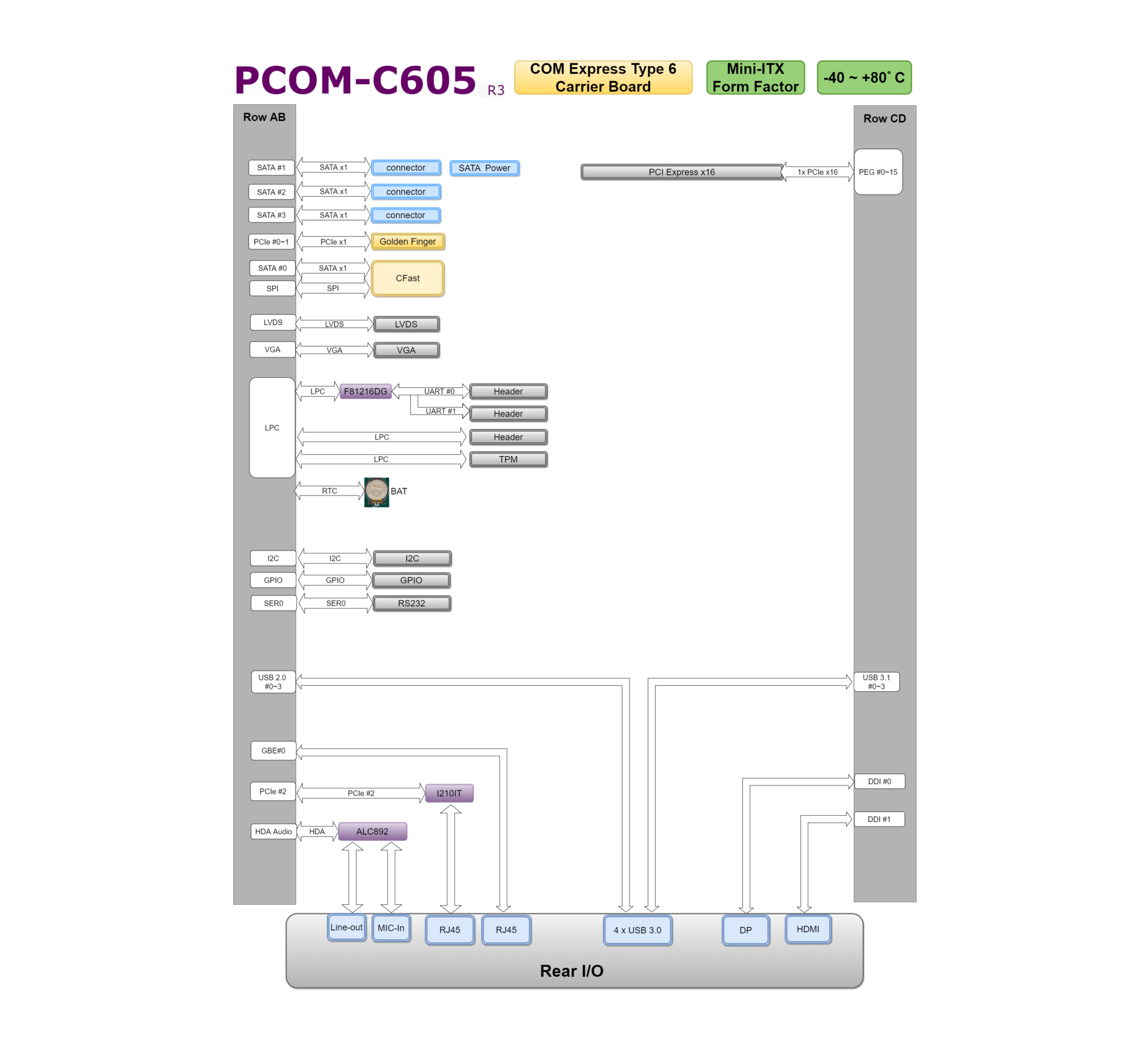

Block Diagram

採購指南

Ordering Guide
Product Ordering P/N Status
PCOM-C605 AB1-3998 Available

Accessory

Accessory
Accessory Ordering P/N Status
VGA Cable B7864720 Available
LVDS Cable TBD In Development

Support

(Documents & Downloads)

  Catalog   PCOM-C605 | Catalog 20211209   5 5 月, 2014
231.8 KB 5585 Downloads
      User’s Manual   Manual_PCOM-C605_R3_BD.pdf | Manual R3   3 5 月, 2022

    PCOM-C605_R3_BD_20220503.pdf

    967.51 KB 1272 Downloads
      User’s Manual   Manual_PCOM-C605_R2.3.pdf | Manual 2.3   24 8 月, 2018

    PCOM-C605 User’s Manual

    2.29 MB 852 Downloads
      User’s Manual   Manual_PCOM-C605_R2.2.pdf | Manual 2.2   17 7 月, 2018

    PCOM-C605 User’s Manual

    2.17 MB 852 Downloads
      User’s Manual   Manual_PCOM-C605_R2.0.pdf | Manual 2.0   20 3 月, 2018

    PCOM-C605 User’s Manual

    997.67 KB 885 Downloads
      User’s Manual   Manual_PCOM-C605_V1.3_20170322.pdf | Manual 1.3   22 3 月, 2017

    PCOM-C605 User’s Manual

    590.92 KB 847 Downloads
      User’s Manual   Manual_PCOM-C605_V1.2_20160615.pdf | Manual 1.2   15 6 月, 2016

    PCOM-C605 User’s Manual

    863.42 KB 1060 Downloads
      User’s Manual   Manual_PCOM-C605_V1.1_20160530.pdf | Manual 1.1   30 5 月, 2016

    PCOM-C605 User’s Manual

    863.60 KB 1083 Downloads
