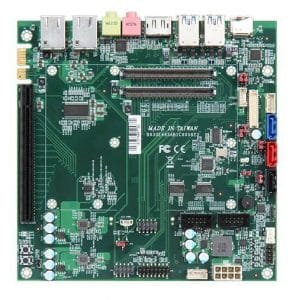

PCOM-C605

Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 2.1 Module

Features

  • COM Express® carrier board is compatible with the Portwell Type 6 COM Express® modules
  • Support 4x USB 3.0, 2x USB 2.0, 3x SATA Ports, 1 x CFEX
  • Support multiple displays(DP, HDMI®, VGA, LVDS)
  • Support 1 x PEG 2 x PCIe Golden Finger

Description

Portwell PCOM-C605 is designed to as a validation board for most of the Portwell COM-Express 2.1 type 6 modules, this carrier will support VGA, LVDS, DP, HDMI® displays, and included multiple I/O expansions, for example PEG, PCIe, USB3.0. SATA III and CFEX.

Specification

Specifications
General
Form Factor Type 6, Mini-ITX (170 x 170 mm)
I/O Interface
SATA 1 x CFEX
1 x SATA III, 2 x SATA II
USB 4 x USB 3.0, 4 x USB2.0
Ethernet 2 x GbE
Serial I/O GPIO 8 bit GPIO
I2C Based on module desing
SMBus Based on module desing
UART 2 x Serial Port (SuperI/O, RS232)
1 x Serial Port (Tx/Rx)
PEG 1 x PCIe x 16 (Gen3)
PCI Express 2 x PCIe x 1 Golden Finger
Display Default Options Resolution
VGA VGA
LVDS 24bit dual channel LVDS
DDI0 DP
DDI1 HDMI®
Security Depends on module
Mechanical & Environment
Dimension 170mm x 170mm
Power DC IN Support ATX power supply
Storage Temperature -40°C to 80°C
Operation Temperature -40°C to 80°C
Certification Contact us
MTBF Over 100,000 hours at 40°C
Vibration TBD
OS Depends on module

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-C605 AB1-3998 Available

Accessory

Accessory
Accessory Ordering P/N Status
VGA Cable B7864720 Available
LVDS Cable TBD In Development
