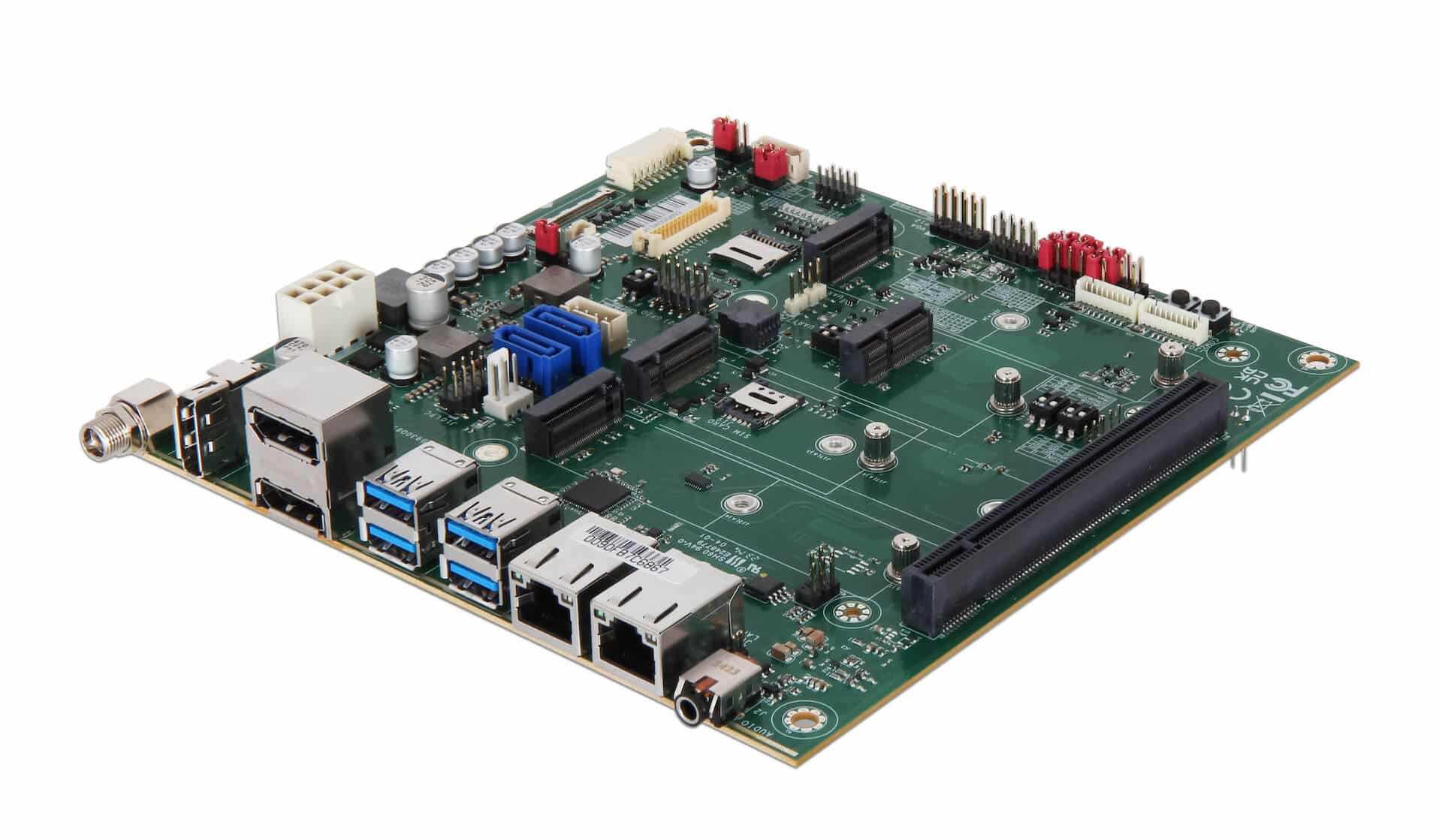

PCOM-C605R

Mini-ITX size carrier board for COM Express Type6 module

特點

  • Support COM Express Type6 Compact/Basic size modules
  • Mini-ITX size provides extra expansions slot, reversed side module mounting space for optimized passive cooling solution design
  • Supports USB 3.2 Gen2 (Type-A), SATA, PCIe Gen4, 2.5G RJ45, Displayport, VGA
  • Support wide temperature -40°C ~ 85°C
  • ATX 8pin 12v power input / DC Jack 12v power input

Description

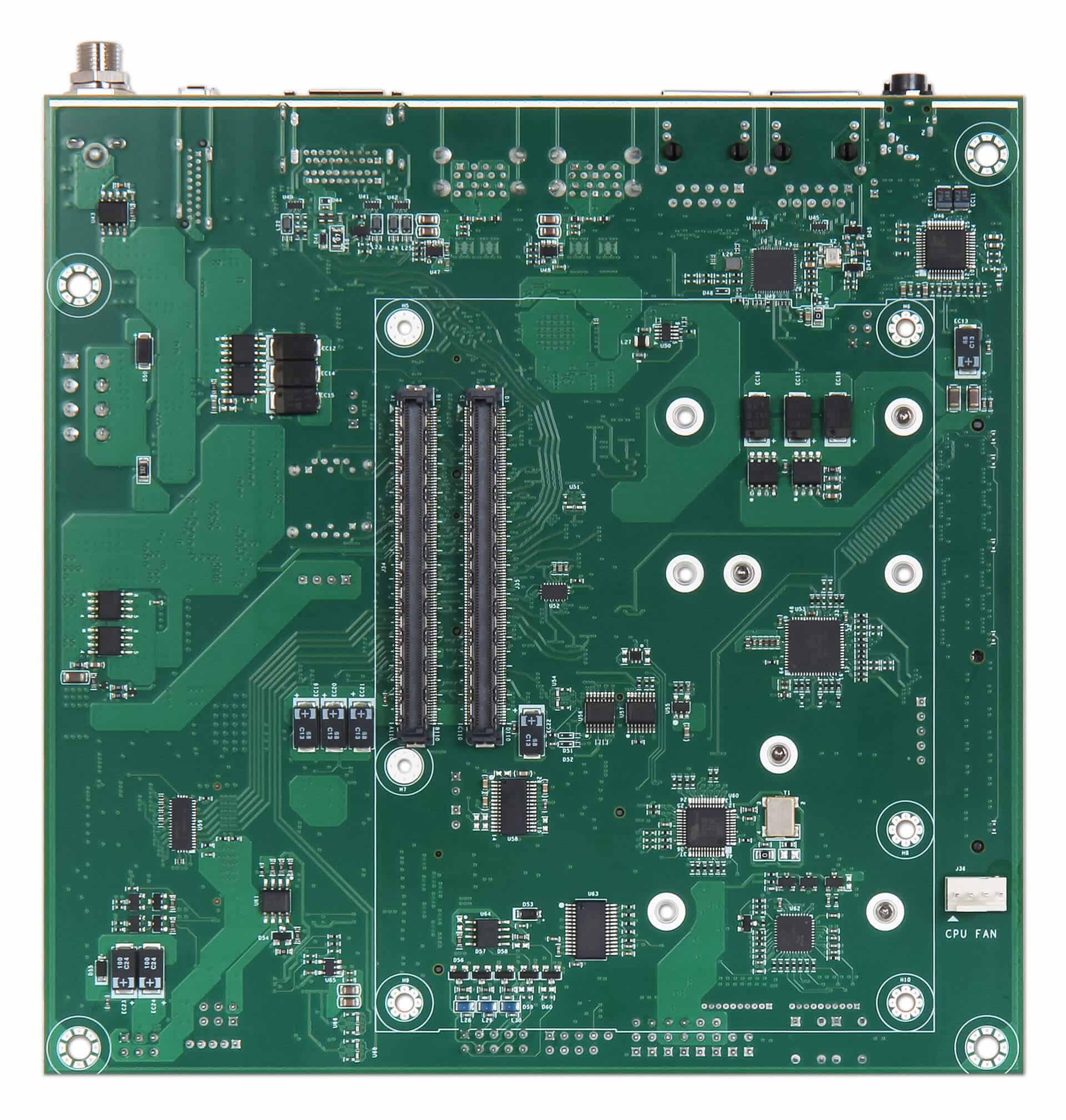

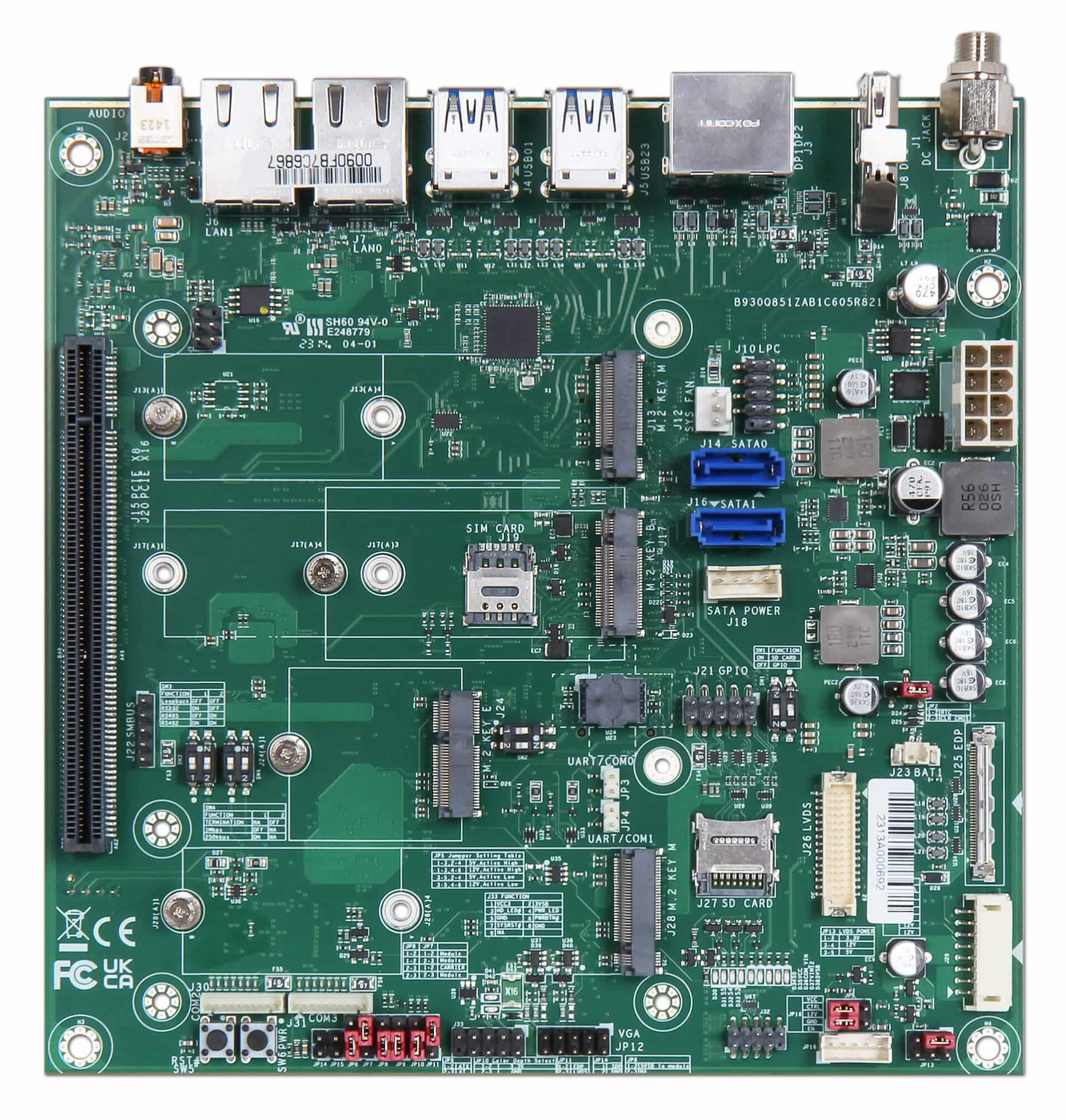

Portwell PCOM-C605R is a Mini-ITX size carrier board that supports reverse mounting of COM Express Type6 module. It follows COM Express Rev 3.1 standard, supporting multiple I/O interfaces, including DP display, VGA, PCIe, M.2, RJ45, USB 3.2(Type-A), SATA, UART and Audio jack.

PCOM-C605R suitable as a solution for compact size system, which offer an effective next-generation product upgrade path for solutions already using the previous PCOM-C605 based system products. For more product features, please contact your distributor or refer to the datasheet/user manual

Specification

Specifications
General
Form Factor Mini-ITX size (170mm x 170mm)
Supported Module COM Express Type6 , Compact/Basic size
General Function
  • RTC battery
  • Postcode display (by LPC expansion)
  • BIOS SPI Socket
  • Power BTN / Reset BTN
Audio codec Realtek ALC888s

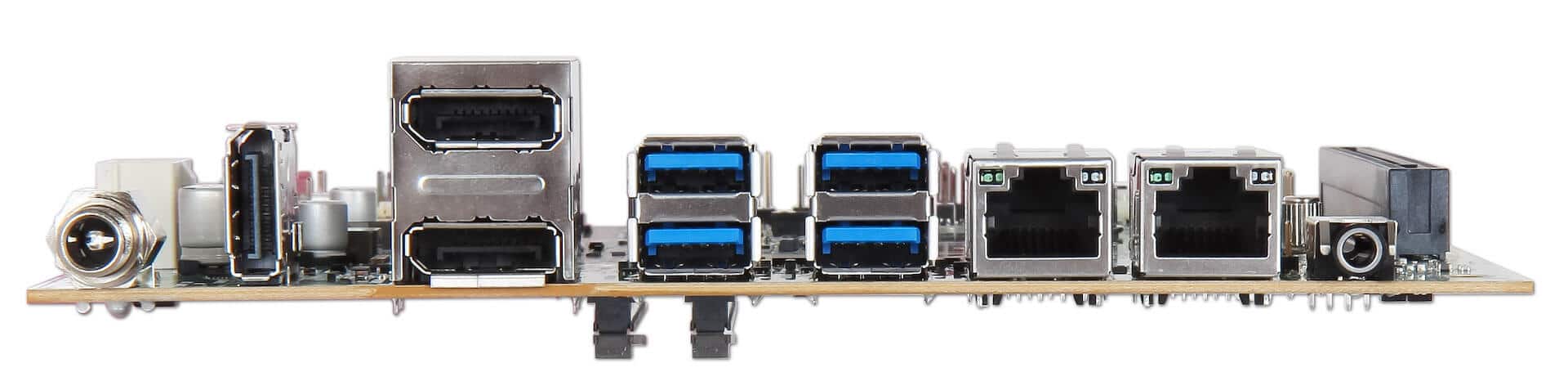

I/O Interface
SATA 2x SATA(standard type) , 2x M.2 socket share with PCIe
USB
  • 2x USB 3.2 Gen2 Type-A port (Gen2 or Gen1 depend on module)
  • 2x USB 3.2 Gen1 Type-A port (via USB Hub)
Ethernet 2x 2.5Gbe RJ45
PCI Express
  • 1x PCIe x16 slot (x8 signal)
  • 2x M.2 M key
  • 1x M.2 B key
  • 1x M.2 E key
Display

Interface source

Output options

DDI 3x DP
LVDS/eDP
  • 1x LVDS connector
  • 1x eDP connector
VGA 1x VGA header
Legacy I/O GPIO 8x GPIO header
I2C I2C header
SMBus SMBUS header
Serial Port
  • 2x UART header (module)
  • 2x COM port header (SuperI/O)
GP SPI N/A
Others
  • 1x Audio jack (4-pole CTIA)
  • 2x FAN (1x support PWM control)
  • 12v DC Jack
Mechanical & Environment
Dimension Mini-ITX 170mm x 170mm
Power DC IN ATX 8 pin
DC Jack
Storage Temperature -40°C to 85°C
Operation Temperature -40°C to 85°C
Certification TBD
MTBF TBD
Vibration TBD

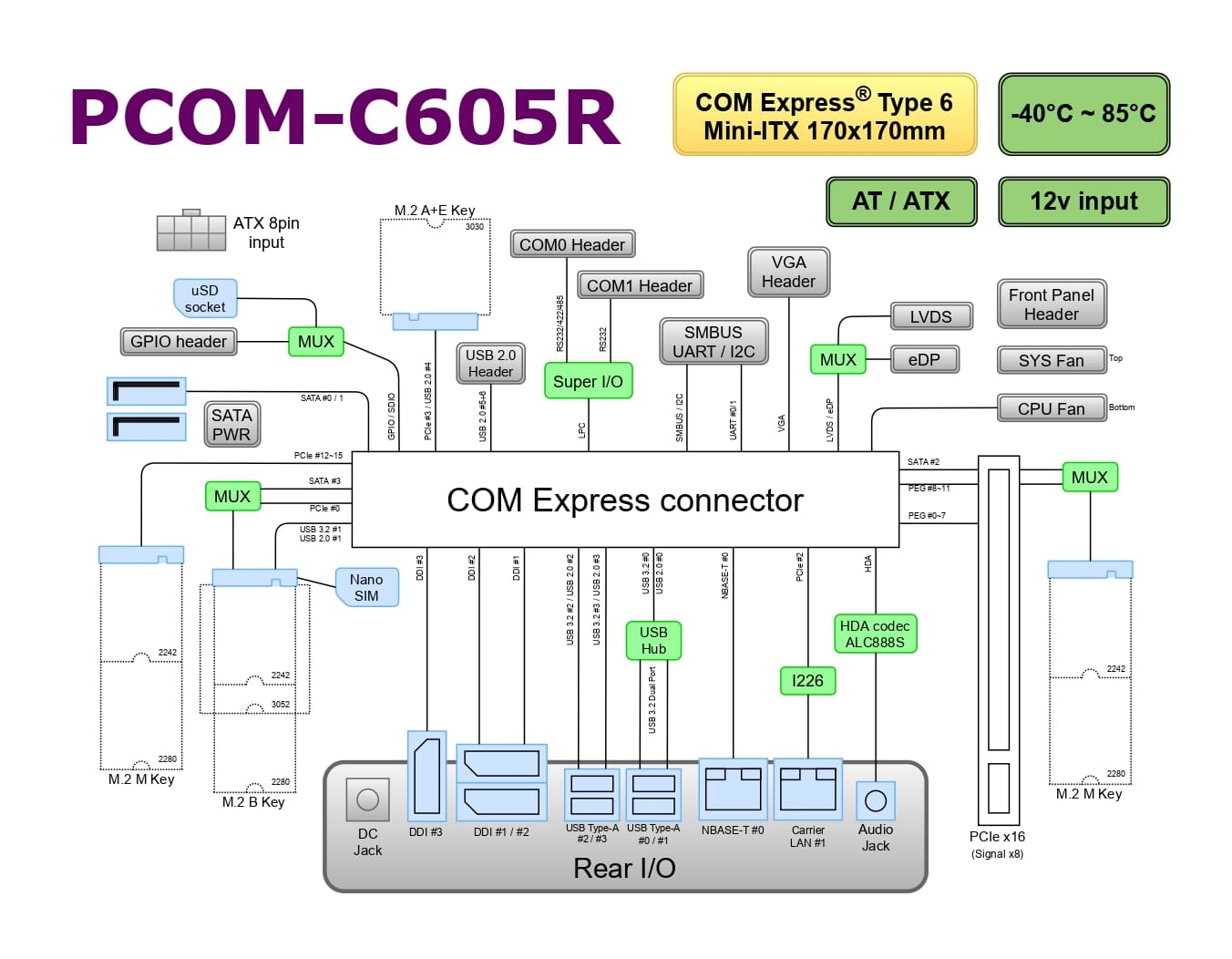

Block Diagram

採購指南

Ordering Guide
Product Ordering P/N Status
PCOM-C605R AB1-3P78 Available

Accessory

Accessory
Accessory Ordering P/N Status
COM port cable B786T840 Available
VGA cable B7864720 Available
SATA power cable B786G991 Available
