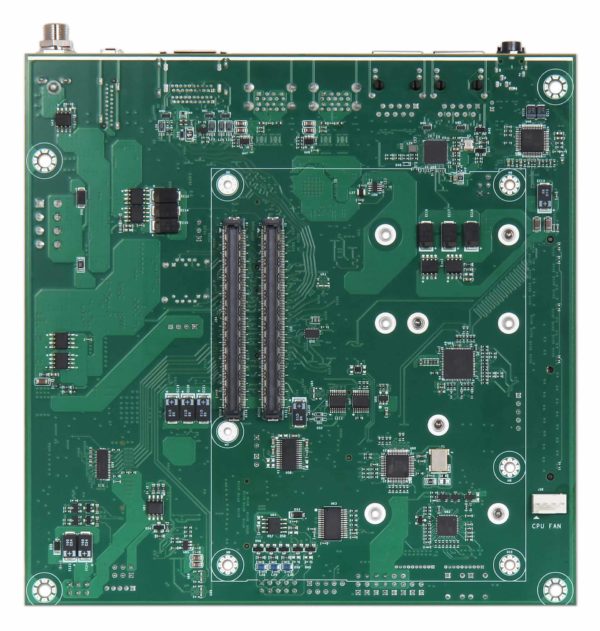

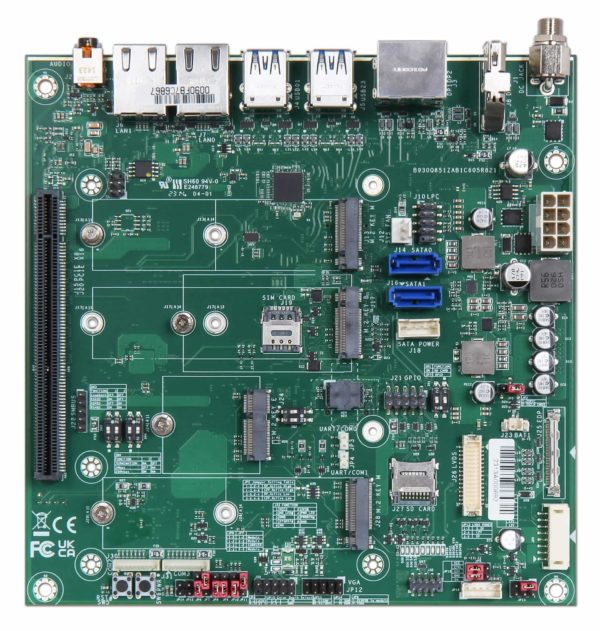

Portwell PCOM-C605R is a Mini-ITX size carrier board that supports reverse mounting of COM Express Type6 module. It follows COM Express Rev 3.1 standard, supporting multiple I/O interfaces, including DP display, VGA, PCIe, M.2, RJ45, USB 3.2(Type-A), SATA, UART and Audio jack.
PCOM-C605R suitable as a solution for compact size system, which offer an effective next-generation product upgrade path for solutions already using the previous PCOM-C605 based system products. For more product features, please contact your distributor or refer to the datasheet/user manual
| General | ||
| Form Factor | Mini-ITX size (170mm x 170mm) | |
| Supported Module | COM Express Type6 , Compact/Basic size | |
| General Function |
|
|
| Audio codec | Realtek ALC888s | |
| I/O Interface | ||
| SATA | 2x SATA(standard type) , 2x M.2 socket share with PCIe | |
| USB |
|
|
| Ethernet | 2x 2.5Gbe RJ45 | |
| PCI Express |
|
|
| Display |
Interface source |
Output options |
| DDI | 3x DP | |
| LVDS/eDP |
|
|
| VGA | 1x VGA header | |
| Legacy I/O | GPIO | 8x GPIO header |
| I2C | I2C header | |
| SMBus | SMBUS header | |
| Serial Port |
|
|
| GP SPI | N/A | |
| Others |
|
|
| Mechanical & Environment | ||
| Dimension | Mini-ITX 170mm x 170mm | |
| Power DC IN | ATX 8 pin DC Jack |
|
| Storage Temperature | -40°C to 85°C | |
| Operation Temperature | -40°C to 85°C | |
| Certification | TBD | |
| MTBF | TBD | |
| Vibration | TBD | |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-C605R-WT | AB1-3S09 | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| COM port cable | B786T840 | Available |
| VGA cable | B7864720 | Available |
| SATA power cable | B786G991 | Available |
