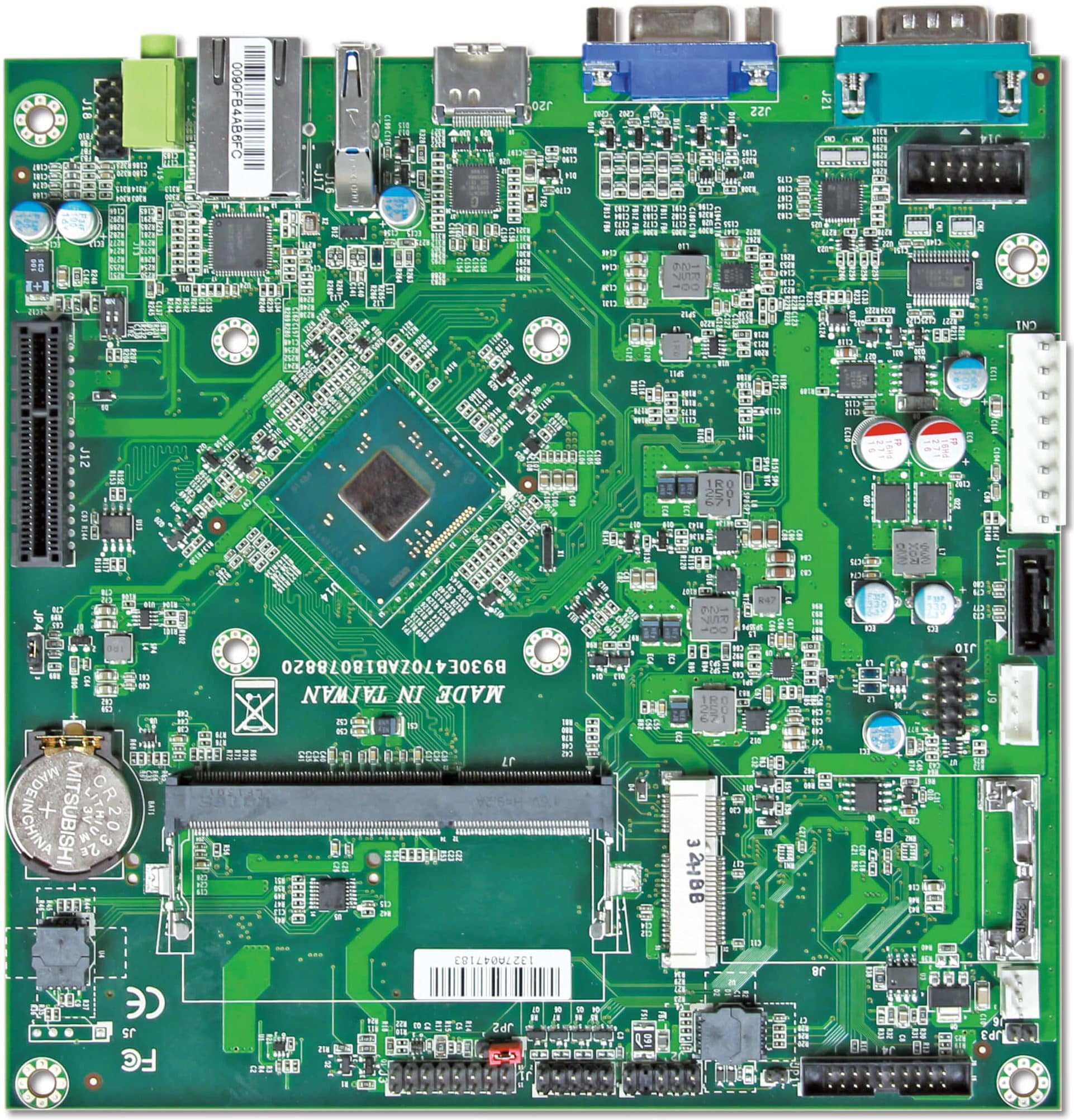

WADE-8078

Intel® Atom® E3800 SoC based Mini-ITX. Board with VGA, HDMI®, Gigabit Ethernet, Audio, USB 3.0, SATA and CFEX

特點

  • Latest Intel® Atom® embedded processor provides cost effective solutions with low power and quad core processor technology
  • Supports PCIe x4 Slot (with PCIe x2 Lanes)
  • Supports 1x DDR3L ECC 1066/1333 MT/s SDRAM, up to 4GB
  • Supports 1x USB 3.0 port
產品文件與下載

簡介

WADE-8078 is the first Portwell off-the-shelf Mini-ITX embedded board product based on the Intel® Atom™ processor E3800 product family with memory and PCI Express controller integrated to support one-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a series of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.

詳細規格

CPU Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W)
Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W)
Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W)
Format Mini-ITX
Chipset SoC (System-On-Chip)
DRAM Up to 4GB DDR3L ECC 1066/1333 SDRAM on one 204pin SODIMM
Graphic Controller Intel® HD Graphics 4600 supports DirectX11, OpenGL 4.0, OpenGL 3.2, Video decode hardware acceleration supports for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats
Display Interface VGA resolution up to 2560×1536@24bpp, HDMI® resolution up to 1920×1080@24bpp
Storage 1x SATA II, 1x CFEX, 1x Mini-PCIe
Network On board Intel I210AT
Expansion PCIe x4 slot (with PCIe x2 Lanes)
Serial Interface 1x RS232/424/485 Selectable port on rear I/O
USB 2x USB2.0 ports on board, 1x USB3.0 ports on rear I/O
Audio Realtek ALC892 supports 5.1 Channels, Audio Jack Line out on board
Miscellaneous 8bit congfigurable GPIO, controlled by embedded controller
Power from W ATX (support non-5V satdby)
Operating Temperature 0°C – 60°C
Storage Temperature -20~80˚C
Dimensions 170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W)

採購資訊

Ordering Guide
AB1-3A41 (R).WADE-8078- E3845
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I QC 1.9GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI®/GbE Lan/COM/Audio/USB
AB1-3A42 (R).WADE-8078- E3827
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I DC 1.75GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI®/GbE Lan/COM/Audio/USB
AB1-3A43 (R).WADE-8078- E3815
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I SC 1.46GHz processor) on Board .w/DDR3L SODIMM/VGA/HDMI®/GbE Lan/COM/Audio/USB

包裝列表

Packing List
One WADE-8078 Mini-ITX Main Board
One Passive Heat Spreader
One Installation CD
