APH-3070

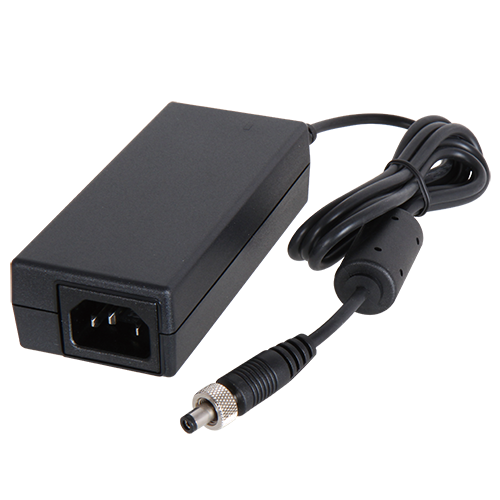

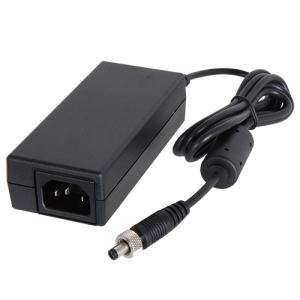

AC-DC Adapter 65W/12V Screw-Lock DC Plug

Features

  • Full range AC input 100V~240V
  • Efficiency: Meet DOE(VI) / COC(Tier2)
  • Built-in protection: OVP / OCP / SCP
    / OTP
  • No Load Power Consumption < 0.1W
  • DC plug with securing screw
AC Input Voltage 90V ~ 264V
DC Output Voltage 12V
Output Load 5.4A
Output Regulation 11.4V~12.6V
Efficiency >88%, 115V@60Hz, 230V@50Hz
MTBF 60,000 hrs@25°C
EMI & Safety Approval UL, cUL, TUV, CE, FCC, CB, CCC
Dimension 110(w) x 62(d) x 31.5(h) mm

Ordering Guide

Category Product P/N Status Description
System APH-3070 APH-3070 Available AC-DC Adapter 65W/12V Screw-Lock DC Plug
