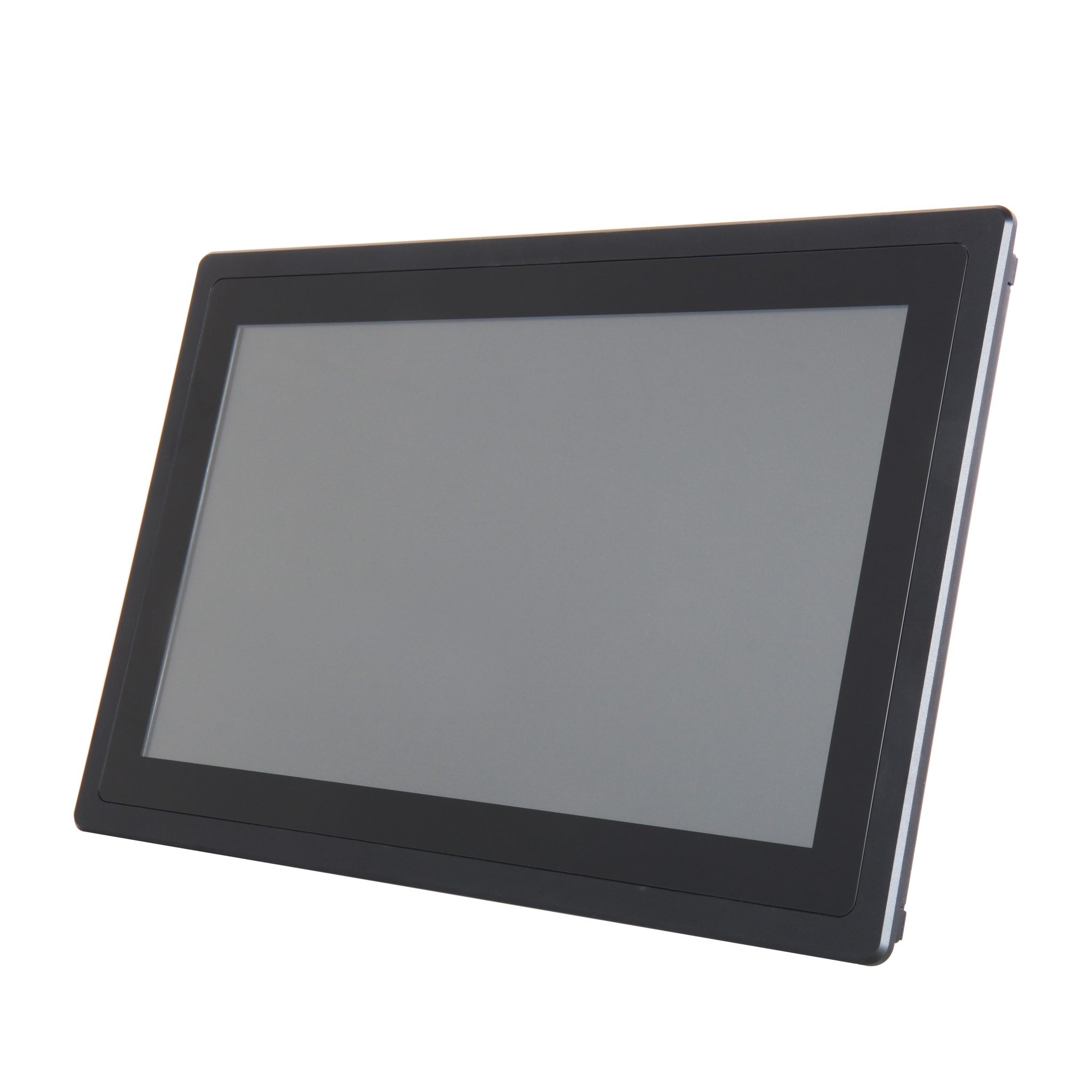

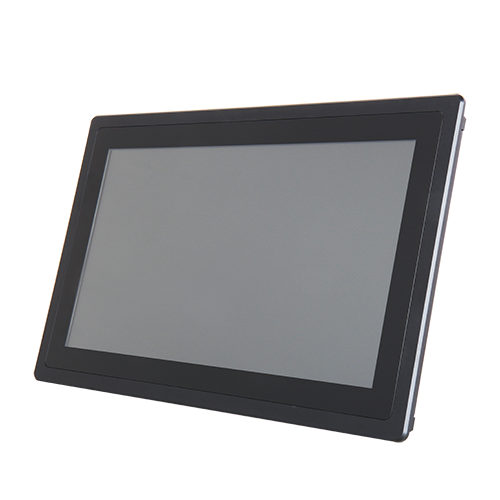

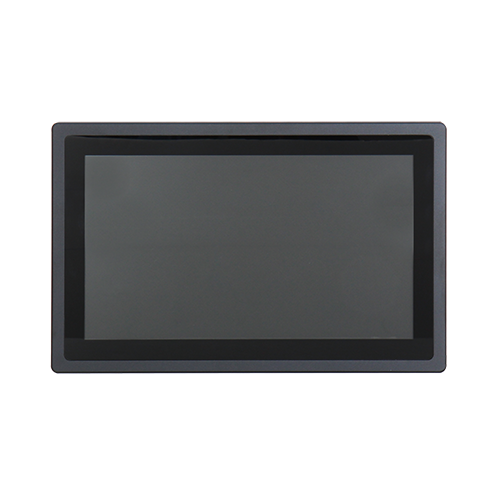

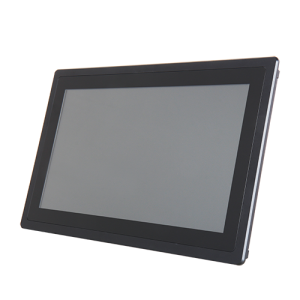

FUDA4-S1623

15.6″ P-CAPTouch PPC with Intel Atom® x7433RE SoC delivers efficient quad-core performance at 9W. Equipped with DDR5 up to 32GB, rich USB/HDMI®/DP I/O, M.2 storage, and flexible modular expansion.

Features

  • 15.6″ P-CAPTouch PPC with Intel Atom® Amston Lake x7433RE SoC (4C, 9W, 1.5 GHz)
  • 2x USB3.2, 1x USB type C with DP, 1x HDMI®, 1x LVDS
  • DDR5 4800 SO-DIMM up to 32GB
  • Onboard eMMC, M.2 2242/2280 M key socket, M.2 2230 E key socket
  • Various modularization I/O extension options
Display
LCD Size 15.6″
Resolution(WxH) WXSGA+ 1366×768 16:9
Brightness(cd/m²) 400
Contrast Ratio 800:1
Backlight LED type
Touch Screen Projected Capacitive Multi-Touch (10 points)
General
Processor Intel® Atom® x7433RE Processor
BIOS AMI uEFI BIOS
Memory Support up to 32GB DDR5 4800 MT/s on one SODIMM
Storage 1 x M.2 M Key Slot, 1 x eMMC on board
Watchdog Timer Programmable, time out period from 1 s to 255 s
Graphic Controller Intel® UHD Graphics
LVDS Single/Dual Channel 24-bit

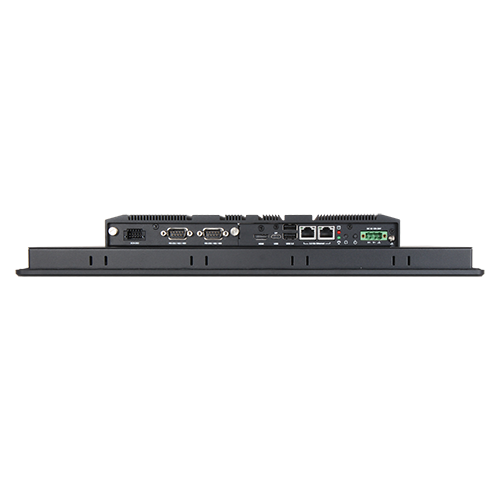

Rear I/O
Ethernet 2 x 2.5 Gbe LAN w/ Intel WGI226IT
USB 2 x USB 3.2 Gen2 Type A
1 x Type C with DP Alt mode
Display 1 x HDMI® 2.0b
Other Power Button, Recovery Button, Power LED, Storage LED, 4x Antenna holes
Expansion Option 1 2x RS-232/422/485
Option 2 2x RS-232/422/485, 1x 2ch DIO
Option 3 2x RS-232/422/485, 1x RS-232
Option 4 2x RS-232/422/485, 2x USB 2.0
Expansion I/O
M.2 1 x M Key w/ SATA III
1 x E Key w/ PCIe Gen3 x1
Security TPM 2.0
ME/Environment
Dimension(WxDxH) 415 x 56.6 x 265 mm
Weight 4.8 kg
Power Supply Terminal Block 12~24V
Mounting Panel Mount, VESA Mount (75*75), VESA Mount (100*100), Desktop
Vibration 1G 10~500Hz with eMMC/SSD (IEC 60068-2-64)
Shock 15G 11m sec with SSD (IEC 60068-2-27)
IP Protection Front Bezel IP65 ,Whole enclosure: IP20
Operating Temperature -25 ~ 65 °C (-13.0 ~ 149.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Certification CE/FCC/UKCA Class A, LVD, EN-61000-2, EN-61000-4
OS Windows 10/11, Linux
Portwell Special Feature PET

Ordering Guide

Category Product P/N Status Description
Panel PC FUDA4-S1623 AL6-3321 Available (R).ATO.FUDA4-S1623-0000-00.15.6″ Intel Amston Lake X7433RE 9W P-CAP Touch Panel PC with Black Aluminum Bezel and Black Chassis
