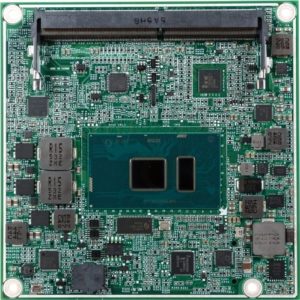

PCOM-B644VG

Intel^®Kaby Lake‐U Core™ i7/i5/i3 processor based on Type VI Compact‐COM Express 2.0 module with DDR4 SDRAM on SO‐DIMM slots, VGA, LVDS, Display‐port, Gigabit Ethernet, PCIE, SATA, USB, and OTG

Features

Kaby Lake-U is the 7^th Generation Intel^®Core™ Processor with 14nm and brand new architecture provide more performance
Seek for low profile solution but with high performance and low power
Support faster I/O interfaces on Five PCI Express Gen3 lanes (four x 1 can be configured to one x4 lane)

PCOM-B644VG brings three important factors, DDR4 memory support, Gen3 PCIe support, and 30% faster graphic performance. The Gen3 PCIe support provides faster PCIe speed so that the performance of PCIe expansion card will be better. It is crucial for Networking and Medical related applications. The enhanced graphic performance brings 4K support. The OTG support gives customer more flexibilities on developing new applications in different usages.

Specifications

Specifications
Form Factor (mm)	Compact (95 x 95mm)
Type	Type 6
CPU/Clock/Cache	Intel^®7^th Genera. on Core™ ULT CPU
Chipset	SoC
Memory	DDR4‐2133MT/s Non‐ECC 2 Memory Channel
USB	3 x USB 3.0 7 x USB 2.0 1 x USB 3.0 / USB 2.0 / OTG
PCI Express	1 x PCIe x4 (PEG) 1 x PCIe x1 1 x PCIe x4 / 4 x PCIe x1
Ethernet	Intel^®I219LM

Ordering Guide

Ordering Guide
TBD	PCOM-B644VG.TYPE VI.Skylake-U.Compact Form Factor.Com Express Module.DDR4
