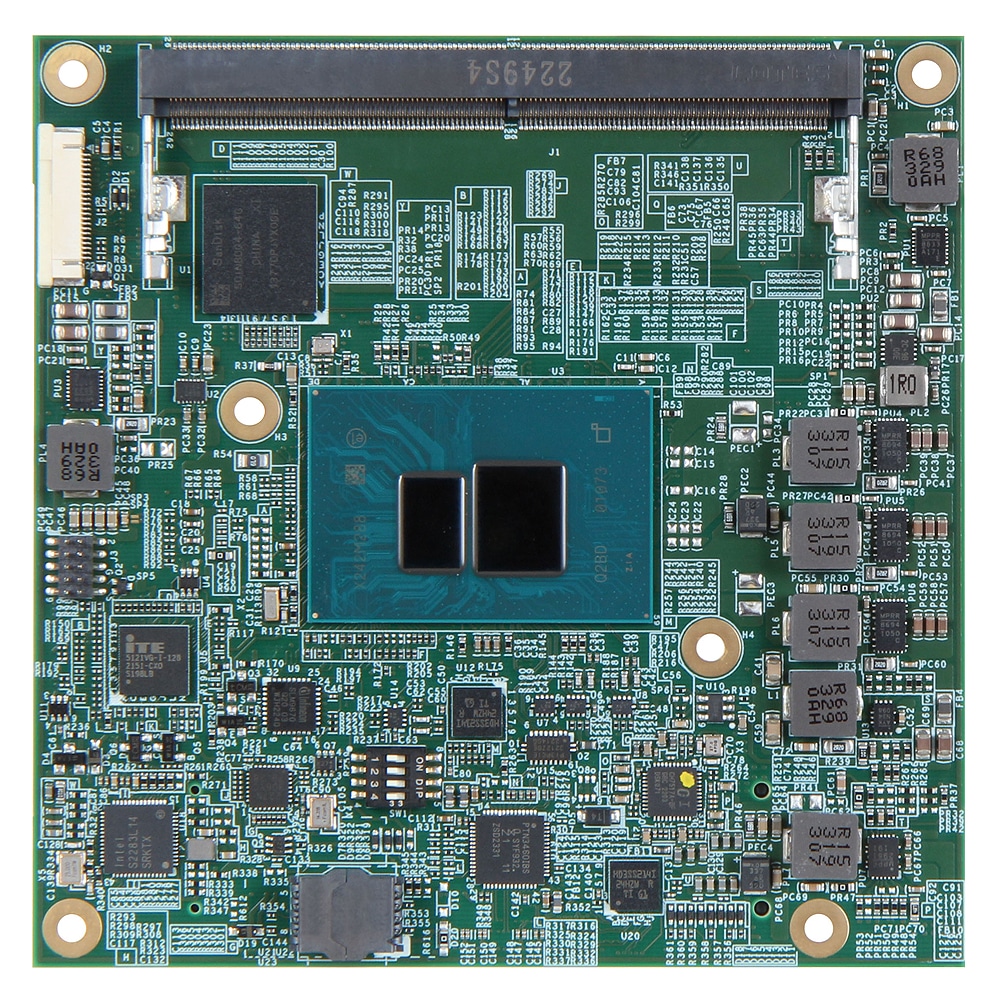

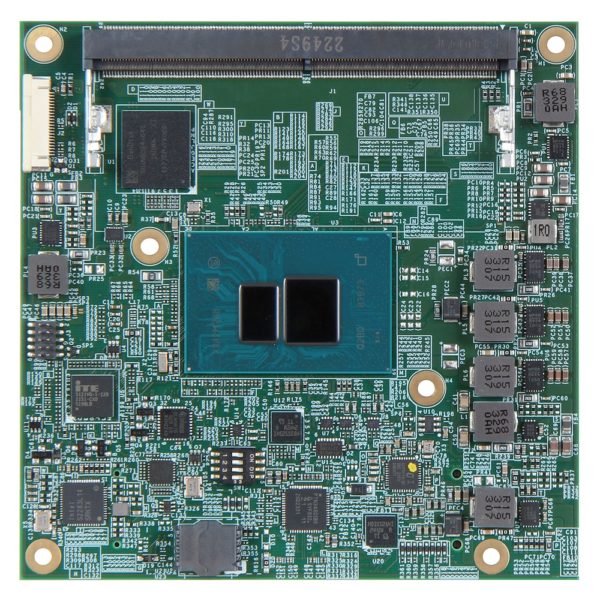

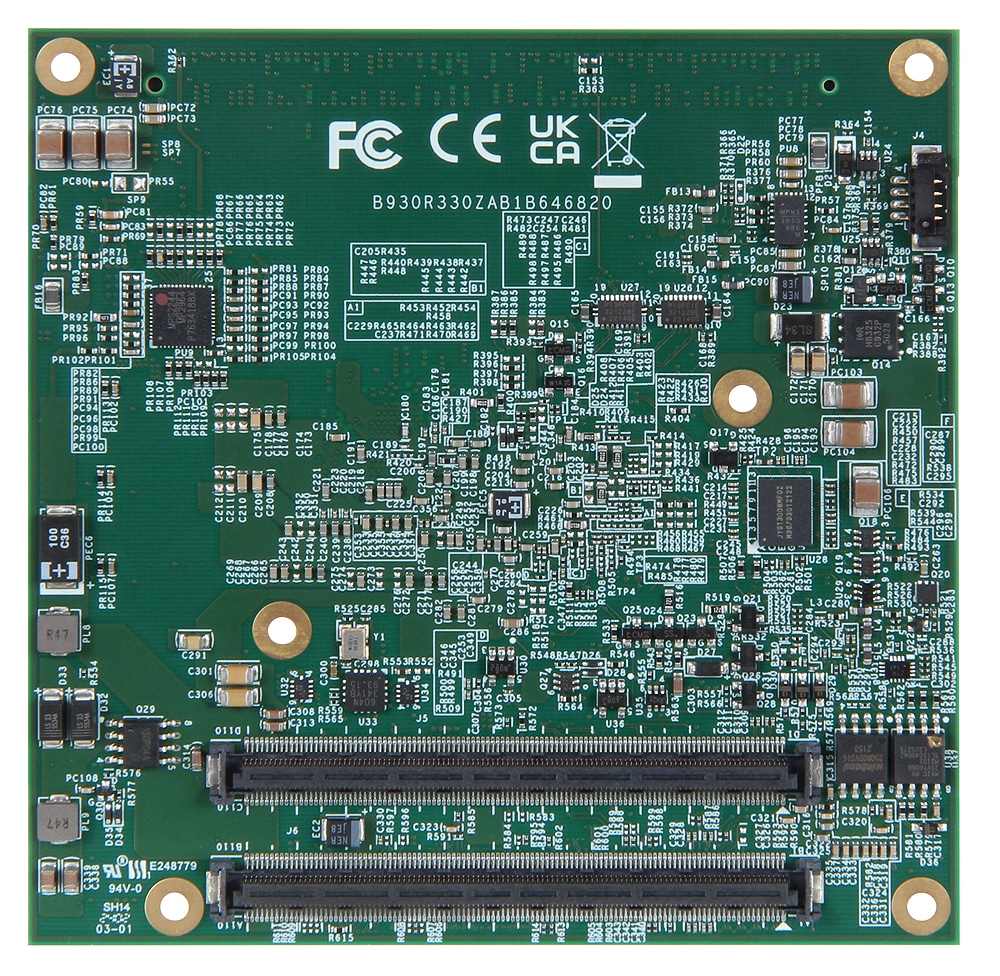

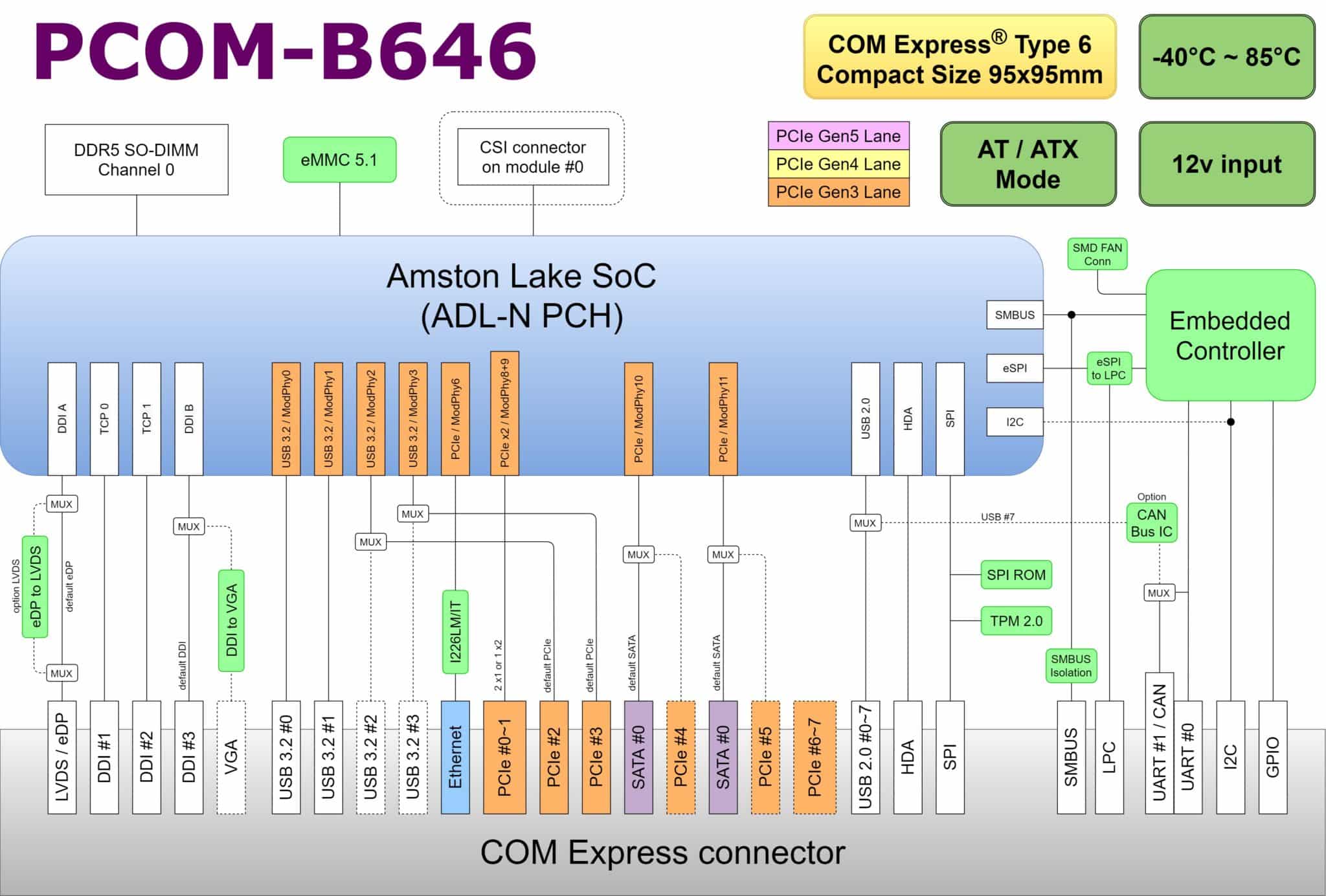

PCOM-B646 is COM Express® module based on Intel Atom® x7000E/RE Series Processor. It is compatible with COM Express Rev3.1 standard. The platform adopt Intel® 7 lithography and VNNI instruction set, offers advance computing power up to 15W thermal and embedded use condition for wide range application. It use AVX2 and VNNI to fulfill AI inference performance improvement and upgraded to eight cores for high computing efficiency in the Atom product line.PCOM-B646 supports PCIe Gen3 lanes, and 1x Non-ECC DDR5 SO-DIMM, which is suit for mission critical use conditions and AI edge computing. This module also provides (up to) 6x PCIe Gen3 x1 lanes, (up to)4x USB 3.2 Gen 2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications.
| General | ||||||||
| Model Name | PCOM-B646 | |||||||
|---|---|---|---|---|---|---|---|---|
| Form Factor | COM Express Type6 Compact Size (95 X 95mm) | |||||||
| CPU Series | PC Client N series | Embedded E Series | Industrial RE Series | |||||
| Core | i3-N305 | x7211E | x7213E | x7425E | x7211RE | x7213RE | x7433RE | x7835RE |
| 8 | 2 | 2 | 4 | 2 | 2 | 4 | 8 | |
| Frequency | 1.0/1.8 GHz | 1.0 GHz | 1.7 GHz | 1.5 GHz | 1.0 GHz | 2.0 GHz | 1.5 GHz | 1.3 GHz |
| Turbo Frequency | 3.8 GHz | 3.2 GHz | 3.2 GHz | 3.4 GHz | 3.2 GHz | 3.4 GHz | 3.4 GHz | 3.6 GHz |
| Intel® Smart Cache | 6 MB | |||||||
| Intel® Gfx EU | 32EU | 16EU | 16EU | 24EU | 16EU | 16EU | 32EU | 32EU |
| Graphics Max Freq. | 1.25 GHz | 1.0 GHz | 1.0 GHz | 1.0 GHz | 800 MHz | 800 MHz | 800 MHz | 1.0 GHz |
| Processor TDP | 9W/15W | 6W | 10W | 12W | 6W | 9W | 9W | 12W |
| Support Temperature | 0°C to 60°C | -40°C~85°C | ||||||
| PCH | SoC | |||||||
| Memory Type/Speed | DDR5 SO-DIMM up to 48GB 4800MT/s | |||||||
| ECC Memory Support | Non-ECC SO-DIMM | |||||||
| I/O Interface | |||
|---|---|---|---|
| SATA | 2x SATA III share with PCIe lane | ||
| USB |
|
||
| Ethernet | Intel® I226 series | ||
| Serial I/O | GPIO | 8 bit GPIO (default 4 input/4 output) | |
| I2C | Baud Rate : 400KHz | ||
| SMBus | Baud Rate : 100KHz | ||
| UART | TX/RX signal only | ||
| PCIe Express | Up to 6x Gen 3.0 x1 (2 lanes share with SATA / 2 lanes share with USB) | ||
| Display | Module display interface | Carrier output options | Resolution |
| eDP / LVDS (default eDP) | eDP eDP up to HBR3 | 3840 x 2160@120Hz | |
| LVDS (24bit, dual channel) | 1920 x 1200@60Hz | ||
| DDI | DP up to HBR3 | 3840 x 2160@120Hz | |
| HDMI 2.1 | 3840 x 2160@120Hz | ||
| VGA | VGA | 1920 x 1200@60Hz | |
| Security | TPM 2.0 | ||
| MECHANICAL & ENVIRONMENT | |
| Dimension | 95 x 95mm |
|---|---|
| Power DC IN |
|
| Storage Temperature | -40°C to 85°C |
| Operating Temperature |
|
| Certification | Contact us |
| MTBF | TBD |
| Vibration | TBD |
| OS |
|
| I/O Interface | |||
|---|---|---|---|
| SATA | 2x SATA III (share with PCIe lane) | ||
| USB | Up to 4x USB 3.2 Gen2 (2 lanes share with PCIe) 8x USB 2.0 |
||
| Ethernet | Intel® I226 series | ||
| Serial I/O | GPIO | 8 bit GPIO (default 4 input / 4 output) | |
| I²C | Baud Rate : 400KHz | ||
| SMBus | Baud Rate : 100KHz | ||
| UART | TX/RX signal only | ||
| PCI Express | Up to 6x Gen 3.0 x1 (2 lanes share with SATA / 2 lanes share with USB) | ||
| Display | Module display interface | Carrier output options | Resolution |
| eDP / LVDS (default eDP) | eDP up to HBR3 | 3840×2160 @120Hz | |
| LVDS (24bit, dual channel) | 1920×1200 @60Hz | ||
| DDI | DP up to HBR3 | 3840×2160 @120Hz | |
| HDMI 2.1 | 3840×2160 @120Hz | ||
| VGA | VGA | 1920×1200 @60Hz | |
| Security | TPM 2.0 | ||
| Mechanical & Environment | |
|---|---|
| Dimension | 95 x 95mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 60°C -40°C to 85°C (Industrial SKU) |
| Certification | Contact us |
| MTBF | TBD |
| Vibration | TBD |
| OS | Windows 10/11 Ubuntu |
| Ordering Guide | ||
|---|---|---|
| Product | Ordering P/N | Status |
| PCOM-B646-N305-256G | AB1-3S21 | Available |
| PCOM-B646-x7211E-32G | AB1-3T03 | Available |
| PCOM-B646-x7213E-32G | AB1-3T04 | Available |
| PCOM-B646-x7425E-64G | AB1-3S22 | Available |
| PCOM-B646-x7211RE-32G | AB1-3T05 | Available |
| PCOM-B646-x7213RE-32G | AB1-3T06 | Available |
| PCOM-B646-x7433RE-64G | AB1-3S86 | Available |
| PCOM-B646-x7835RE-256G | AB1-3S85 | Available |
| Accessory | ||
|---|---|---|
| Accessory | Ordering P/N | Status |
| Cooler (Copper) | B9972370 | Available |
| Cooler (Aluminum) | B9972380 | Available |
| Heatsink (Copper) | B830C810 | Available |
| Heatsink (Aluminum) | B830C840 | Available |
| Heatspreader (Copper) | B830C820 | Available |
| Heatspreader (Aluminum) | B830C830 | Available |
| PCOM-C605R Mini-ITX Carrier | AB1-3P78 | Available |
| PCOM-C60B ATX Evaluation Carrier | AB1-3G22 | Available |
