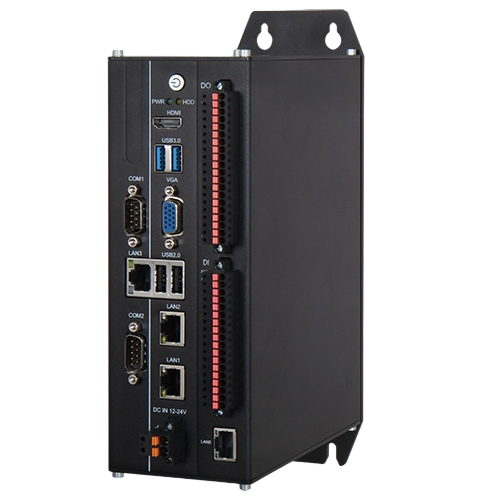

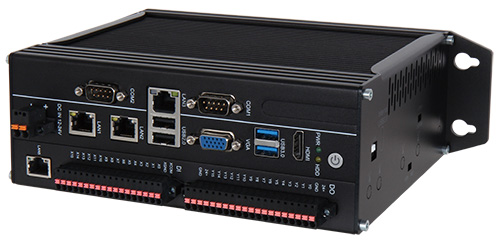

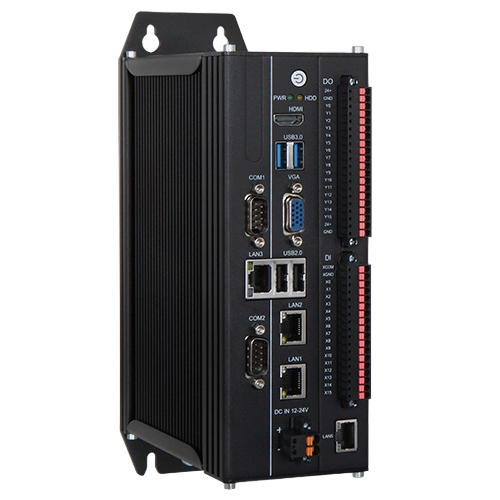

WEBS-89I1

Embedded Rugged Fan-less System with Intel Celeron® J6412 SoC, 2x PoE LAN and 16x DI + 16x DO support

Features

  • Fanless platform to support wide operating temperature -20 ~ 60°C with Intel® Celeron® J6412 SoC
  • 1x SODIMM DDR4-2400MHz up to 32GB
  • 3x RJ45 GbE Ethernet ports including 2x PoE support
  • 1x RS-232 and 1x RS-232/485 selectable by switch
  • 1x mini PCIe for Wi-Fi/4G options
  • Support 16x DI NPN/PNP and 16x DO NPN/PNP with Imax. 500mA

Specification

I/O Interface

External I/O
Serial Port
  • 1x RS-232/485 port (selectable via switch)
  • 1x RS-232
Display
  • 1x HDMI (3840×2160@60Hz)
  • 1x VGA (1920×1080@60Hz)
USB
  • 2x USB 3.0 ports
  • 2x USB 2.0 ports
  • 1x internal USB 2.0 Type A on-board
Ethernet
  • 2x RJ45 PoE GbE connectors (Intel)
  • 1x RJ45 connector (Intel)
DIDO
  • 16x DI NPN/PNP
  • 16x DO NPN/PNP, Imax. 500mA
Power Supply Unit
Power Input DC 12~24V input, max. 90W
