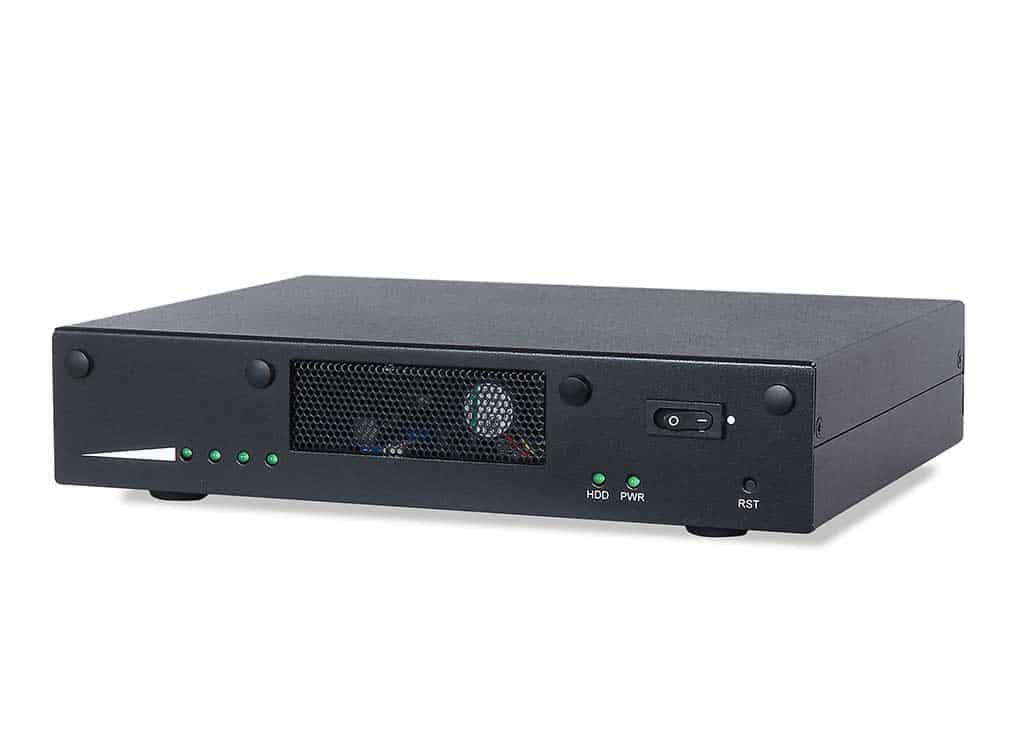

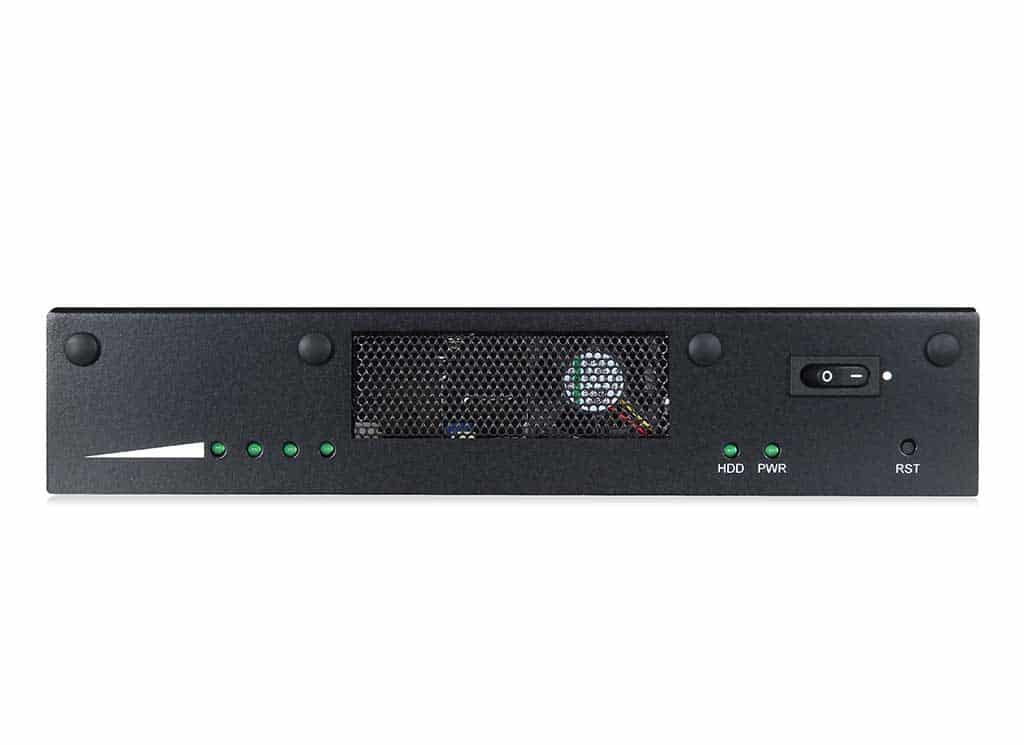

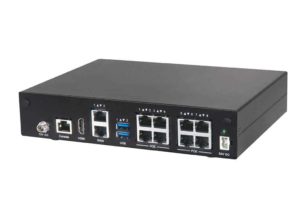

ANS-2121/41/42P

Compact System with Intel Atom® E3900 series for SD-WAN solution

OVERVIEW

ANS-2121/41/42 series builds on Intel Atom® processor E3900 family with up to four CPU cores. ANS series is a compact system with up to 10x GbE ports and PoE+ support, it is suitable for SDN (SD-WAN) application with 5G and IoT devices deployment.

FEATURES

  • Intel Atom® x5-E3940(4C)/ E3930(2C) Processor (Apollo Lake)
  • 2x GbE RJ45, 8x GbE RJ45 (with PoE+ support by SKU)
  • 1x RJ45 Console, 1x HDMI®, 2x USB3.0
  • 1x DDR3L 1866/1600/1333 MT/s ECC SO-DIMM up to 8GB
  • 1x eMMC 16GB(on-board), 1x TPM2.0 (on-board)
  • 1x Mini-PCIe(PCIe/ USB2.0), 1x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATA III, 2x micro SIM
  • Design ready for 5G and WiFi 6 (802.11ax)
  • Compact design 2 in 1U rackmount

SPECIFICATION

Model Name ANS-2121 ANS-2141 ANS-2141P ANS-2142 ANS-2142P
System
Processor Intel Atom® E3930(2C) Intel Atom® E3940(4C)
BIOS AMI
Memory 1 x DDR3L 1866/1600/1333 MT/s ECC SO-DIMM up to 8GB
Ethernet 6x GbE RJ45 RTL8111H 10x GbE RJ45 RTL8111H
Expansion 1 x Half-size Mini-PCIe slot with PCIe and USB2.0 signals
1 x M.2 Key-B slot with PCIe and USB3.0 signals
2 x SIM slot
Security TPM 2.0
Storage 1 x eMMC 16GB on-board
1 x SATA III port for 2.5″ HDD/SSD or SATADOM

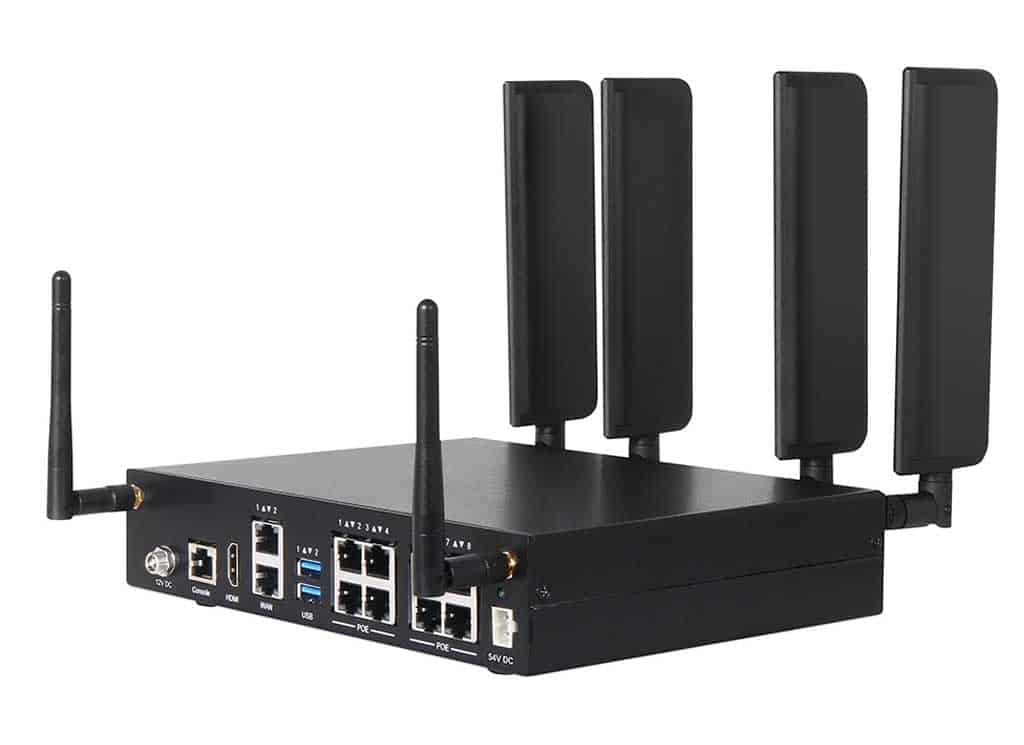

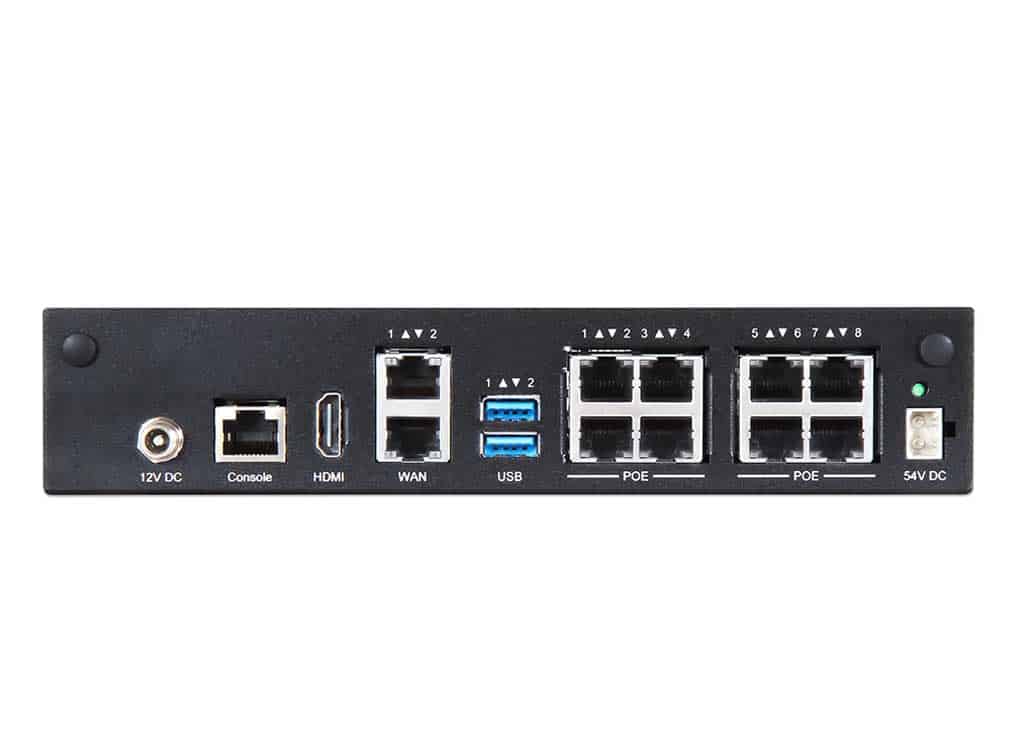

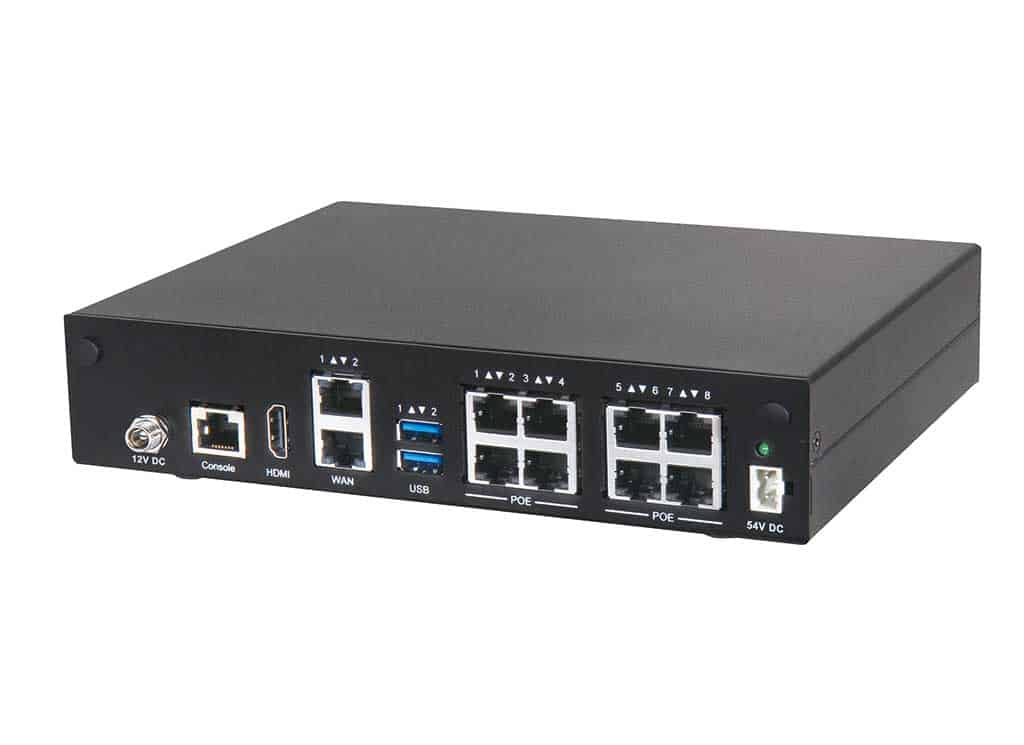

I/O Interface
Console 1 x RJ45
USB 2 x USB 3.0
Display 1 x HDMI®, resolutiion up to 4Kx2K@60Hz
Ethernet 6 x RJ45 GbE 10 x RJ45 GbE
PoE+ (Optional) 4 x RJ45 GbE 8 x RJ45 GbE

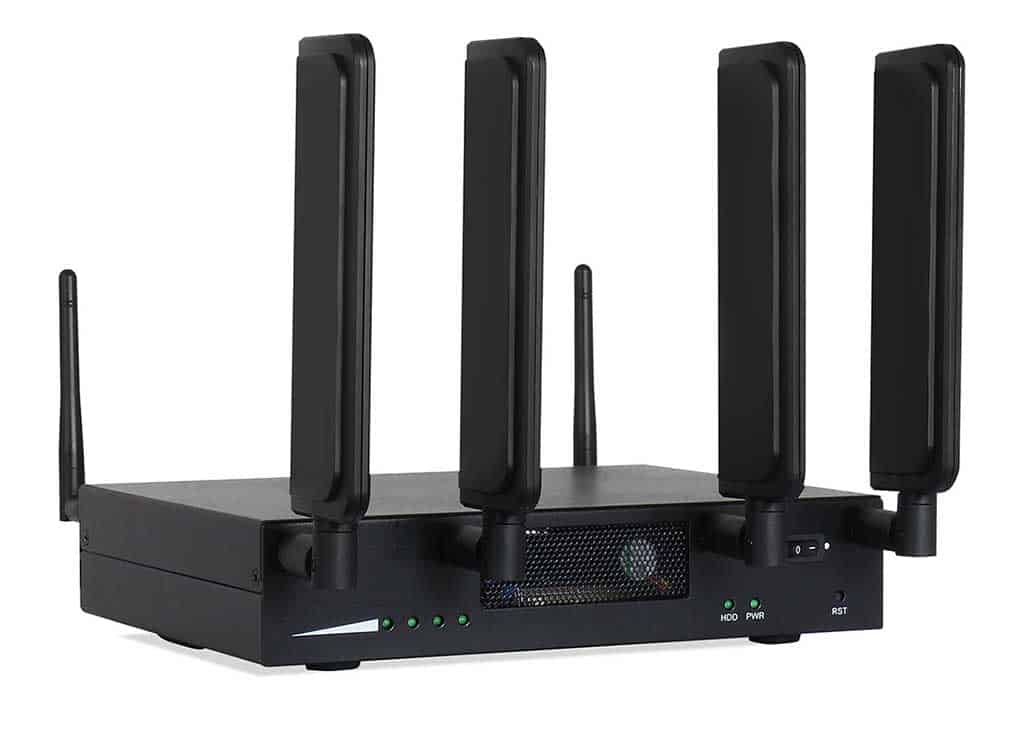

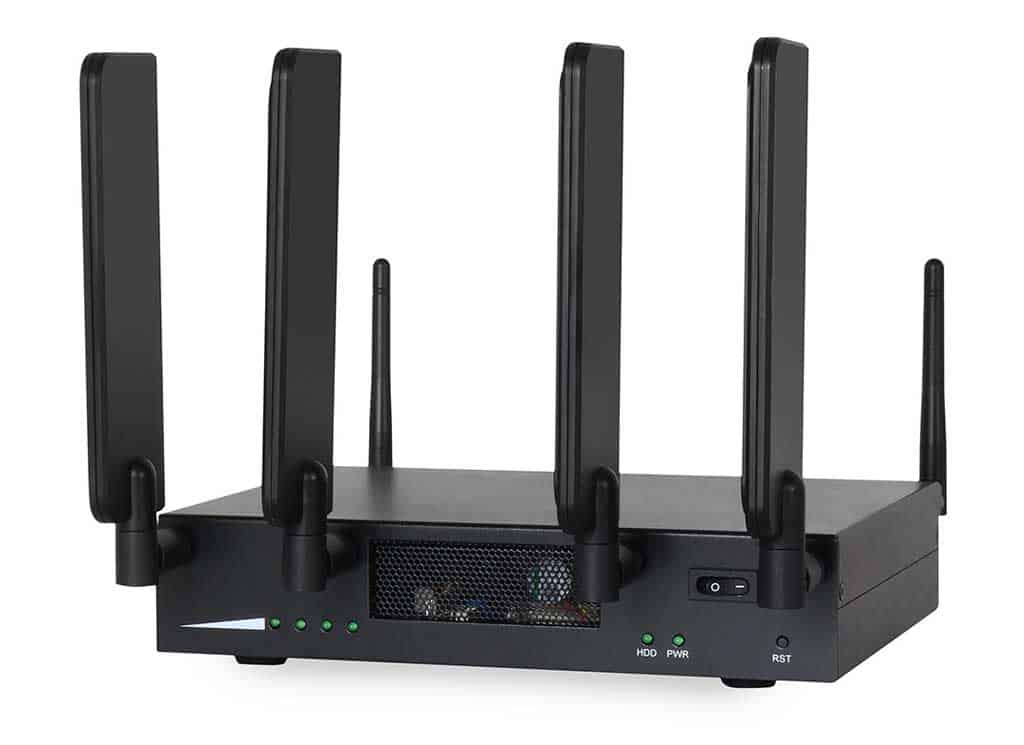

Antenna 6 x SMA Antenna holes for WiFi or LTE/5G module
Mechanical
Dimension 217 (W) x 168 (D) x 44 (H) mm
Weight 3.5Kg
System 40W Power Adapter, 110-220V AC input, 12V DC output
PoE+ 270W Power Adapter, 90-264V AC input, 54V DC output (PoE+ Model only)
Environment
OS Temp. 0°C ~ 40°C, 10 ~ 90% RH
Storage Temp. -10°C ~ 70°C, 10 ~ 95% RH@55°C
Certification CE/FCC Class A

ORDERING GUIDE

AS1-3311 (R). ANS-2121. E3930 2-core. 16GB eMMC, 4x GbE LAN, 2x GbE WAN
AS1-3310 (R). ANS-2141. E3930 2-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN
AS1-3309 (R). ANS-2141P. E3930 2-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN, PoE+ (PoE Adapter is required)
AS1-3327 (R). ANS-2122. E3940 2-Core. 16GB eMMC, 4xGbE LAN, 2xGbE WAN
AS1-3308 (R). ANS-2142. E3940 4-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN
AS1-3307 (R). ANS-2142P. E3940 4-core. 16GB eMMC, 8x GbE LAN, 2x GbE WAN, PoE+ (PoE Adapter is required)
