ANS-7A44E

Fanless Desktop Platform with AMD V3000 V3C18I processor
and six 2.5GbE plus two 10GbE Ports for SD-WAN Solution

OVERVIEW

The ANS-7A44E, powered by the AMD V3000 processor with up to eight cores and sixteen threads, is a compact system featuring 2x 10GbE SFP+ and 6x 2.5GbE ports with 2-pair bypass function. It is ideal for SDN (SD-WAN) applications and supports 5G and WiFi 6 deployments.

FEATURES

  • Fanless Desktop with wide-range operating temperature
  • AMD V3C18I processor series with 8 cores and 16 threads
  • 2x DDR5 SO-DIMM 4800MT/s Memory Up to 64GB
  • 2x M.2 Key-M 2242/2280 slots
  • 6x 2.5GbE RJ45 with 2-pair bypass and 2x 10GbE SFP+
  • 2x M.2 Key-B, 3042/3052 with 2x Micro SIM + 1x M.2 Key A-E 2230/3042 (PCIe + USB 2.0)

DOWNLOAD

SPECIFICATION



Specification
Model Name ANS-7A44E
General
Processor AMD V3000 V3C18I processors
BIOS AMI BIOS
Memory 2x DDR5 SO-DIMM up to 64GB
Storage
  • 1x M.2 Key M 2242/2280 Slot (PCIe x4)
  • 1x M.2 Key M 2242/2280 Slot (PCIe x4 or SATA)
Expansion
  • 2x M.2 Key-B 3042/3052 slot with 2x Micro SIM
  • 1x M.2 Key A-E 2230/3042 slot with PCIe and USB 2.0 signals
Security TPM 2.0

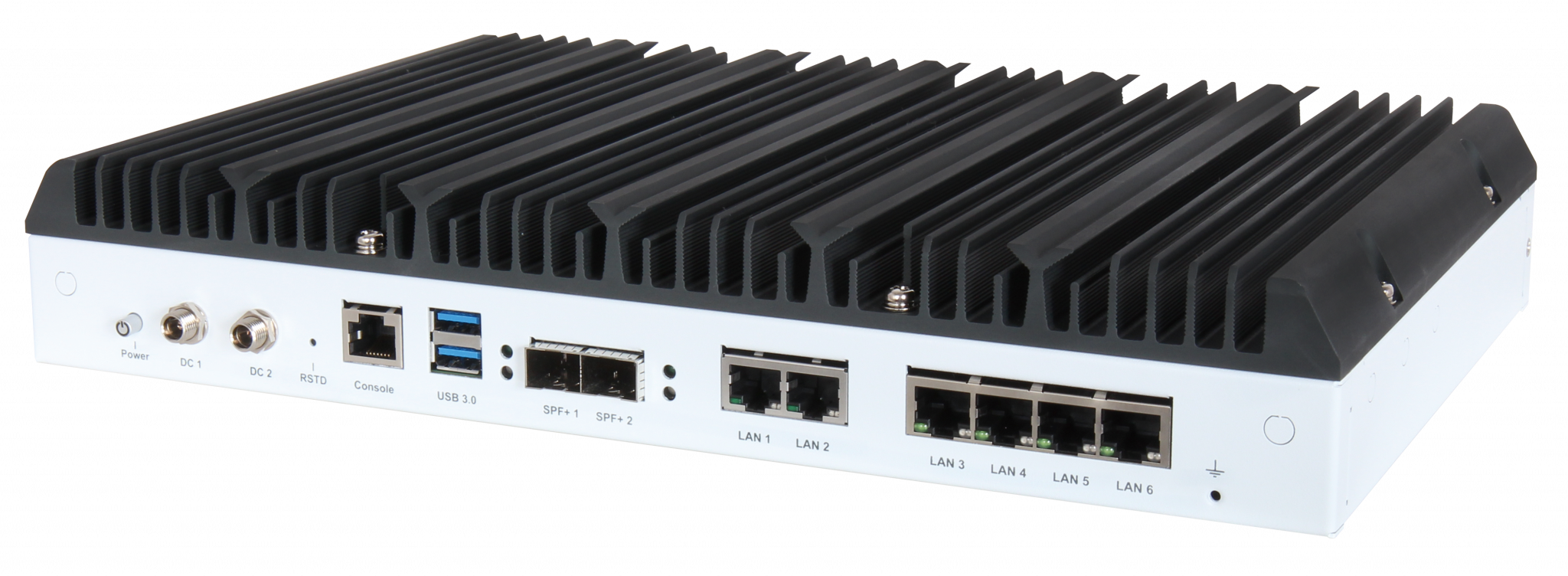

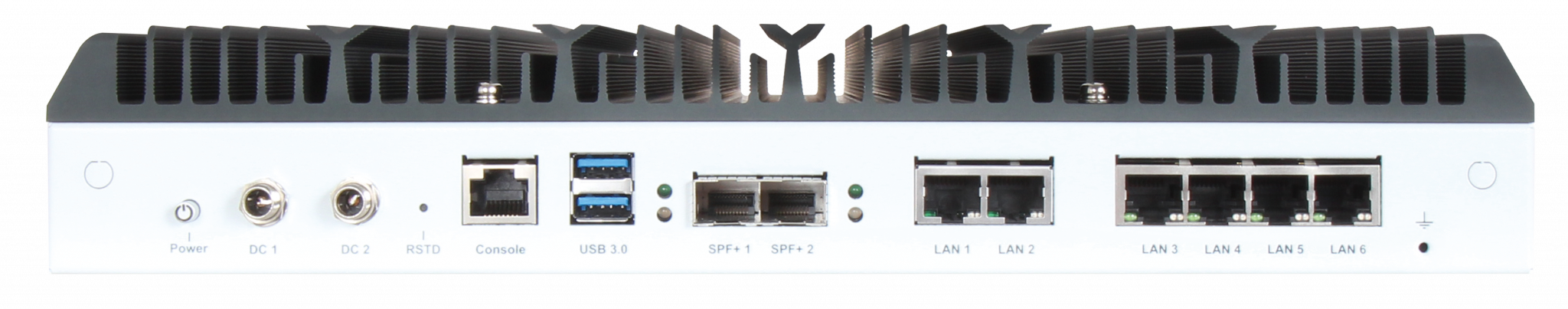

External I/O
Console 1x RJ45 Console
USB 2x USB 3.0
Ethernet
  • 6x 2.5GbE RJ45 (Intel® I226) and 2x 10GbE SFP+
  • Two pairs of LAN bypass
Power Adapter
System Dual 12VDC outputs with 65W Power Adapter, 110-220V AC input
Mechanical
Dimension (W x D x H) 310 x 205 x 55 mm
Mounting Desktop
Environmental
Operating Temperature Temperature: -40 – 70°C (-40 ~ 122°F)
Storage Temperature Temperature: -40 – 70°C (40 – 158°F)
Relative Humidity Humidity: 10 – 90% RH, non-condensing
Certifi cation CE/FCC Class B
Optional CPUs
Model Cores/Threads Base Freq. / 1T Boost Freq L2 Cache TDP
AMD V3C18I 8C/16T 1.9GHz (3.8GHz) 4MB 10-25W

Support

(Documents & Downloads)

ANS-7A44E | Datasheet 240611   June 11, 2024
