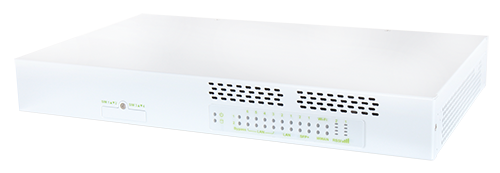

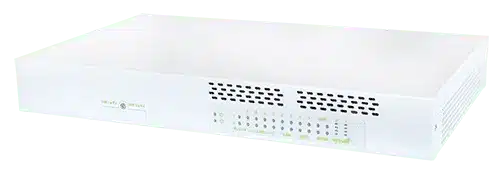

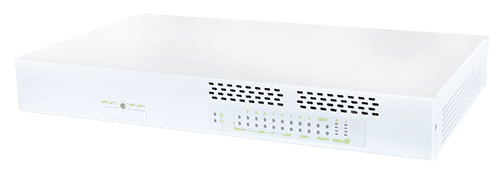

ANS-7A44G

Compact Desktop Platform with AMD V3000 processor and six 2.5GbE plus two 10GbE Ports for SD-WAN Solution

OVERVIEW

ANS-7A44G is built with AMD V3000 processor with up to eight CPU cores and sixteen threads. ANS-7A44G, a compact system comes with 2x 10GbE SFP+ and 6x 2.5GbE ports with 2-pair bypass function, is suitable for SDN (SD-WAN) application with 5G and WiFi 6 deployment.

FEATURES

  • AMD V3000 processor series up to 8 cores and 16 threads.
  • 2x DDR5 SO-DIMM 4800MT/s Memory Up to 64GB
  • 2x M.2 Key-M 2242/2280 slots (PCIe x4)
  • 6x 2.5GbE RJ45 with 2-pair bypass and 2x 10GbE SFP+
  • 2x M.2 Key-B, 3042/3052 (USB 3.0) with 2x Micro
    SIM slots
  • 1x M.2 Key A-E, 2230/3042 (PCIe + USB 2.0)

DOWNLOAD

SPECIFICATION



Specification
Model Name ANS-7A44G
General
Processor AMD V3000 V3C14/V3C16/V3C18 processors
BIOS AMI BIOS
Memory 2x DDR5 SO-DIMM up to 64GB
Storage 1x M.2 Key M 2242/2280 Slots (PCIe x4)
1x M.2 Key M 2242/2280 Slots (PCIe x4 or SATA)
Expansion 2x M.2 Key-B 3042/3052 slots with 2x Micro SIM
1x M.2 Key A-E 2230/3042 slots with PCIe and USB 2.0 signals
Security TPM 2.0

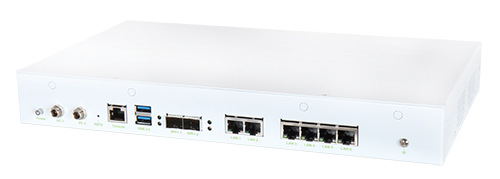

External I/O
Console 1x RJ45 Console
USB 2x USB 3.0
Ethernet 6x 2.5GbE RJ45 (Intel® I226) and 2x 10GbE SFP+
Two pairs of LAN bypass
Power
System Dual 12VDC outputs with 65W Power Adapter, 110-220V AC input
Mechanical
Dimension (W x D x H) 275 x 165 x 44.4 mm (10.83″ x 6.5″ x 1.75″)
Mounting Desktop
Environmental
Operating Temperature Temperature: 0 – 40°C (32 – 104°F)
Storage Temperature Temperature: -10 – 70°C (14 – 158°F)
Relative Humidity Humidity: 10 – 90% RH, non-condensing
Certifi cation CE/FCC Class B
Optional CPUs
Model Cores/Threads Base Freq. / 1T Boost Freq L2 Cache TDP
AMD V3C14 4C/8T 2.3GHz (3.8GHz) 2MB 10-15W
AMD V3C16 6C/12T 2.1GHz (3.8GHz) 3MB 10-15W
AMD V3C18 8C/16T 1.9GHz (3.8GHz) 4MB 10-15W

Support

(Documents & Downloads)

  Catalog   Catalog_ANS-7A44G.pdf | Catalog    December 6, 2023
517.41 KB 32 Downloads
