ANS-9142/41

Compact System with Intel® Denverton C3436L(4C) / C3338R(2C) Processor for SD-WAN solution

OVERVIEW

ANS-9142 series builds on Intel® Denverton C3436L / C3338R processor with up to four CPU cores. ANS Denverton series is a compact system with up to 8x GbE ports and it is suitable for SDN (SD-WAN) application with 5G and WiFi 6 deployment.

FEATURES

  • Intel Atom® C3436L(4C) / C3338R(2C) Processor (Denverton)

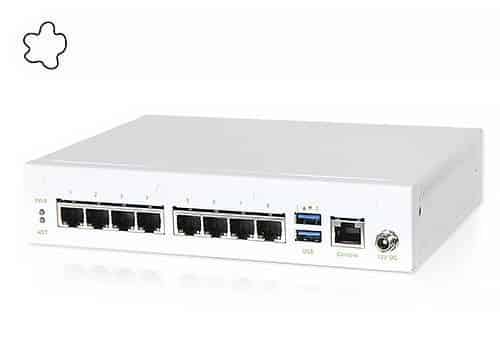

  • 8x GbE RJ45 1x RJ45 Console, 2x USB 3.0
  • 1x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 32 GB
  • 1x TPM 2.0 (on-board)
  • 1x M.2 Key-E Slot (PCIe/ USB2.0), 1x M.2 Key-B Slot (PCIe/ USB3.0), 1x M.2 Key-M Slot (SATA)
  • Design ready for 5G and WiFi 6 (802.11ax)
  • Compact design 2 in 1U rackmount

DOWNLOAD

SPECIFICATION

Specification
Model Name ANS-9142 ANS-9141
Ganeral
Processor Intel® Denverton C3436L(4C) Intel® Denverton C3338R(2C)
BIOS AMI UEFI BIOS
Memory 1 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 32GB
Storage eMMC 5.0 16GB (Optional)
1x SATA III port for SATADOM or M.2 Key-M storage
Expansion 1x M.2 Key-E slot with PCIe and USB2.0 signals
1x M.2 Key-B slot with PCIe and USB3.0 signals

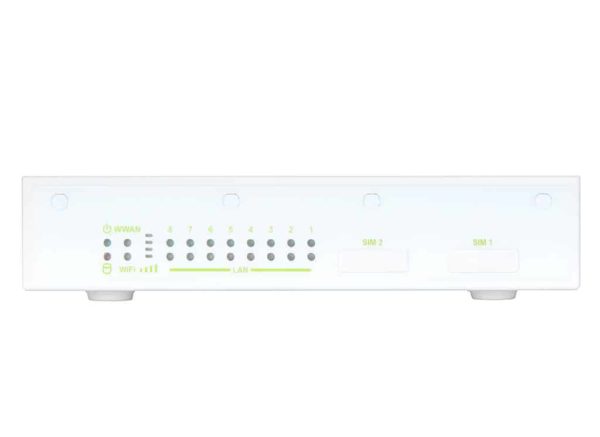

2x SIM slots
Security TPM 2.0
I/O Interface
Console 1 x RJ45
USB 2 x USB 3.0
Ethernet 4x GbE RJ45 (Intel I211), 4x GbE RJ45 (Marvell 88E1543)

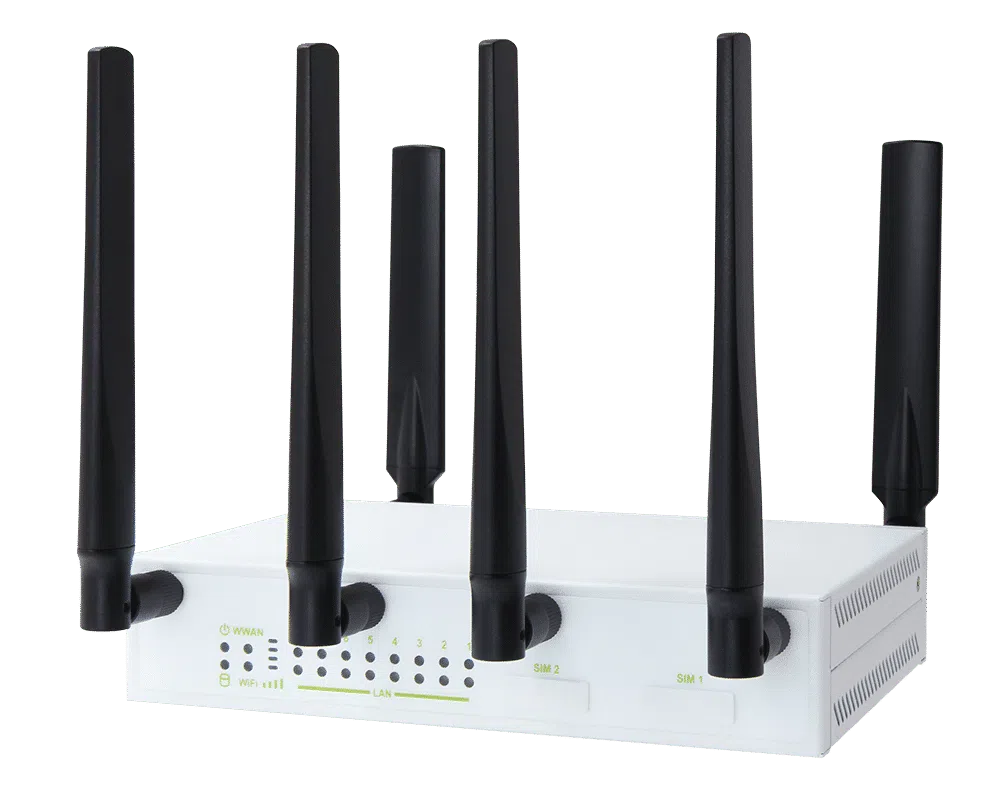

other 8x SMA Antenna holes for WiFi or LTE/5G module
System 65W Power Adapter, 110-220V AC input, 12V DC output
Mechanical
Dimension 203 (W) x 150 (D) x 42 (H) mm
Mounting Desk, Wall mount
Environmental
Operating Temperature 0°C ~ 40°C
Storage Temperature -10°C ~ 70°C
Relative Humidity Certification 10% ~ 90%@40°C, non-condensing CE, FCC, LVD

ORDERING GUIDE

AS1-3321 (R). ANS-9142. C3436L 4-Core 16GB eMMC, 8x GbE LAN
AS1-3320 (R)。ANS-9141。C3338R 2 核 16GB eMMC,8x GbE LAN

Support

(Documents & Downloads)

  Catalog   ANSB-9142-Series | Catalog 20221201   August 31, 2021

Intel® Denverton Refresh C3436L(4C) / C3338R(2C) Processor embedded board with DDR4 SO-DIMM and 12V DC input

252.3 KB 1127 Downloads
  Catalog   ANS-9142/41 | Catalog 20221201   May 4, 2021

Compact System with Intel® Denverton C3436L(4C) / C3338R(2C) Processor for SD-WAN solution

124.9 KB 1710 Downloads
      BIOS   BIOS_ANS-9142_0.0.5.zip | BIOS 0.0.5   May 16, 2023

    BIOS FW Updated

    Support SATA DeEmphasis Control Item

    10.64 MB 142 Downloads
        EC   EC_ANS-9142_10824T00.zip | EC 10824T00   May 16, 2023

      EC FW Updated

      修正10416T05 On/Off Issue

      95 KB 137 Downloads
          Utility   ANS Series: ANS-OS V22.04   May 25, 2021

        ANS Series: ANS-OS

        1.27 GB 42 Downloads
          Utility   ANS Series: Monitor Function API V1.2.1   April 27, 2021

        ANS Series: Monitor Function API

        1.1 MB 31 Downloads
          Utility   ANS Series: AnnA Web GUI V3.1.1   April 27, 2021

        ANS Series: AnnA Web GUI

        117.4 MB 1247 Downloads
