ANS-9A44F/42F

Compact System with Intel Atom® C3758R(8C) / C3558R(4C) Processor for SD-WAN solution

OVERVIEW

ANS-9A44F/42F series builds on Intel Atom® C3758R / C3558R processor with up to eight CPU cores. ANS Denverton series is a compact system with up to 2xSFP+, 2x GbE ports, 2x GbE PoE+ ports and 4x Combo ports, it is suitable for SDN (SD-WAN) application with 5G and WiFi 6 deployment.

FEATURES

  • Intel Atom® C3758(8C) / C3558R(4C) Processor

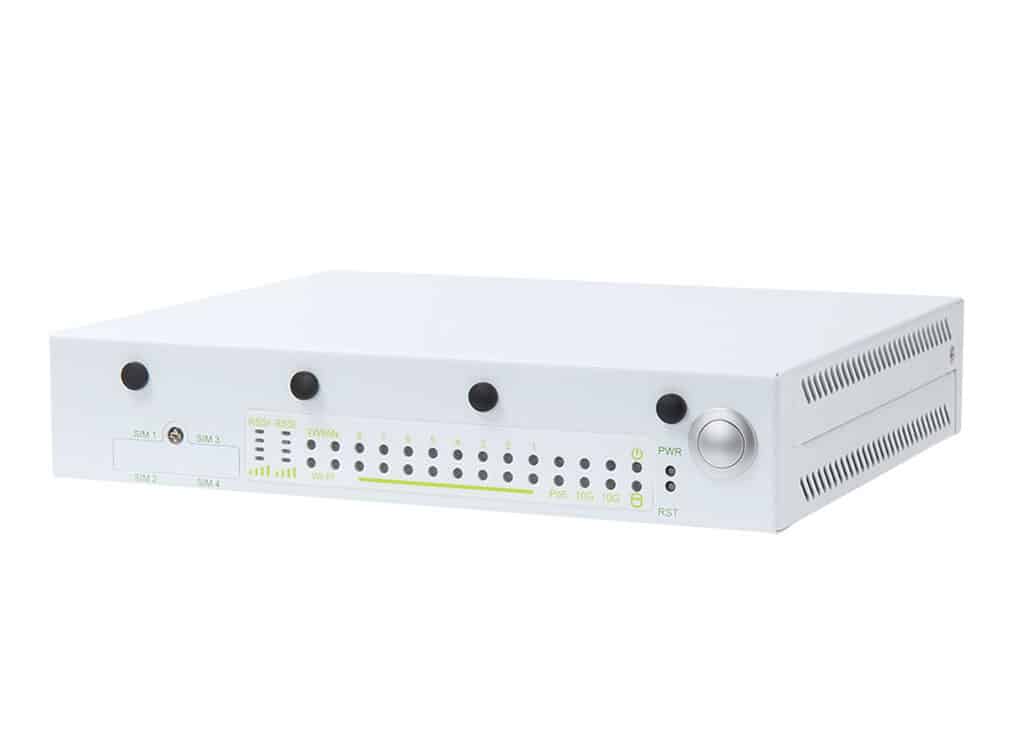

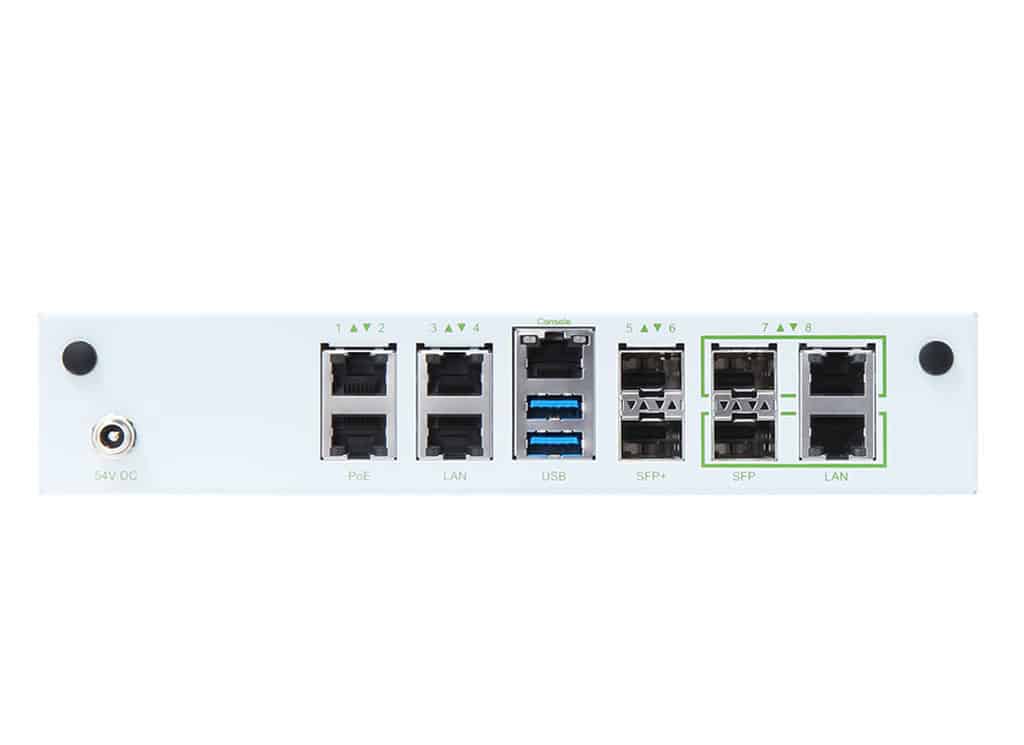

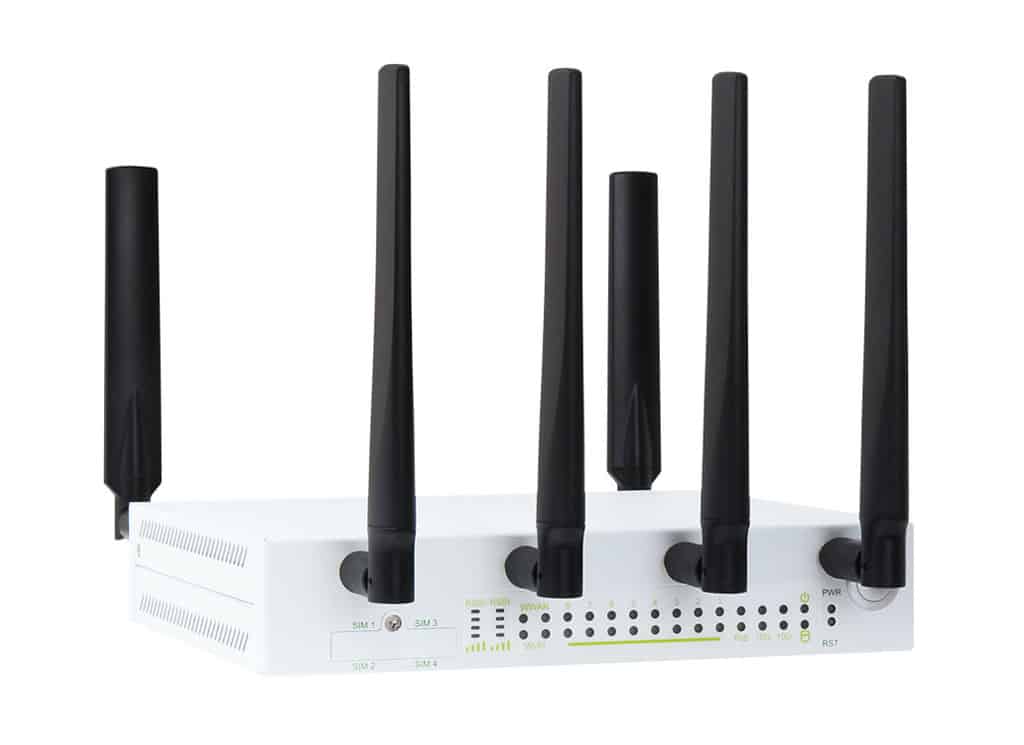

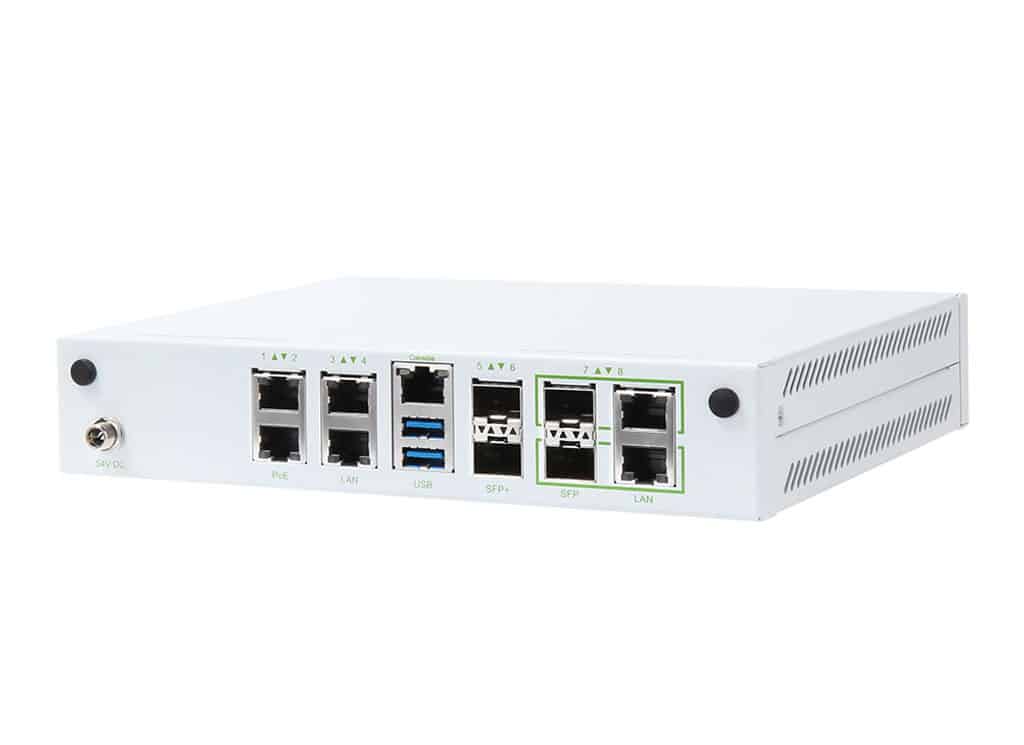

  • 2x 10Gb SFP+, 2x GbE RJ45, 2x GbE RJ45 PoE+, 4x Combo Ports
  • 1x RJ45 Console, 2x USB 3.0
  • 2 x DDR4 1866 MT/s ECC and non-ECC SO-DIMM up to 64GB
  • 1x TPM2.0(on-board)
  • 2x M.2 Key-E Slot(PCIe/ USB2.0), 2x M.2 Key-B Slot(PCIe/ USB3.0), 1x SATADOM

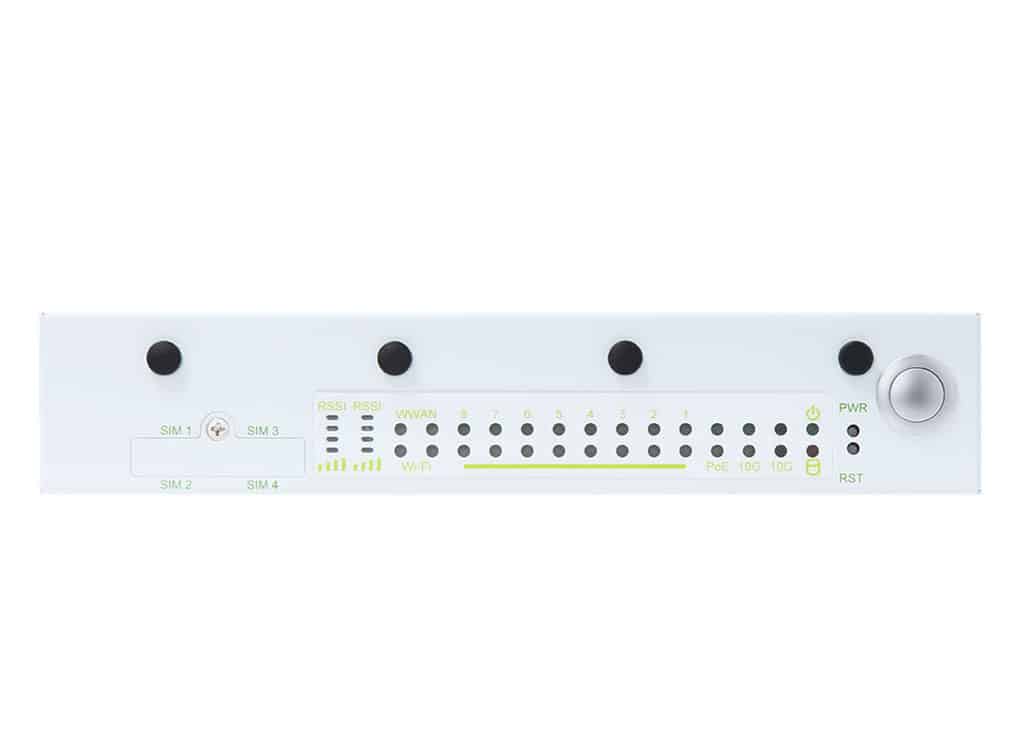

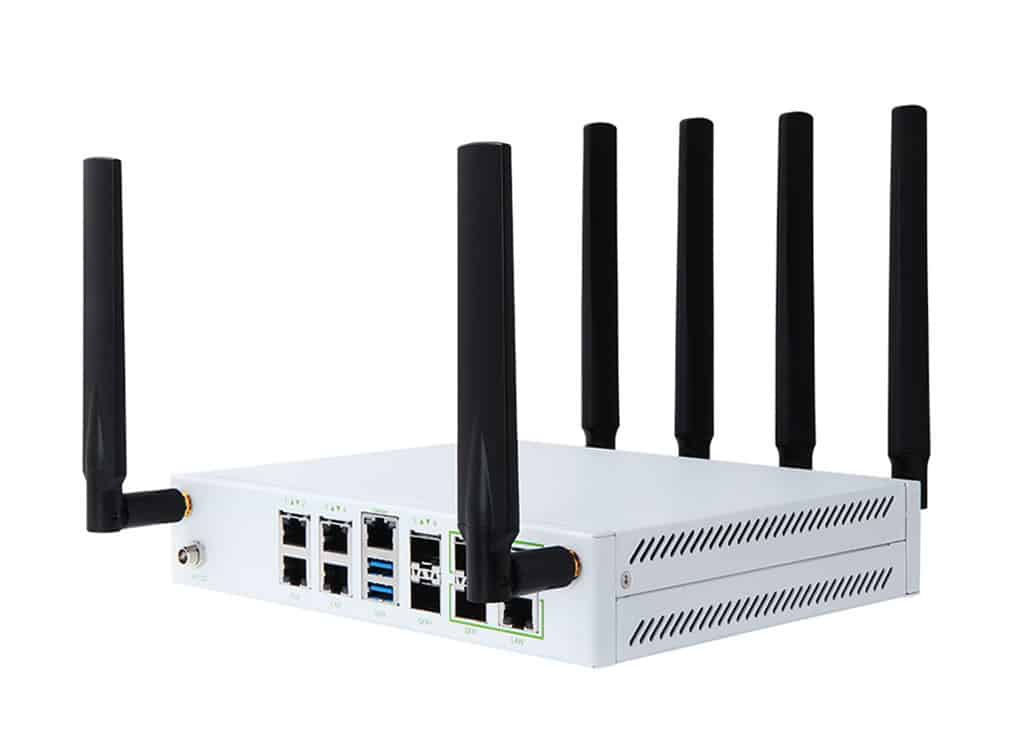

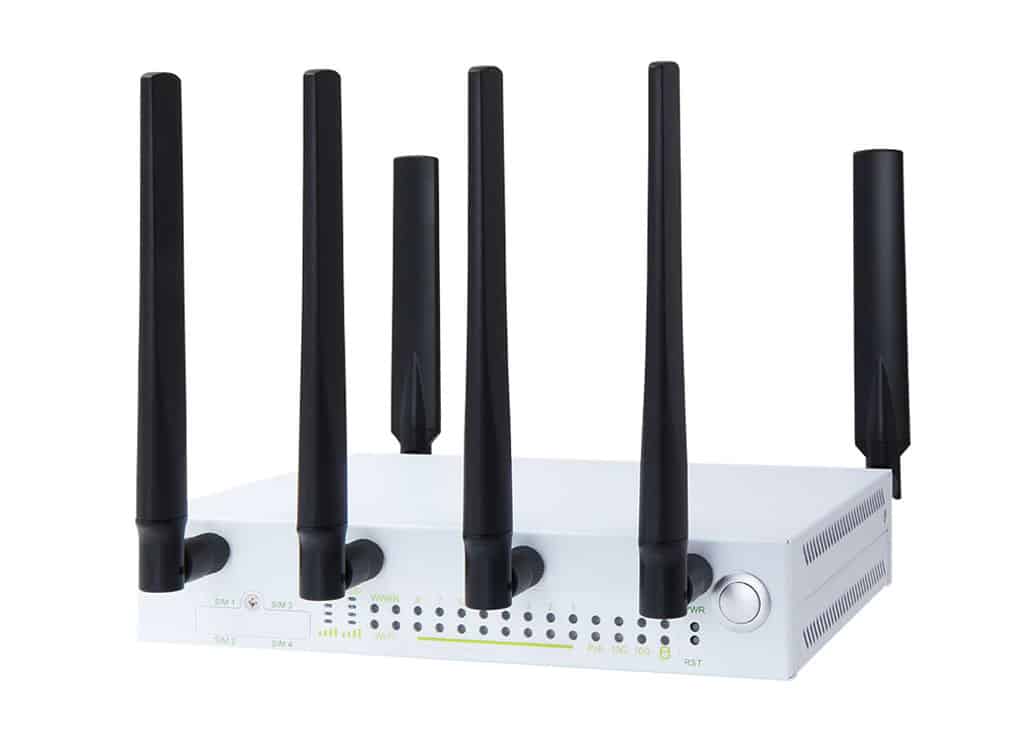

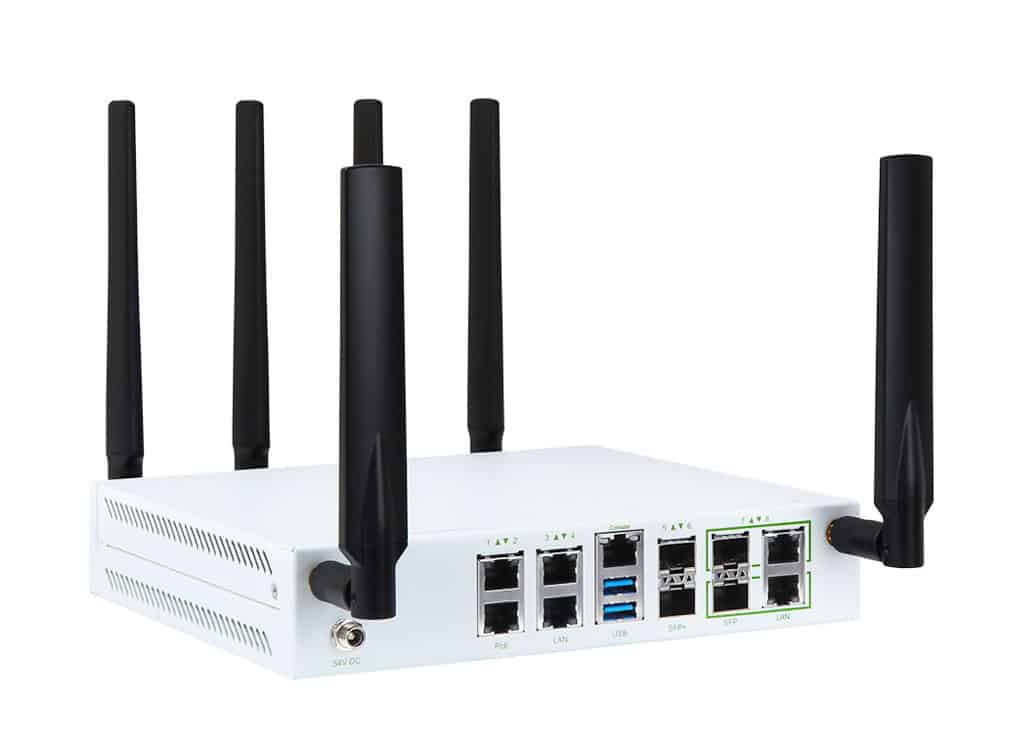

  • Design ready for 5G and WiFi 6 (802.11ax)
  • Compact design 2 in 1U rackmount

DOWNLOAD

VIDEO

Portwell launches ANS-9A44F/42F, compact desktop network security appliances integrating Intel® QAT and DPDK, design ready for 5G and Wi-Fi 6.

ANS-9A44F/42F Press Release: https://www.portwell.com.tw/ans/ans-part8/

ANS-9A44F/42F Product Info: https://www.portwell.com.tw/products/ans/ans-9a44f-42f/

SPECIFICATION

Specification
Model Name ANS-9A42F ANS-9A44F
Ganeral
Processor Intel® Denverton C3758R(8C) for ANS-9A44F Intel® Denverton C3558R(4C) for ANS-9A42F
BIOS AMI UEFI BIOS
Memory 2 x DDR4 1866 MT/s ECC & non-ECC SO-DIMM up to 64GB
Storage eMMC 5.0 16GB (Optional)

1x SATA III port for SATADOM

Expansion 2x M.2 Key-E slot with PCIe and USB2.0 signals

2x M.2 Key-B slot with PCIe and USB3.0 signals

4x SIM slots

PCIex 4 slot

Security TPM 2.0
Exteral I/O
Console 1 x RJ45
USB 2 x USB 3.0
Ethernet 2x GbE RJ45 (Intel I211), 2x SFP+ (From Intel Denverton)
PoE+ Ethernet 2x GbE RJ45 PoE+ (Intel I211)
Combo Ethernet 2x GbE RJ45(Marvell 88E1543), 2x SFP (Marvell 88E1543)
Other 6x SMA Antenna holes for WiFi or LTE/5G module
Power
System 120W Power Adapter, 110-220V AC input, 54V DC output
Mechanical

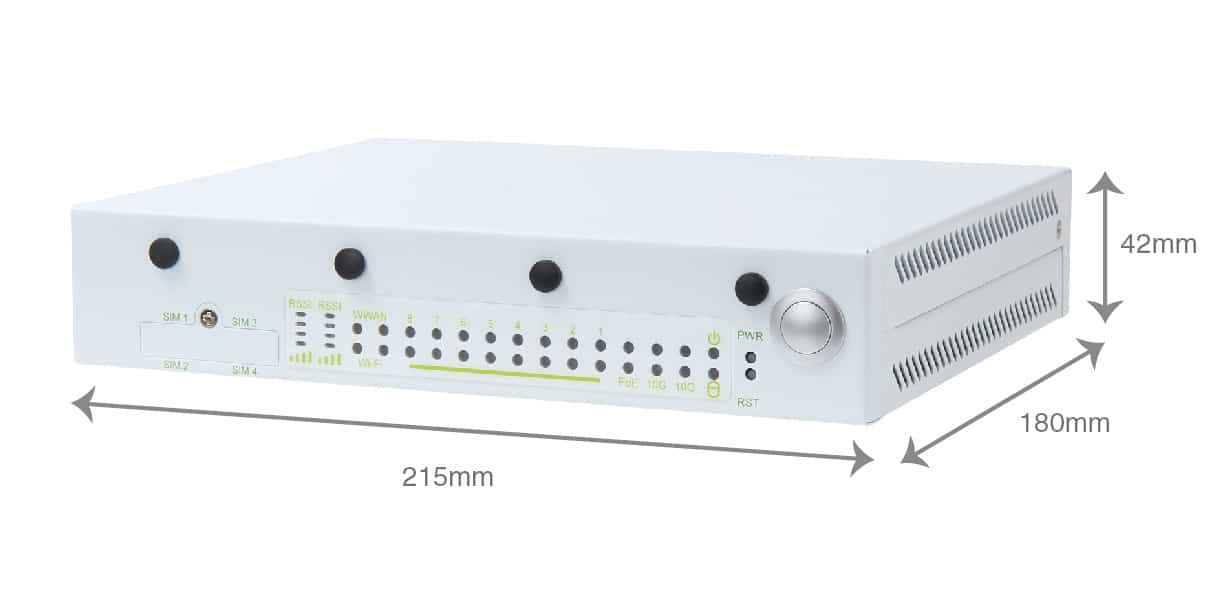

Dimension 215 (W) X 180 (D) X 42 (H) mm
Mounting Desk, Wall mount
Environmental
Operating Temperature 0°C ~ 40°C
Storage Temp. -10°C ~ 70°C
Relative Humidity
Certification
10% ~ 90%@40°C, non-condensing CE, FCC, LVD

ORDERING GUIDE

AS1-3322 (R).ANS-9A44F. C3758R 8-Core. 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port.
AS1-3323 (R).ANS-9A42F. C3558R 4-Core. 16GB eMMC, 2x PoE+, 2x GbE, 2x SFP+, 2x Combo Port.
