Portwell / Products / Systems / Industrial Power Supplies / PS/2 ATX / APD-2022
| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 19 VDC-32 VDC | ||||||||
| Wattage | 300w | ||||||||
| Form Factor | PS/2 | ||||||||
| MTBF(hrs) | 100,000 @25°C | ||||||||
| Temperature/ Humidity | Operating: 0°C ~ 50°C, 5% ~ 95%RH | ||||||||
| Storage: -40°C ~ 75°C, 5% ~ 95%RH | |||||||||
| EMC & Safety | CE, FCC, UL, TUV | ||||||||
| Dimension(WxHxD) | 150 x 86 x 140 (mm) | ||||||||
| DC OUTPUT | ||||||
|---|---|---|---|---|---|---|
| +5V | +3.3V | +12 V | -5V | -12 V | +5Vsb | |
| Max. Load | 30A | 15A | 15A | 2A | 2A | 1.2A |
| 150W | ||||||
| Min. Load | 2A | 0A | 0.1A | 0A | 0A | 0A |
| Ripple | 50mv | 50mv | 100mv | 100mv | 100mv | 100mv |
| Category | Product | P/N | Description |
|---|---|---|---|

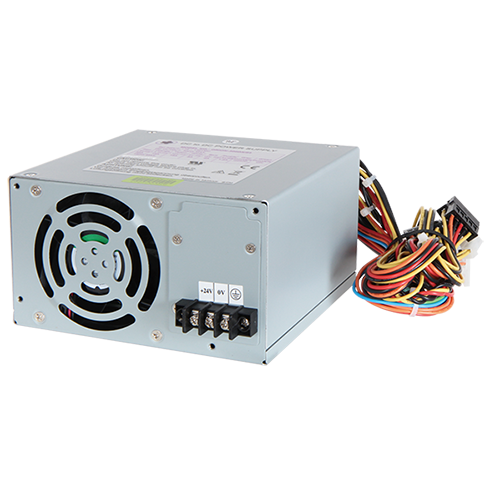

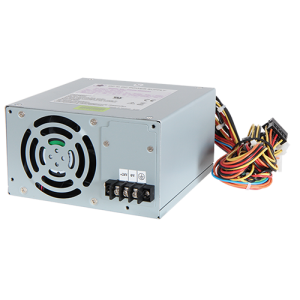

| System | APD-2022 | APD-2022 | 300W 24V DC input PS/2 ATX Power Supply |
