| General | |
|---|---|
| Input Voltage | 90Vac~264Vac |
| Wattage | 500W |
| Form Factor | PS/2 |
| MTBF(hrs) | 100,000 @35°C |
| Temperature/Humidity | Operating: 0°C ~ 50°C, 20% ~ 85%RH Storage: -20°C ~ 60°C, 5% ~ 95%RH |
| EMC & Safety | CE, FCC, CCC, CB, BSMI, UL, BIS, TUV |
| Dimension (WxHxD) | 150 x 86 x 140 (mm) |
| DC Output | ||||||
|---|---|---|---|---|---|---|
| +5V | +3.3V | +12 V1 | +12 V2 | -12V | +5Vsb | |
| Max. Load | 22A | 10A | 20A | 25A | 0.3A | 2.5A |
| 130W Max | 390W Max | 3.6W Max | 12.75W Max | |||
| Min. Load | 0.2A | 0.1A | 0.075A | 0.075A | 0A | 0A |
| Ripple | 50mv | 50mv | 120mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Status | Description |
|---|---|---|---|---|

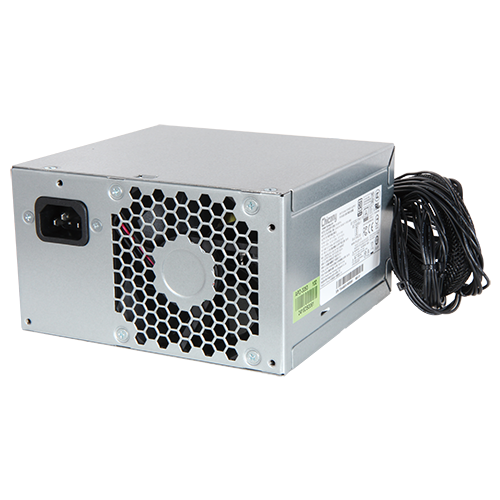

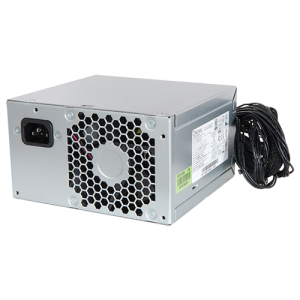

| System | APD-3053 | null | Available | 500W PS/2 ATX Power Supply |
