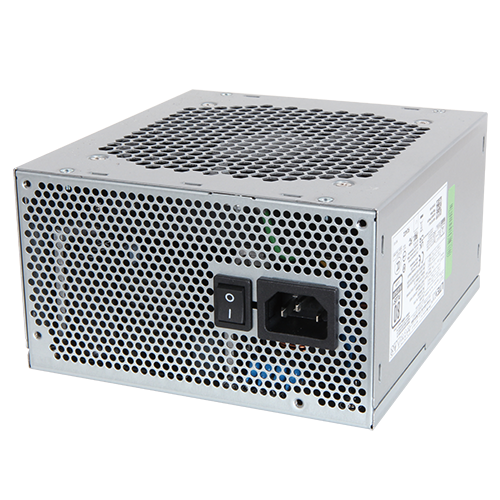

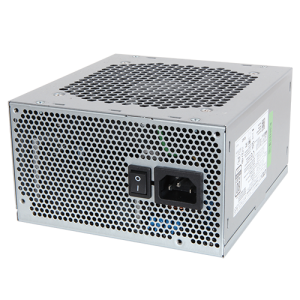

Portwell / Products / Systems / Industrial Power Supplies / PS/2 ATX / APD-3077
| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 100 Vac~240 Vac | ||||||||
| Wattage | 1000W | ||||||||
| Form Factor | PS/2 | ||||||||
| MTBF(hrs) | 700,000 @25°C | ||||||||
| Temperature/ Humidity | Operating: 0°C ~ 50°C, 8% ~ 90%RH | ||||||||
| Storage: -20°C ~ 80°C, 5% ~ 90%RH | |||||||||
| EMC & Safety | CE, FCC, UL, CSA, CB, TUV, CCC, BSMI, KC | ||||||||
| Dimension(WxHxD) | 150 x 86 x 160 (mm) | ||||||||
| DC OUTPUT | |||||
|---|---|---|---|---|---|
| +5V | +3.3V | +12 V | -12 V | +5Vsb | |
| Max. Load | 20A | 20A | 83A | 0.3A | 3A |
| 110W | 996W Max | 3.6W Max | 15W Max | ||
| Min. Load | 0A | 0A | 0A | 0A | 0A |
| Ripple | 50mv | 50mv | 120mv | 120mv | 50mv |
| Category | Product | P/N | Description |
|---|---|---|---|
| System | APD-3077 | APD-3077 | 1000W PS/2 ATX PSU. Active PF |
