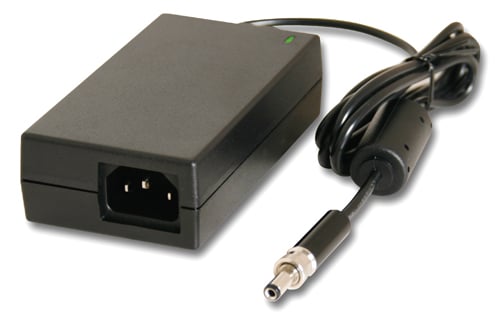

APH-3038-60W

60W DC-Plug with Screw Power Adapter

Features

  • Efficiency: Meet CEC (California Energy Commission)
  • Low Ripple& Noise
  • Short Circuit Protection
  • Over Current Protection 10A(Max.)
  • Over Voltage Protection 18Vdc Max. (Upper Trip limit)
  • No Load Power Consumption ≤ 0.5W
  • DC plug with screw for securing

Specification

AC Input Voltage 90V ~ 264V
DC Output Voltage 12V
Output Load 5A
Output Regulation 11.4V~12.6V
Efficiency >87%, 115V@60Hz, 230V@50Hz
MTBF 60,000 hrs@25°C
EMI & Safety Approval UL, cUL, TUV, CE, FCC, CB, CCC
Dimension 110(w) x 62(d) x 31.5(h) mm
