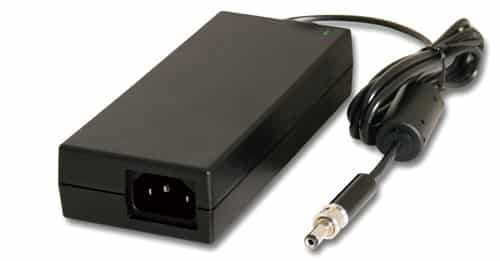

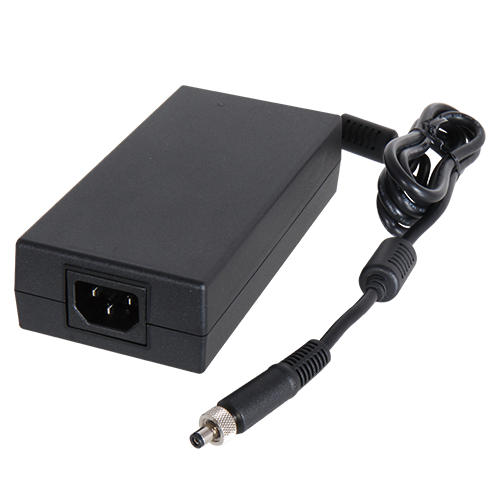

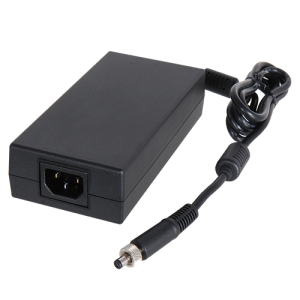

APH-3075

120W DC-Plug with Screw Power Adapter

Features

  • Efficiency: Meet CEC (California Energy Commission)
  • Low Ripple& Noise
  • Short Circuit Protection
  • Over Current Protection, Shutdown and no damage
  • Over Voltage Protection 17Vdc Max. (Upper Trip limit)
  • Over Temperature Protection (No fire, no smoke)
  • No Load Power Consumption ≤ 0.5W
  • DC plug with screw for securing

Specification

AC Input Voltage 90V ~ 264V
DC Output Voltage 12V
Output Load 10A
Output Regulation 11.4V~12.6V
Efficiency >88%, 100V@60Hz, 240V@50Hz
MTBF 100,000 hrs@25°C
EMI & Safety Approval UL, cUL, TUV, CE, FCC, CB
Dimension 171(w) x 72(d) x 42(h) mm
