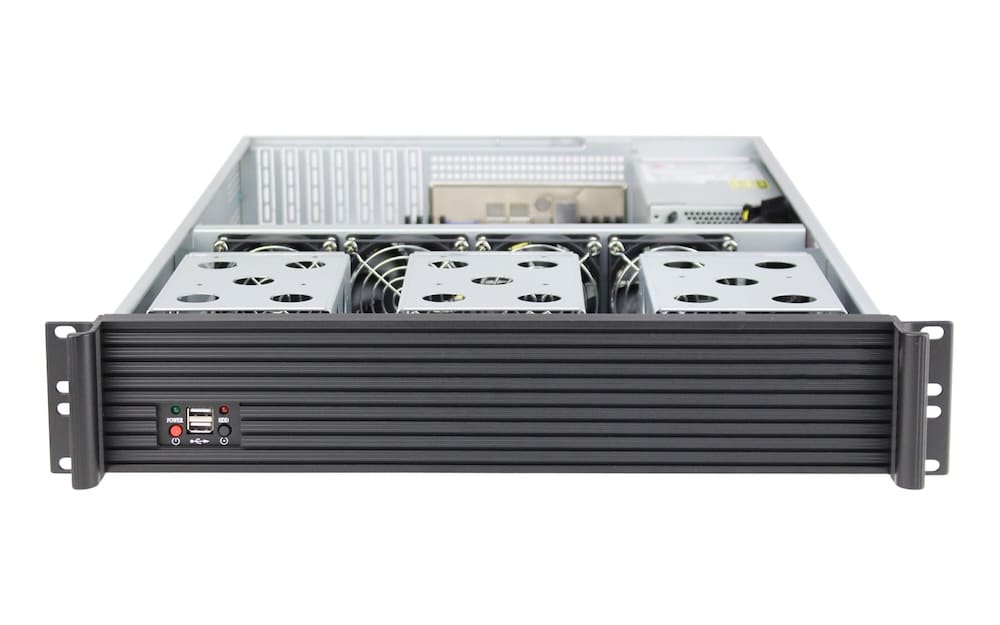

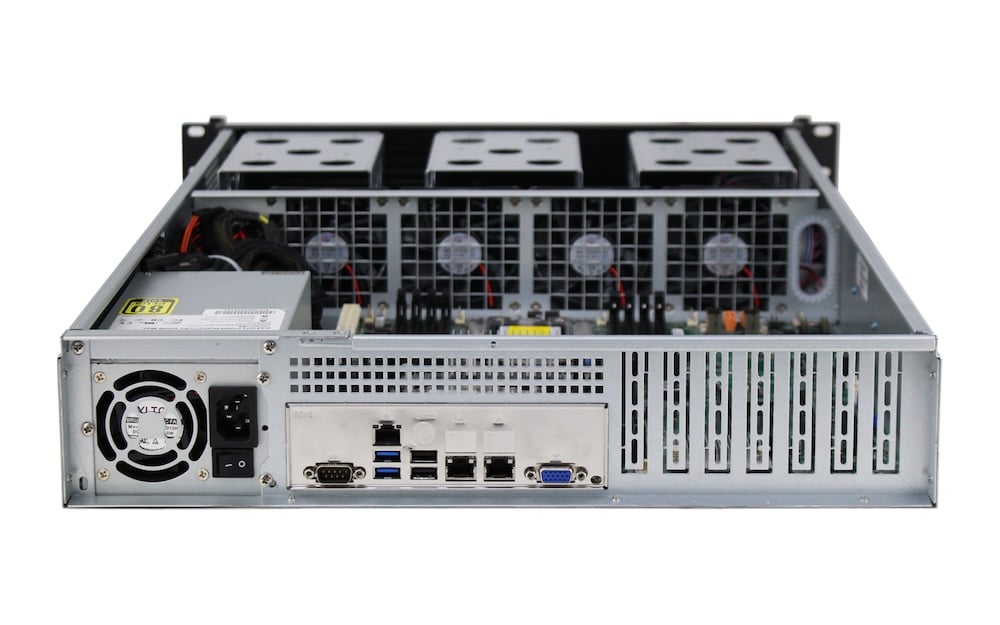

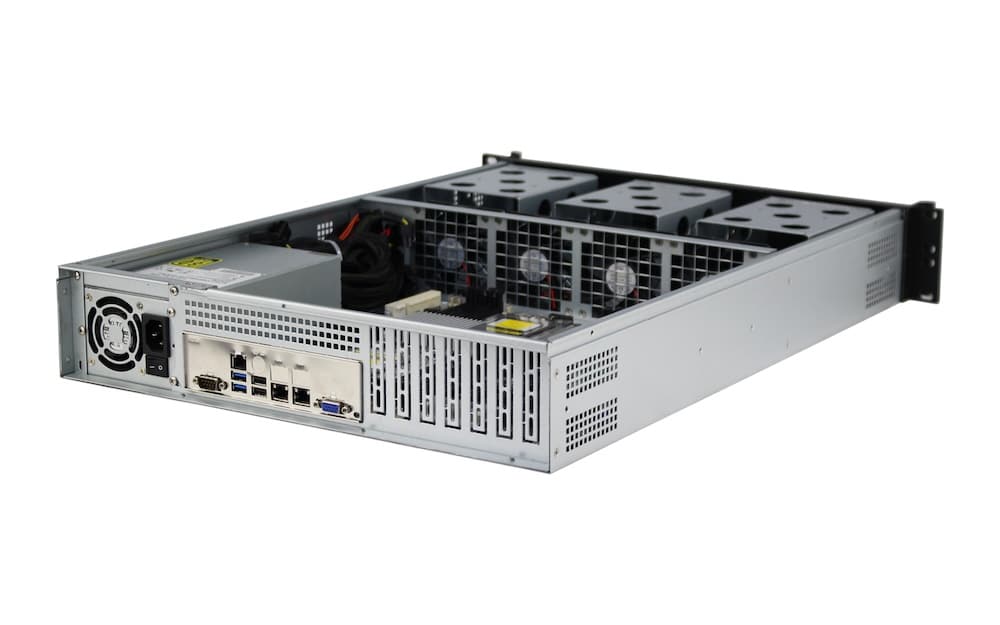

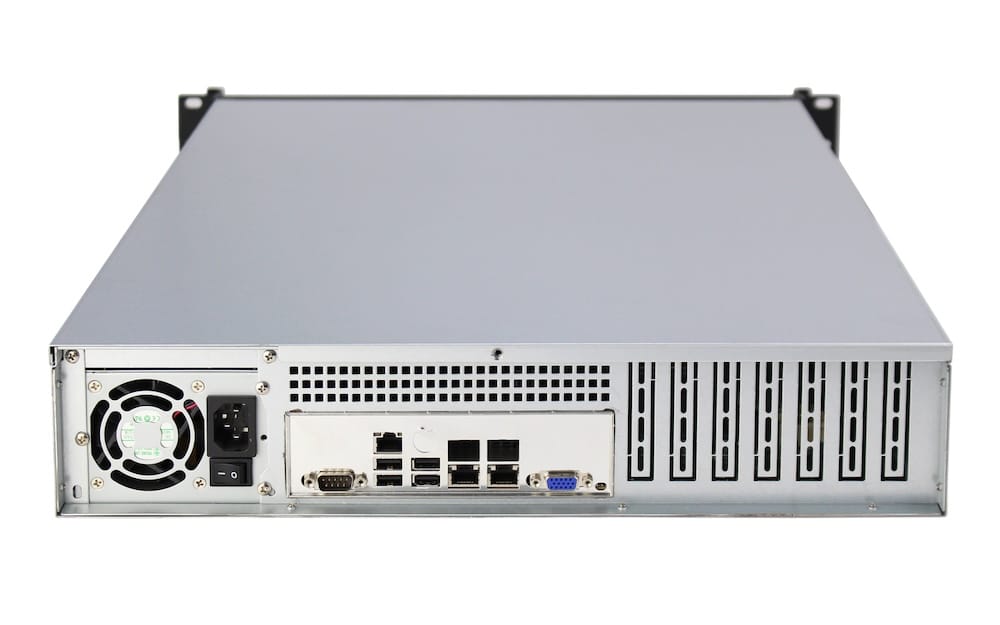

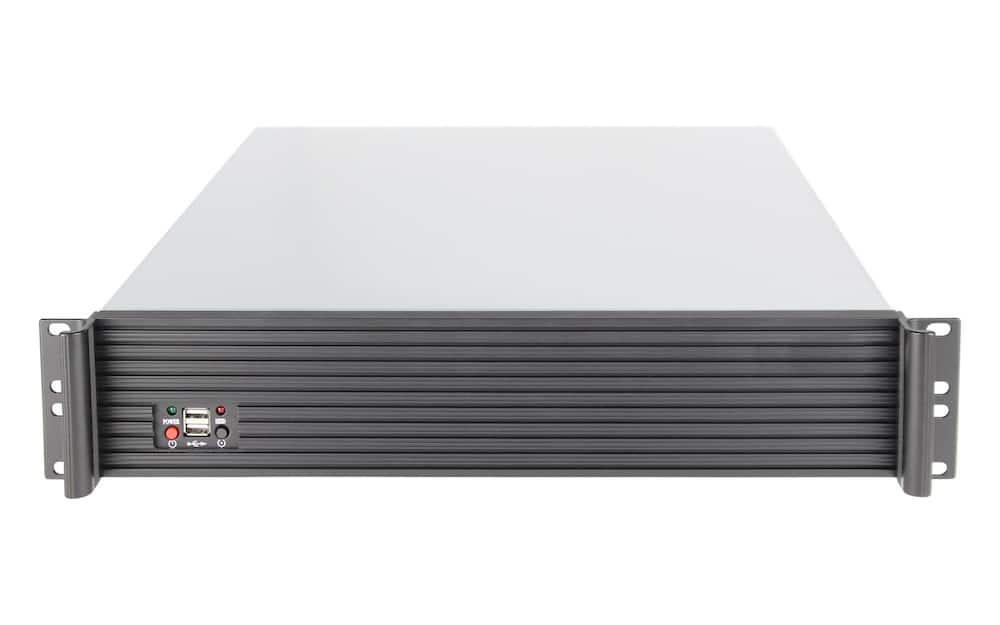

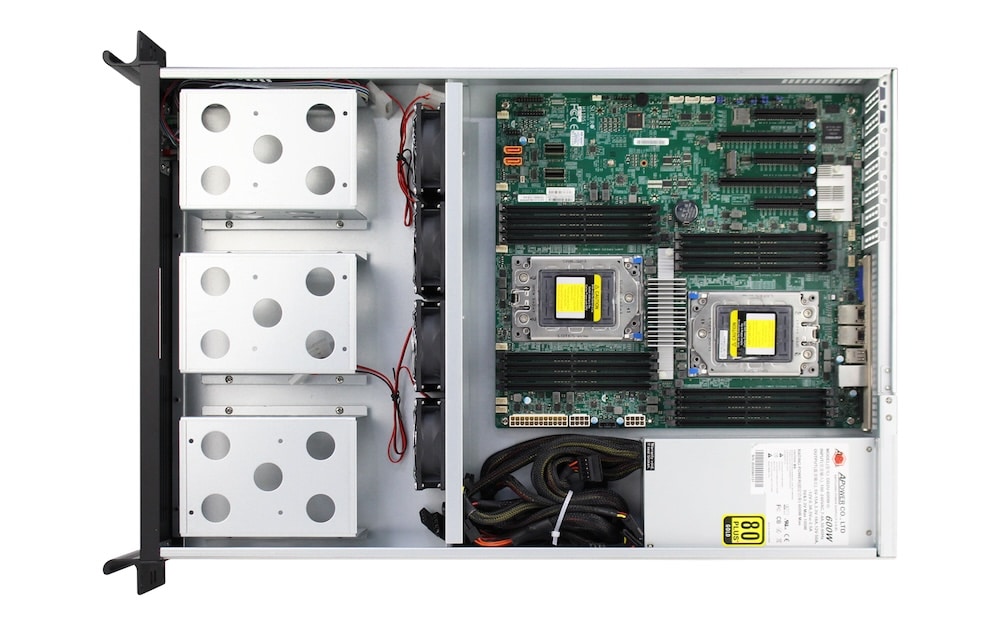

AREMO-2199-MX

19” 2U industrial rack-mount chassis

Features

  • 9x 3.5” HDD Drive bays (Or 3x 2.5” HDD/SSD)
  • Four 8cm ball-bearing cooling fans for better ventilation
  • Two USB2 ports on the front panel
  • All I/O ports, Buttons, LEDs, Drive bays, AC inlet located on the front side

The AREMO-2199-MX uses a 2U rack-mount form factor and is designed for ATX/MicroATX/ Mini-ITX Motherboard. Also, build two USB interfaces on the front panel. AREMO-2199-MX can equip high-wattage 2U form factor PSU. AREMO-2199-MX is suitable for Factory and Server applications.

Block Diagram

Specification

Specifications
General
Construction Heavy-duty steel with aluminum front panel
Drive Bay 9x 3.5″ HDD( or 3x 2.5″ HDD/SSD)
Cooling Fan 4x 8cm ball-bearing cooling fans
Indicator 1x Power On/Off LED, 1x HDD LED
Switch 1x Power On/Off, 1x System reset
Connector 2x USB ports on the front panel
Expansion slots 7x half-size PCI/PCIe expansion slots, vertical insert
Standard Color Black
Dimension 650 x 428 x 88.5 mm
Weight 8.5 Kg



POWER SUPPLY
POWER SUPPLY
Input Voltage 90V ~ 264V AC, full range
Input Frequency 50 ~ 60Hz
Input Current 10A@110V, 5A@240V
Efficiency > 80%
MTBF 100,000 hrs
EMI & Safety Approval CE, FCC



ENVIRONMENT
ENVIRONMENT
Operating Temperature 0°C ~ 50°C
Storage Temperature 0°C ~ 70°C
Relative Humidity 5% ~ 95°%, non-condensing
Vibration
  • 5~7 Hz: 0.5” double amplitude displacement
  • 7~2000 Hz: 1.5g acceleration

Ordering Guide

Ordering Guide
AREMO-1192-MX
19” 2U rack-mount chassis for M/B
