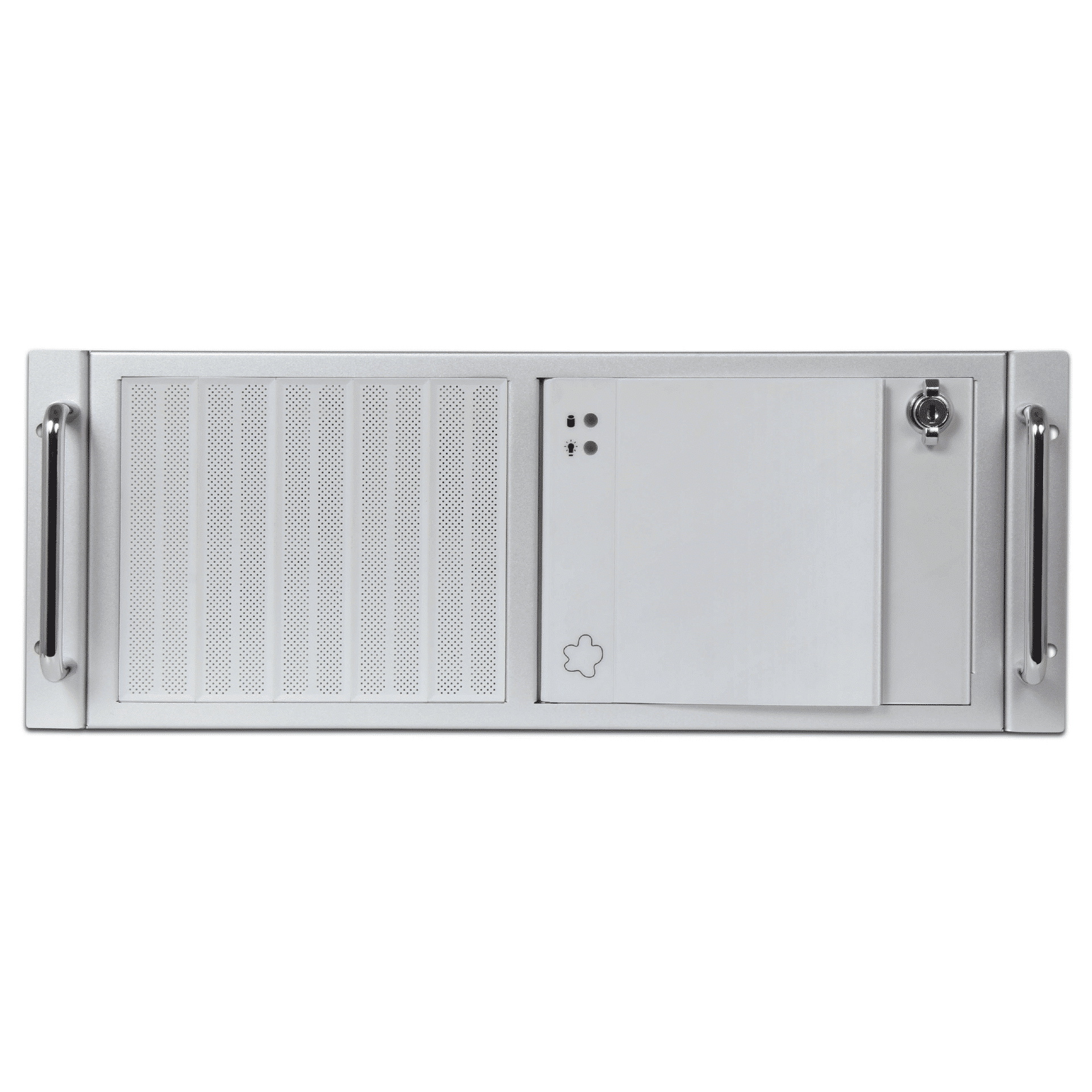

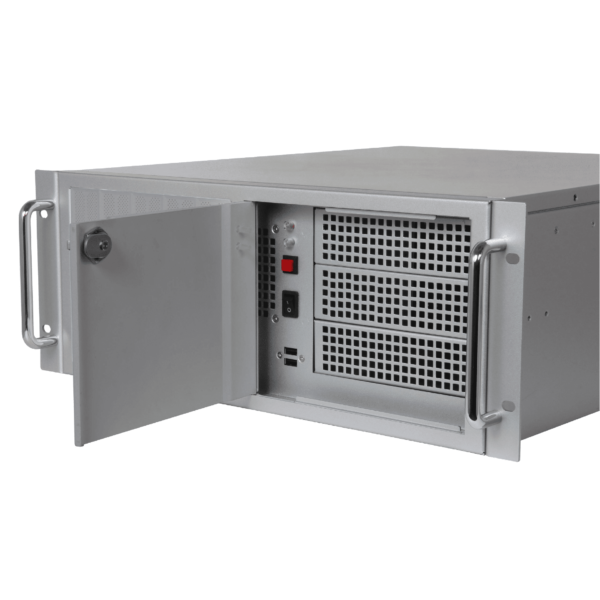

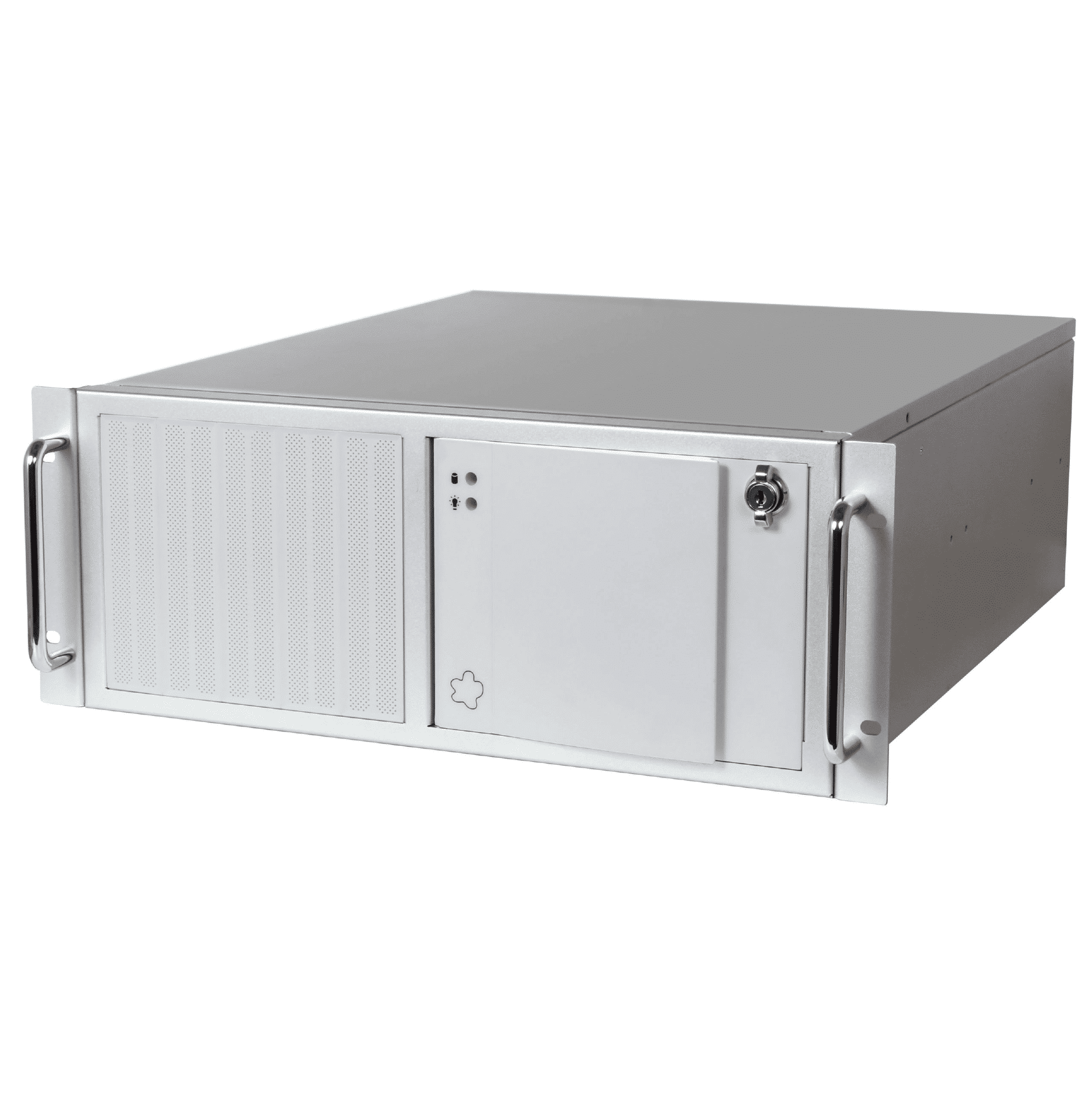

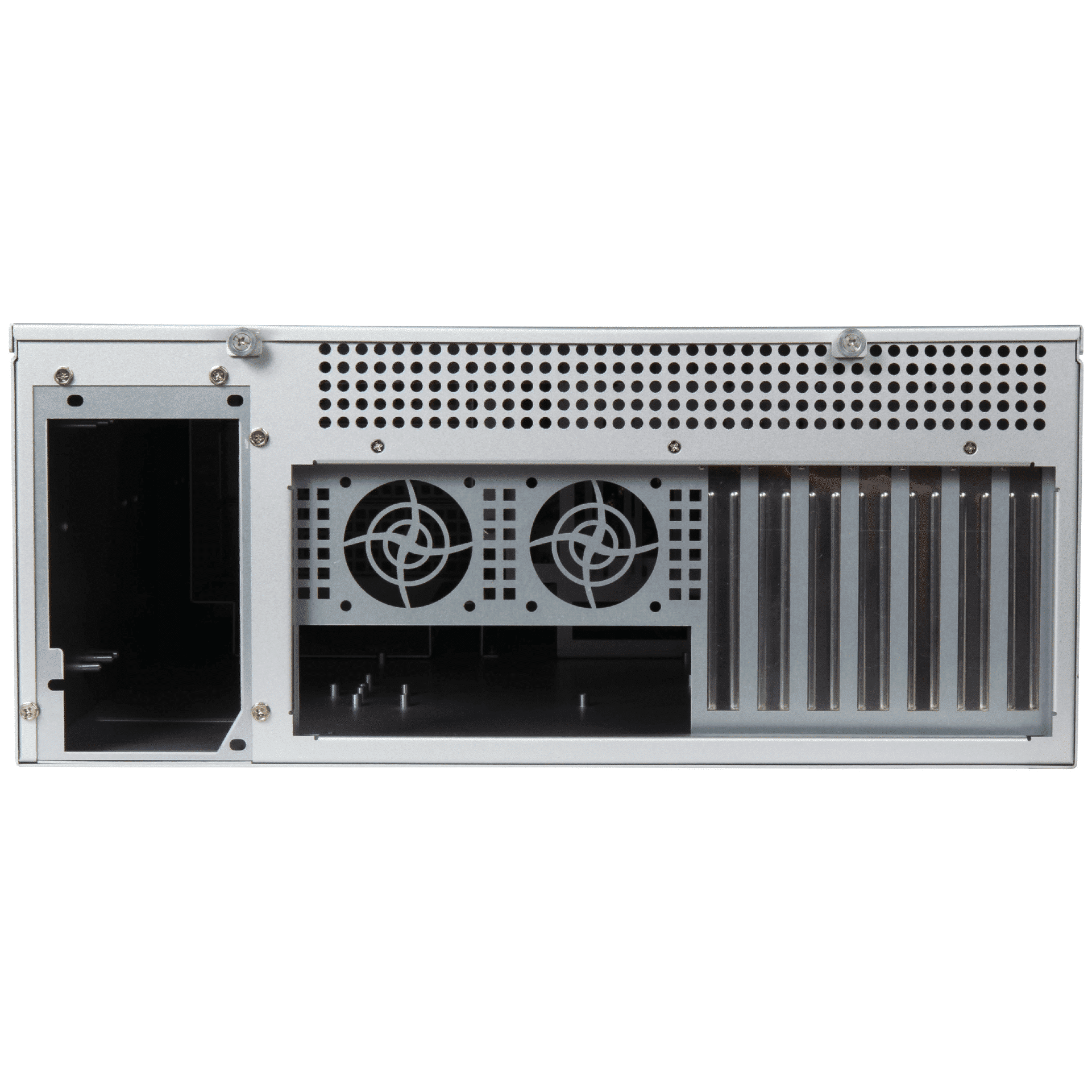

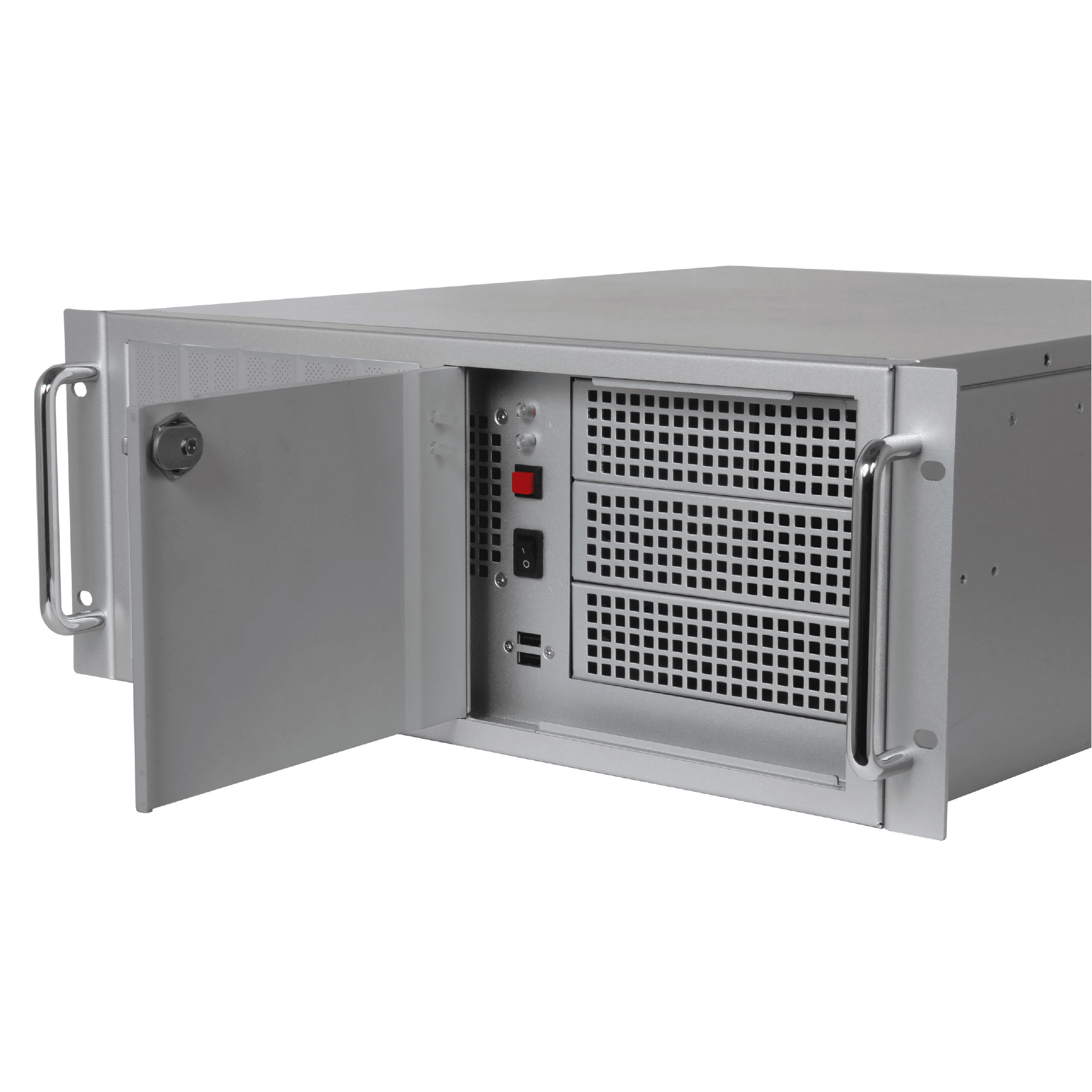

The AREMO-4197 and AREMO-4197-MX is 19”4U Rack-mount chassis and designed for PICMG SBC/SHB and ATX form factor with stylish front panel design, up to 14-slot expansion for PICMG backplane. AREMO- 4197 series can support PS/2 PSU, two USB interface on front panel and build with replaceable air filter. AREMO-4197 series is suitable in several vertical markets, like Factory and Server applications.
| TYPE | 4U | ||||||
| MODEL | AREMO-4197 AREMO-4197-MX | ||||||
| SLOT | 14 ATX | ||||||
| ORDERING GUIDE | AREMO-4197 AREMO-4197/B AREMO-4197-MX AREMO-4197-MX/B | ||||||
| BACKPLANE | |||||||
| BP MODEL | PBPE-14AD64 | PBPE-13A8 | PBPE-13A4 | PBPE-12AA64 | PBPE-12A9 | PBPE-12P4 | PBPE-11A3 |
| PICMG | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| PCIe | 2 | 4 | 8 | 1 | 2 | 8 | 8 |
| PCI/PCI-X | 3/8 | 8/0 | 4/0 | 2/8 | 9/0 | 4/0 | 3/0 |
| AREMO-4197 19” 4U rack-mount chassis for PICMG backplane |
| AREMO-4197/B 19” 4U black rack-mount chassis for PICMG backplane |
| AREMO-4197-MX 19” 4U rack-mount chassis for ATX M/B |
| AREMO-4197-MX/B 19” 4U black rack-mount chassis for ATX M/B |
