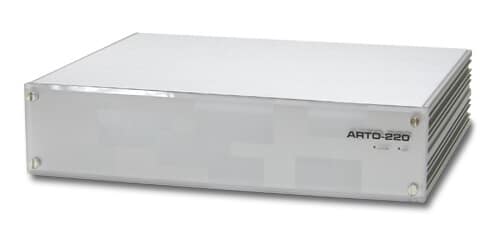

The compact and slim ARTO-220-ITX is design to fit Mini-ITX MB applications operating where space is at a premium. It also features a tool-free mechanical design to quickly release the top cover of the chassis for ease of integration and field service. The barebone system includes a WADE series board, 3.5” drive bay, one PCI expansion slot and a 250-watt power supply.
| POWER SUPPLY | |
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 5A@115V, 3A@230V |
| Efficiency | >68% |
| Holdup Time | 17ms. at full load@25°C |
| Over Voltage Protection | +5V@5.7~6.5V; +3.3@3.7~4.5V; +12V@13.3~+5.6V |
| Over Power/Load Protection | Output power over to 110%~160% |
| MTBF | 105,405 hrs |
| EMI & Safety Approval | UL, cUL, TVU, CE, FCC |
| Temperature/Humidity | Operating: 0 ~ 50°C, 20 ~ 85%RH Storage: -20 ~ 70°C, 10m ~ 90%RH |
| Dimension | (WxDxH) 100 x 190 x 40.5 mm; 3.9” x 7.5” x 1.6” |
| Mechanical & Environmenal | |
| Operation Temperature | 0~50°C |
| Storage Temperature | -20~80°C |
| Relative Humidity | 5~95% non-condensing |
| Dimension | 347 x 241 x 74 (mm) |
| Weight | 3.5 Kg |
| ARTO-220-ITX-250X 1.5U Advanced Mini-ITX based Chassis with PEP-581R, 1 slot PCI, rise card & 250W Active PFC PSU |
