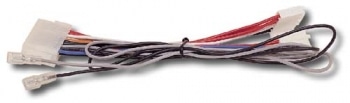

CABLE-ATX-P8P9

Cable for ATX to P8/P9 connectors converting

Features

  • An extension cable to convert ATX connector to P8P9 connectors for fitting those old backplane or computer boards
  • With an extra power on/off cable, it is easy for user to control their system

Documents & Downloads

  Catalog   CABLE-ATX-P8P9 | Catalog 23A   April 4, 2003

Catalog

376.90 KB 6100 Downloads
