FEMTO-8010

COMING SOOM
Intel® Wildcat Lake; LPDDR5, UFS 3.1; dual HDMI®/eDP; 2.5GbE; USB 3.2, USB 2.0; M.2 E-Key; TPM, GPIO, I2C/SMBus, Smart FAN

Features

  • Intel® Wildcat Lake
  • Intel® Core™ 3 Processors 304/ Core™ 3 Processors 305/ Core™ 7 Processors 350
  • LPDDR5 + UFS 3.1 onboard design
  • HDMI® + eDP dual display
    2.5GbE LAN, 2x USB 3.2
    M.2 E-Key expansion
  • TPM, USB2.0, GPIO, I2C/SMBus, Front Panel, Smart FAN
General
Processor Intel® Core™ 3 Processors 304
Intel® Core™ 3 Processors 305
Intel® Core™ 7 Processors 350
BIOS AMI uEFI BIOS
Memory Support up to 16GB LPDDR5/x 6800 MT/s on board (default 8GB)
Storage 1 x UFS3.1 up to 256GB (default 64GB)
Watchdog Timer Programmable, time out period from 1 s to 255 s
Graphic Controller Intel® Xe 3 Graphics

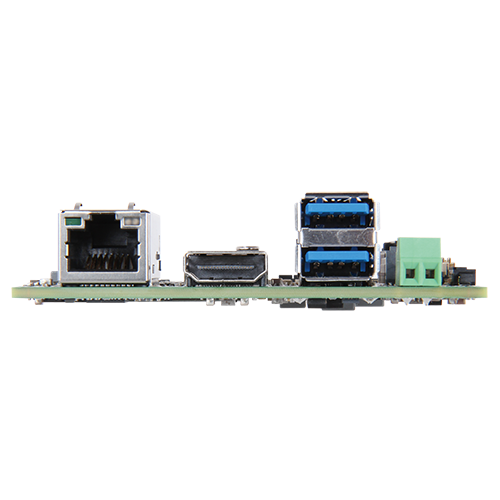

Rear I/O
Ethernet 1 x Intel® I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps
USB 2 x USB 3.2 Gen2 Type A
Display 1 x HDMI® 1.4 3840 x 2160@30Hz
Expansion I/O
USB 2 x USB 2.0 Pin Header
M.2 1 x M.2 E Key 2230 support
Security TPM 2.0 ( On Board IC )
Display 1 x eDP 3840 x 2160@60Hz
GPIO 1 x 8-bit Digital I/Os
Others 1 x I2C/SMBus
ME/Environment
Dimension 84 x 55 mm (3.31″ x 2.17″)
Power Supply 2-pin Terminal Block(colay DC Jack)
Operating Temperature 0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature -40 ~ 85°C (-40.0 ~ 185.0 °F)
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC UKCA
OS Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04
Portwell Special Feature PET
