– Quad-core Processor with Gen7 Graphic
– 3x Peak Performance and 5x Power Efficiency
– Extended life cycle
– Slim and Light / Fan-less and Cable-less
– Panel & VESA mount support
– Removable HDD tray and CF/SD cover
– 1x Half-size mini PCIe socket for WIFI/3G
– Different I/O extension options
– Equipped with Ambient light sensor
– Optimize visibility of display
– Lower power consumption
– Extend LCD lifetime
– 7H anti-scratch surface for high touch durability
– Up to 10-points multi-touch for a full set of gesture
– Support thick industrial gloves touch for factory use
– Moisture, contaminant, and cutting oil won’t cause any false actions to the machine.

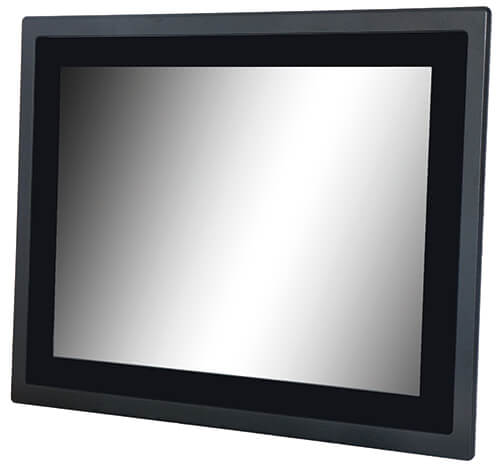

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA2 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.
| Model Name | FUDA2-S1721 |
| Display | |
| LCD Size | 17″ |
| Resolution | SXGA 1280 x 1024 |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED type |
| Touch Window | Projective Capacitive Multi-Touch (10 points) |
| System | |
| SOC | Intel® Atom™ Quad-core E3845 (1.91 GHz) |
| Memory | DDR3L SO-DIMM 1333/1600 MHz up to 8 GB |
| BIOS | AMI |
| Graphics | Intel® Gen 7 Graphics |
| LVDS | Single/ Dual Channel 24-bit |
| LAN Chipset | Dual Intel® I210IT Gigabit Ethernet (Support Jumbo Frame) |
| Audio | Realtek® High Definition Audio Codec |
| Watchdog Timer | Programmable 1 ~ 255 sec |
| Storage Device | 1 x 2.5″ SATA HDD / SSD, 1 x Compact Flash II up to 128 GB, 1 x SD card |
| OS | Windows 7/ Windows 8.1/ Windows 10/ Linux™ |
| I/O Interface | |
| Series Port | 2 x RS-232/422/485 (Expansion : Option 0) |
| Display | 1x DVI-I |
| USB | 1 x USB 2.0, 1 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0) |
| Ethernet | 2 x Gigabit Ethernet |
| Others | 1 x SMA Antenna hole for WiFi/3G Solution |
| Expansion | 1 x Half-size Mini-PCIe socket
2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1) 1 x RS-232/422/485, 1 x Line-out, 2 x USB 2.0 (Expansion: option 2) |
| Mechanical | |
| Dimesion(mm)(WxDxH) | 437 x 375 x 63.2 mm |
| Mounting (mm) | VESA Mount 75 x 75& 100 x 100; Panel Mount |
| Weight (Kg)(N) | 6.5 Kg |
| Weight (Kg)(N) | 9.8 Kg |
| Power | |
| Power Supply | DC 12 ~ 24V input with 3-pin Terminal Block Connector |
| Consumption (Max) | 47w (12V); 46W (24V) |
| Consumption (Min) | 14w (12V); 15W (24V) |
| Environmental | |
| OP /Storage Temp | -25°C ~ 70°C / -40°C ~ 85°C (20 ~ 90% non-condensing) |
| Vibration | 1.0G (CF/SSD/SD) and 0.5G (HDD) , Power on & 2.16G, Packaged; 5~500Hz, IEC 60068-2-6 |
| Shock | 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27 |
| Drop | Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard |
| IP Protection | IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard |
| Certificate | CE/FCC Class A/UL(FUDA2-S1921 only) |
| AL6-3222 | (R).ATO. FUDA2-S1021-0000-00.10.4″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC |
| AL6-3226 | (R).ATO. FUDA2-S1221-0000-00.12.1″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC |
| AL6-3227 | (R).ATO. FUDA2-S1521-0000-00.15″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC |
| AL6-3223 | (R).ATO. FUDA2-S1721-0000-00.17″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC |
| AL6-3209 | (R).ATO. FUDA2-S1921-0000-00.19″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC |
| AL6-3200 | (R).ATO. FUDA2-S1820-0000-02.18.5″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC |
| AL6-3242 | (R).FUDA2-S1521-0000-00.15″ Intel Bay Trail E3845 Projective Capacitive Touch Panel PC with Black Aluminum Bezel and Black Chassis. 4G RAM. 32G SSD. Panel mount. Extension 2*COM/2*USB |
