FUDA3-S1012

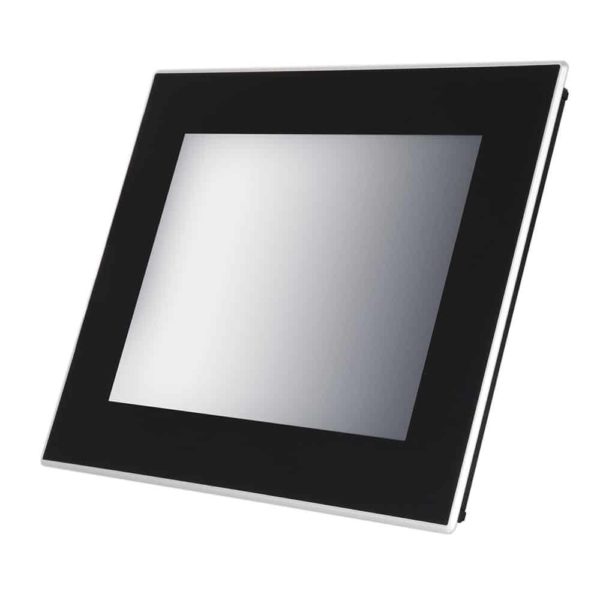

Slim and Fan-free 5-wire Resistive Touch Panel PC with Wide Temperature Support Powered by Intel® Apollo Lake-I Qual-core Processor

Features

  • A Rugged Fan-less and Cable-less Touch Panel PC
  • Industrial panel display from 10.4″ to 15″ (4:3)
  • Available for both Resistive single touch screen and P-CAP multi-touch screen
  • Wide Operating Temperature Support with Fan-less Design (-25~60℃)
  • Wide DC 12~24V Input

–Quad-core Processor with Gen9 Graphic

–Intel® Apollo Lake Atom™ x7-E3950 provides over 2 times higher
GPU computing power than Intel Baytrail processor

–Extended life cycle

– Slim and Light / Fan-less and Cable-less

– Panel & VESA mount support

– Removable HDD tray

– 1x Full-size mini PCIe socket for WIFI/LTE

– Different I/O extension options

– 3H anti-scratch surface

– Single-touch by pressure

– Support heavy industrial gloves touch for factory use

Description

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA3 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

Model Name FUDA3-S1012
Display
LCD Size 10.4″
Resolution XGA 1024 x 768
Brightness 450 cd/m²
Contrast Ratio 3000:1
Backlight LED type
Touch Window 5-Wire Resistive Single Touch
System
SOC Intel®  Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Memory DDR3L SO-DIMM 1866 MHz up to 8 GB
BIOS AMI
Graphics Intel® HD Graphics 505
LVDS Single/ Dual Channel 24-bit
LAN Chipset Dual Intel® Gigabit Ethernet Chipset
Audio N/A
Watchdog Timer Programmable 1 ~ 255 sec
Storage Device 1 x 2.5″ SATA HDD / SSD, 1 x Mini-mSATA
OS Windows 10/ Linux™
I/O Interface
Series Port 2 x RS-232/422/485 (Expansion : Option 0)
Display 1 x HDMI®
USB 1 x USB OTG, 2 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0)
Ethernet 2 x Gigabit Ethernet
Others 1 x SMA Antenna hole for WiFi/LTE Solution
Expansion 1 x Full-size Mini-PCIe socket
1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper
2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1)
Mechanical
Dimension(mm)(WxDxH) 314 x 253 x 50.2 mm
Mounting (mm) VESA Mount 75 x 75& 100 x 100; Panel Mount
Weight (Kg)(N) 3.5 Kg
Weight (Kg)(N) 5.8 Kg
Power
Power Supply DC 12 ~ 24V input with 3-pin Terminal Block Connector
Consumption (Max) 33.5W (12V); 33.6W (24V)
Consumption (Min) 11.8W (12V); 14W (24V)
Environmental
OP /Storage Temp -25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Vibration 1.0G (SSD) and 0.5G (HDD) , Power on ; 2.16G, Packaged; 5~500Hz, IEC 60068-2-6
Shock 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Drop Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
IP Protection IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificate CE/FCC Class A, UKCA, EN62368-1, EN61000-6-2
Ordering Guide
AL6-3290 (R)ATO.FUDA3-S1012-0000-00. 10.4″ Intel® Apollo Lake E3950 5-wire Resistvie Touch Panel PC with PW Overlay
AL6-3295 (R)ATO.FUDA3-S1212-0000-00. 12.1″ Intel® Apollo Lake E3950 5-wire Resistvie Touch Panel PC with PW Overlay
AL6-3289 (R)ATO.FUDA3-S15112-0000-00. 15″ Intel® Apollo Lake E3950 5-wire Resistvie Touch Panel PC with PW Overlay

Support

(Documents & Downloads)

  Catalog   Catalog_FUDA3_S1x12_Single-Touch_Series.pdf | Catalog    July 5, 2022
2.4 MB 2350 Downloads
      BIOS   BIOS_FUDA3_R100E1_Update.zip | BIOS R1.00.E1   July 5, 2022
    9.6 MB 1366 Downloads
        Driver   Driver_FUDA3_B4729070_ZQ802XRACB2-AJ_WiFi_BT_Module_Driver.zip | Driver 3.00.0021   July 5, 2022

      B4729070 ZQ802XRACB2-AJ Realtek Wireless PCIe Chipset & Bluetooth Driver

      96.6 MB 1355 Downloads
        Driver   Driver_FUDA3_Nuvoton_Serial_HighSpeed_Setup_1.1.zip | Driver 1.1   July 5, 2022

      Nuvoton Serial HighSpeed Driver

      3.7 MB 1542 Downloads
        Driver   Driver_FUDA3_Intel_Apollo_Lake_TXE_pv_hf_3.1.50.2244_2.zip | Driver 3.1.50.2244   July 5, 2022

      Intel Apollo Lake TXE Driver

      268.32 MB 1246 Downloads
        Driver   Driver_FUDA3_Intel_Serial_IO_30.100.1750.1_APL_PV_RS3.zip | Driver 30.100.1750.1   July 5, 2022

      Intel Serial IO Driver

      2.7 MB 1459 Downloads
        Driver   Driver_FUDA3_Intel_Ethernet_23.2.zip | Driver    July 5, 2022

      Intel Ethernet Driver

      840.55 MB 1371 Downloads
        Driver   Driver_FUDA3_Intel_Graphic_driver_win_101.1121.zip | Driver 101.1121   July 5, 2022

      Intel Graphic Driver

      1.09 GB 1327 Downloads
        Driver   Driver_FUDA3_Intel_Chipset_driver 3.10.zip | Driver 3.1   July 5, 2022

      Inel Chipset Driver

      4.9 MB 1445 Downloads
        Driver   Driver_FUDA3-S1x12_eGalaxTouch_5.12.0.12204-Release131204.zip | Driver 5.12.0.12204   July 5, 2022

      eGalaxTouch Driver

      9.7 MB 1442 Downloads
          User’s Manual   Manual_FUDA3-S1x12_V1.0.pdf | Manual V1.0   July 4, 2022

        FUDA3-S1x12 User’s Manual

        3.2 MB 887 Downloads
            Certificate   Certificate_FUDA3-S1x12.zip    July 5, 2022

          FUDA3-S1X12 Series CE FCC Safety Certification

          428.9 KB 1610 Downloads
              Drawing   Drawing_FUDA3 Series Assembly OUTDIM.zip | Drawing    July 4, 2022

            FUDA3 Series Outline drawing

            2 MB 1734 Downloads
                Software   Software_FUDA3_20220623_Unified_PET_4.4.39.zip | Software FUDA3 Portwell Engineering Tool   July 5, 2022

              FUDA3 Portwell Engineering Tool

              11.3 MB 1512 Downloads
