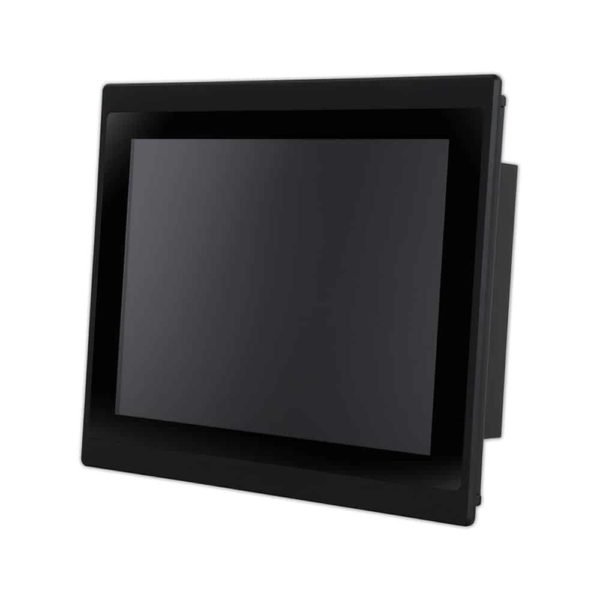

FUDA3-S1222

Slim and Fan-less Projective Capacitive Touch Panel PC with Wide Temperature and Panel Mount Support Powered by Intel^® Apollo Lake-I Quad-core Processor

Features

High-Performance CPU & Fanless Wide-Temp Design
Powered by Intel® Atom™ x7-E3950 Quad-Core (up to 2.0 GHz, 12 W TDP) in a fanless, cableless chassis, supporting –25 °C to 60 °C operation for reliable performance in harsh environments.
Industrial-Grade Projective Capacitive Multi-Touch
Features 10-point projected capacitive touch with excellent industrial noise immunity (CS 10 Vr m), radiated susceptibility up to 50 V/m, premium water resistance, and glove support.
Multi-Size High-Brightness XGA Display
Available in 10.4″, 12.1″, and 15″ XGA (1024×768) panels with 450/600/450 cd/m² brightness and up to 3000:1/700:1 contrast, LED backlight, and true-flat IP65 front bezel for crisp, clear visuals.
Versatile I/O & Expansion
Includes DC 12–24 V input, dual Gigabit Ethernet, HDMI, USB OTG, 2× USB 3.0, and BIOS-selectable 2× RS-232/422/485; various extension I/O kits available to meet diverse industrial requirements.
Rugged Industrial Chassis
IP65-rated front (IP20 rear), slim 27.2–31 mm profile, VESA 75×75/100×100 and panel mount support; certified for 1.0 G (SSD) / 0.5 G (HDD) vibration, 15 G shock, and 96.5 cm packaged drop per IEC 60068-2-6/-27 standards.

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA3 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

Model Name	FUDA3-S1022	FUDA3-S1222	FUDA3-S1522
LCD Size	10.4″	12.1″	15″
Resolution	XGA 1024 x 768	XGA 1024 x 768	XGA 1024 x 768
Brightness	450 cd/m²	600 cd/m²	450 cd/m²
Contrast Ratio	3000:1	700:1	700:1
Backlight	LED type
Touch Screen	Projected Capacitive Multi-Touch (10 points)
System
SoC	Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Memory	DDR3L SO-DIMM 1866 MHz up to 8 GB
BIOS	AMI
Graphics	Intel® HD Graphics 505
LVDS	Single/Dual Channel 24-bit
LAN Chipset	Dual Intel® Gigabit Ethernet Chipset
Audio	N/A
Watchdog Timer	Programmable 1–255 sec
Storage Device	1 x 2.5″ SATA HDD/SSD, 1 x Mini-mSATA
OS	Windows 10/Linux®
I/O Interface
Series Port	2 x RS-232/422/485 (Expansion: Option 0)
Display	1 x HDMI
USB	1 x USB OTG, 2 x USB 3.0	1x USB OTG, 2x USB 3.0, 2x USB 2.0 (Expansion: Option 0)
Ethernet	2 x Gigabit Ethernet
Others	1 x SMA Antenna hole for WiFi/LTE Solution
Expansion	1 x Full-size Mini-PCIe socket 1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper	1 x Full-size Mini-PCIe socket 1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper 2 x RS-232/422/485, 1 x RS-232 (Expansion: Option 1)
Mechanical
Dimension (mm)	282 x 238 x 57.3 mm	305 x 260 x 58.2 mm	384 x 310 x 56.6 mm
Mounting (mm)	VESA Mount 75 x 75, 100 x 100: Panel Mount
Weight (Kg)(N)	3.5 Kg	3.9 Kg	5.1 Kg
Weight (Kg)(G)	5.8 Kg	6.0 Kg	7.8 Kg
Power Supply	DC 12–24V input with 3-pin Terminal Block Connector
Consumption (Max)	33.5W (12V); 33.6W (24V)	40.9W (12V); 39.4W (24V)	40.5W (12V); 40.2W (24V)
Consumption (Min)	11.8W (12V); 14W (24V)	12W (12V); 12.3W (24V)	11.2W (12V); 12W (24V)
Environmental
OP/Storage Temp	-25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Vibration	1.0G (SSD) and 0.5G (HDD), Power on: 2.16G, Package: 5–500Hz, IEC 60068-2-6
Shock	15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Package	Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
IP Protection	IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificate	CE/FCC Class A; UKCA. EN 62368-1, EN 61000-6-2, EN 61000-6-4

Ordering Guide

AL6-3292	(R).ATO. FUDA3-S1022-0000-00.10.4″ Intel® Apollo Lake E3950 Projective Capacitive Touch Panel PC
AL6-3296	(R).ATO. FUDA3-S1222-0000-00.12.1″ Intel® Apollo Lake E3950 Projective Capacitive Touch Panel PC
AL6-3291	(R).ATO. FUDA3-S1522-0000-00. 15″ Intel® Apollo Lake E3950 Projective Capacitive Touch Panel PC
