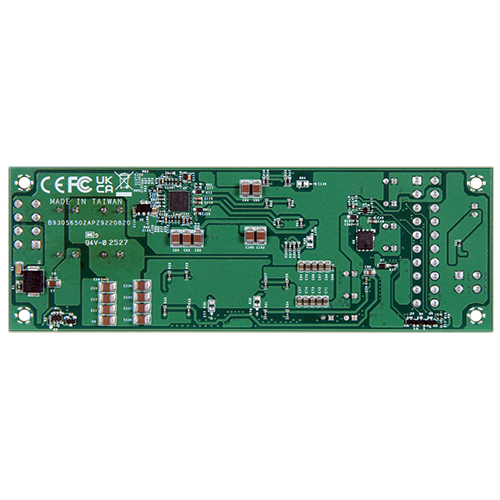

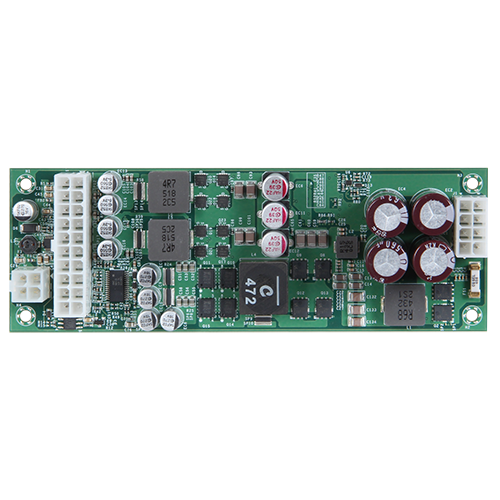

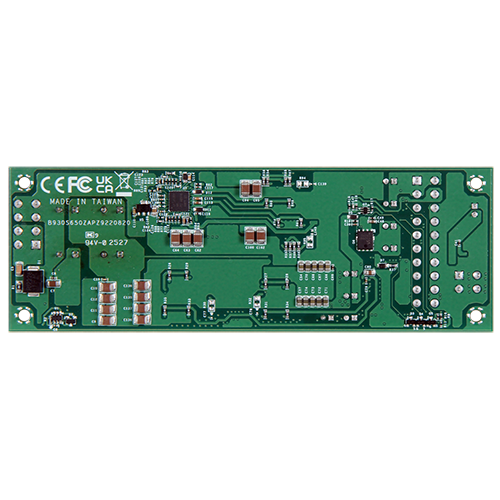

GADIWA-B9220 is a wide-input DC-to-DC board-mounted converter delivering up to 220W of continuous output power for industrial applications.
GADIWA-B9220 offers a compact and cost-efficient design, supports low-airflow environments, has passed industrial-grade EMC testing, and is manufactured on an automated production line to ensure high quality and reliable performance.
| SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9 VDC-36 VDC | ||||||||
| Wattage | 220W | ||||||||
| Form Factor | Power Baord | ||||||||
| MTBF(hrs) | 420,000 @55°C | ||||||||
| Temperature/ Humidity | Operating: -40°C ~ 80°C, 5% ~ 95%RH | ||||||||
| Storage: -40°C ~ 85°C, 5% ~ 95%RH | |||||||||
| EMC & Safety | CE, FCC, EN 61000-6-2 (Industrial Immunity), EN 61000-6-4 (Industrial Emission) | ||||||||
| Dimension(WxHxD) | 150 x 27 x 51 (mm) | ||||||||
| DC OUTPUT | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| +12 V | +5V | +5Vsb | +3.3V | +12 V | |||||
| Max. Load | 15A | 10A | 2A | 8A | 0.1A | ||||
| 220W | |||||||||
| Min. Load | 0A | 0A | 0A | 0A | 0A | ||||
| Ripple | 120mv | 50mv | 50mv | 50mv | 120mv | ||||
| Category | Product | P/N | Description |
|---|---|---|---|
| GADIWA | GADIWA-B9220 | APZ-3063 | 220W DC/DC 9-36V input/ATX output Board type Converter |
