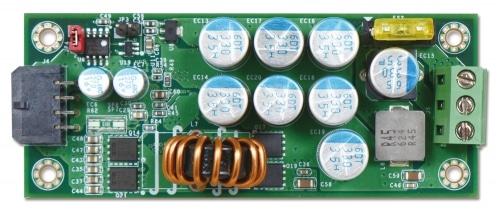

GADIWA-R9141

140W DC/DC 9~32V input/ 12V output Board type Regulator

Features

  • 9~32V/Wide-input, 12V/output Regulator with ATX connector with board output
  • Compact and user-friendly design for installation and maintenance
  • Fan-less design for mission-critical application
  • -40°C to 75°C wide temperature support-40°C to 75°C wide temperature support

Description

GADIWA-R9141 is a DC to DC 9V~32V input to 12V output board type Regulator. It normally support continuous 140 Watts and peak 160 Watts.

GADIWA-R9141 can save more space, less than 1U width, and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance. production line; therefore, it can provide high quality and performance.

Specification

Input Voltage 9V~32V
Output 12V 140Watts / 160 Watts Peak
Efficiency > 95% @12V, 12A output, 25°C
MTBF 420,000hrs @ 55°C
EMI & Safety Approval CE, FCC
Input Connector 9V~32V 3 pin TBC
Output Connector Mini-Fit 8 pin
Dimension (WxDxH) 93.4 x 38 x 20 mm
Operation Temperature -40°C ~ 75°C

Ordering Guide

Ordering Guide
GADIWA-R9141
140W 9V~32V input to 12V output DC to DC Power module.Wide Temperature
