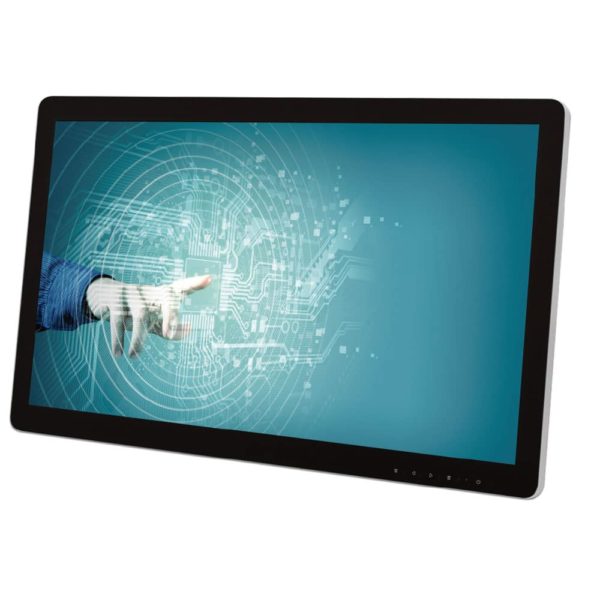

Stylish, Slim and P-CAP Touch Monitor with Fanless Design. Suitable for Displaying Information in Various Environment.
As the entry product of LEAD series, Portwell Display or PD shares the fantastic stylish appearance and design common to Portwell products. This allows our customers to adopt the PD in the environment that needs to face end users. The full HD and ten-point multi-touch panel can provide the best user experience. The various I/O allows our customers to input information from different sources. This low-cost entry monitor will be your best choice for the occasions that don’t need any computing power.
| Model Name | LEAD-PD-2360 |
| Part Number | AL8-3082 |
| Display | |
| LCD Size | 21.5″ / 23.6″ |
| Resolution | FHD 1920 x 1080 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000: 1 |
| Panel Type | TN |
| Viewing Angle | 170° (H) / 160° (V) |
| Touch Screen | Projected Capacitive Multi-Touch |
| System | |
| SOC | N/A, Monitor Only |
| Memory | |
| LAN Chip | |
| Audio Codec | |
| Storage Device | |
| OS | |
| I/O Interface | |
| Serial Port | N/A |
| Display | Input: 2 x HDMI®, 1 x VGA |
| USB | Upstream: 1 x USB 2.0 Type B Downstream: 1 x USB 2.0 Type A |
| Ethernet | N/A |
| Audio | 2 x 2W Speaker, 1 x Line out, 1 x Line in |
| OSD Key | Power / Menu / Right / Left / Auto |
| Power | |
| Power Input | DC 20V via DC Jack |
| Power Supply | 45W AC-DC Adapter, Power Cord |
| Environmental | |
| Mounting (mm) | Standalone: VESA® Mount 75 x 75 |
| Accessory | 1 x HDMI® cable, 1 x USB 2.0 Type B to A cable |
| OP / Storage Temperature | 0~40°C / -25~55°C |
| IP Protection | IP65 (Front) |
| Certificate | CE / FCC Class B |
| AL8-3081 | (R).LEAD-PD-2150. 21.5″ FHD Panel Touch Display w/ Touch, Black Housing, Built-in Stand. |
| AL8-3082 | (R).LEAD-PD-2360. 23.6″ FHD Panel Touch Display w/ Touch, Black Housing, Built-in Stand. |
