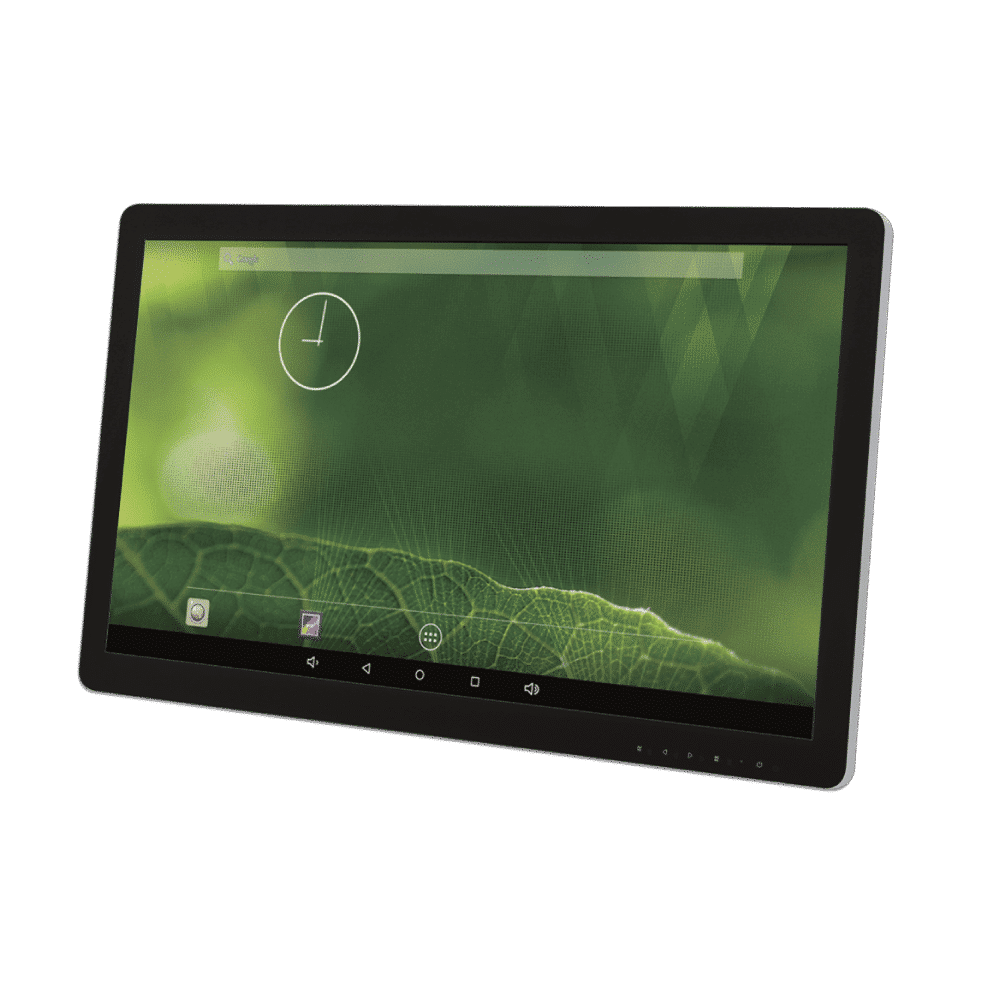

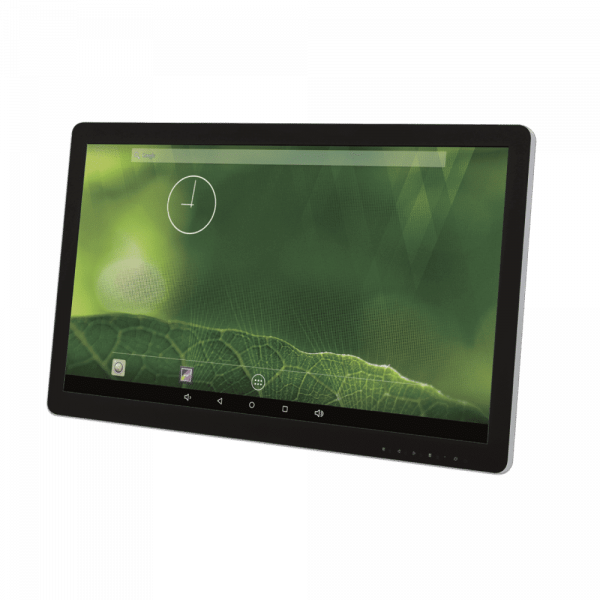

LEAD-PND-2360-AV

23.6" , 1 x HDMI®, 1 x DP, 1 x VGA, DC 12V via DC Jack, 40W AC-DC Adapter

Features

  • AllWinner® A83T Octa-Core Cortex™ A7 CPU
  • 1GB DDR3L on board
  • 16G eMMC on board
  • 10-Points Projective Capacitive Multi-Touch
  • 2 x 3W speaker
  • 2 x USB 2.0, 1 x HDMI®, 1 x DP, 1 x GbE
  • 1 x VGA or 1 x COM (Tx/Rx only)
  • Android 6.0

Video

Play Video

Description

Portwell Networking Display or PND has network connection ability with LAN port which adopts Gigabit Ethernet. With AllWinner A83T, PND is equipped with basic computing ability compared to PD. Combining the two features, PND is suitable for those who want to introduce IoT concept into their applications or environments. The OS adopts Android system, which provides users with high flexibility to fulfill their own sotiware requirement. The VGA/HDMI®/DP ports enclose the most common signal inputs now. PND provides users with the ability to control the OSD function by Tx/Rx of RS232 which further enhances the ability of PND and helps customers to easily adopt an IoT scenario.

Model Name LEAD-PND-2360-AV
Part Number AL6-3272
Display
LCD Size 21.5″ / 23.6″
Resolution FHD 1920 x 1080
Brightness 250 cd/m2
Contrast Ratio 1000: 1
Panel Type TN
Viewing Angle 170° (H) / 160° (V)
Touch Screen Projected Capacitive Multi-Touch
System
SOC AllWinner A83T Octa-Core Cortex™ A7 CPU
Memory 1GB DDR3L on board
LAN Chip Realtek® RTL8211E
Audio Codec 16G eMMC on board
Storage Device Android 6.0
OS Android 6.0
I/O Interface
Serial Port N/A
Display Input: 1 x HDMI®, 1 x DP, 1 x VGA
USB 2 x USB 2.0 1 x Micro USB for Touch only1 x Gigabit Ethernet
Ethernet 1 x Gigabit Ethernet
Audio 2 x 3W Speaker
OSD Key Power / Menu / Right / Left / Auto
Power
Power Input DC 12V via DC Jack
Power Supply 40W AC-DC Adapter
Environmental
Mounting (mm) Standalone: VESA® Mount 75 x 75
Accessory 1 x VGA cable
OP / Storage Temperature 0~50°C / -20~60°C
IP Protection IP65 (Front)
Certificate CE / FCC Class A
Ordering Guide
AL6-3276 (R).LEAD-PND-2150-AV. 21.5″ 12V AllWinner A83T Black Panel PC with Standard IO.
AL6-3275 (R).LEAD-PND-2150-AC. 21.5″ 12V AllWinner A83T Black Panel PC with Tx/Rx IO Replacing VGA.
AL6-3274 (R).LEAD-PND-2150-BV. 21.5″ 24V AllWinner A83T Black Panel PC with Standard IO.
AL6-3273 (R).LEAD-PND-2150-BC. 21.5″ 24V AllWinner A83T Black Panel PC with Tx/Rx IO Replacing VGA.
AL6-3272 (R).LEAD-PND-2360-AV. 23.6″ 12V AllWinner A83T Black Panel PC with Standard IO.
AL6-3271 (R).LEAD-PND-2360-AC. 23.6″ 12V AllWinner A83T Black Panel PC with Tx/Rx IO Replacing VGA.
AL6-3270 (R).LEAD-PND-2360-BV. 23.6″ 24V AllWinner A83T Black Panel PC with Standard IO.
AL6-3269 (R).LEAD-PND-2360-BC. 23.6″ 24V AllWinner A83T Black Panel PC with Tx/Rx IO Replacing VGA.
