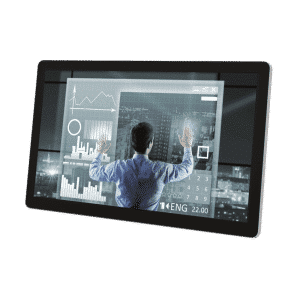

Stylish, Slim and P-CAP Touch Panel PC. Powered by Intel® Apollo Lake Dual-core Processor with Fanless Design
Portwell Panel PC or PPC provides the highest computing power for our customers by adopting Intel Apollo Lake dual-core processor E3930. By offering an optional operating system, users can choose either Windows 10, Android or Linux Ubuntu, which provides them with incredible flexibility. The Gigabit Ethernet is available and can be up to two ports. The bezel-free characteristic makes it also suitable to be placed at occasions that face end customers. The serial port control ability makes it still good for conventional industrial automation application.
| Model Name | LEAD-PPC-2360-A | |
| Part Number | AL6-3267 | |
| Display | ||
| LCD Size | 21.5″ / 23.6″ | |
| Resolution | FHD 1920 x 1080 | |
| Brightness | 250 cd/m2 | |
| Contrast Ratio | 1000: 1 | |
| Panel Type | TN | |
| Viewing Angle | 170° (H) / 160° (V) | |
| Touch Screen | Projected Capacitive Multi-Touch | |
| System | ||
| SOC | Intel® Atom® Dual-Core x5-E3930 (1.3GHz, up to 1.8GHz) | |
| Memory | 8G DDR3L / 1600 SO-DIMM | |
| LAN Chip | Intel® WGI210IT | |
| Audio Codec | Realtek® ALC892 | |
| Storage Device | 128G TLC mSATA | |
| OS | Windows 10 IoT / Android 6.0 / Linux™ Ubuntu 16.10 | |
| I/O Interface | ||
| Serial Port | 1 x RS-232/422/485 | |
| Display | Output: 1 x HDMI® | |
| USB | 2 x USB 3.0 | |
| Ethernet | 2 x Gigabit Ethernet | |
| Audio | 2 x 3W Speaker | |
| OSD Key | N/A | |
| Power | ||
| Power Input | DC 24V via 3-pin terminal block connector | |
| Power Supply | 60W AC-DC Adapter | |
| Environmental | ||
| Mounting (mm) | Standalone: VESA® Mount 75 x 75 | |
| Accessory | N/A | |
| OP / Storage Temperature | 0~50°C / -20~60°C | |
| IP Protection | IP65 (Front) | |
| Certificate | CE / FCC Class B | |
| AL6-3265 | (R). LEAD-PPC-2150-A. 21.5″ Panel PC with Intel Apollo Lake E-series Processer. Black. DC 12V in. 8G RAM. 128G TLC mSATA. ZQ802XRACB |
| AL6-3266 | (R). LEAD-PPC-2150-B. 21.5″ Panel PC with Intel Apollo Lake E-series Processer. Black. DC 24V in. 8G RAM. 128G TLC mSATA. ZQ802XRACB |
| AL6-3267 | (R). LEAD-PPC-2360-A. 23.6″ Panel PC with Intel Apollo Lake E-series Processer. Black. DC 12V in. 8G RAM. 128G TLC mSATA. ZQ802XRACB |
| AL6-3268 | (R). LEAD-PPC-2360-B. 23.6″ Panel PC with Intel Apollo Lake E-series Processer. Black. DC 24V in. 8G RAM. 128G TLC mSATA. ZQ802XRACB |
