LYNX-612B

Harsh environment edge controller

Features

  • Intel® Celeron® Processor
  • Support 2x LAN and 1x M.2 for wireless module
  • Extended I/O interface of 2x Isolation LAN, 1x CANbus, and 1x 8 Channel GPIO
  • Heavy Industry EMC standard
  • Support customized appearance (Optional)
  • Support extended temperature (Optional)

Video

Play Video

Description

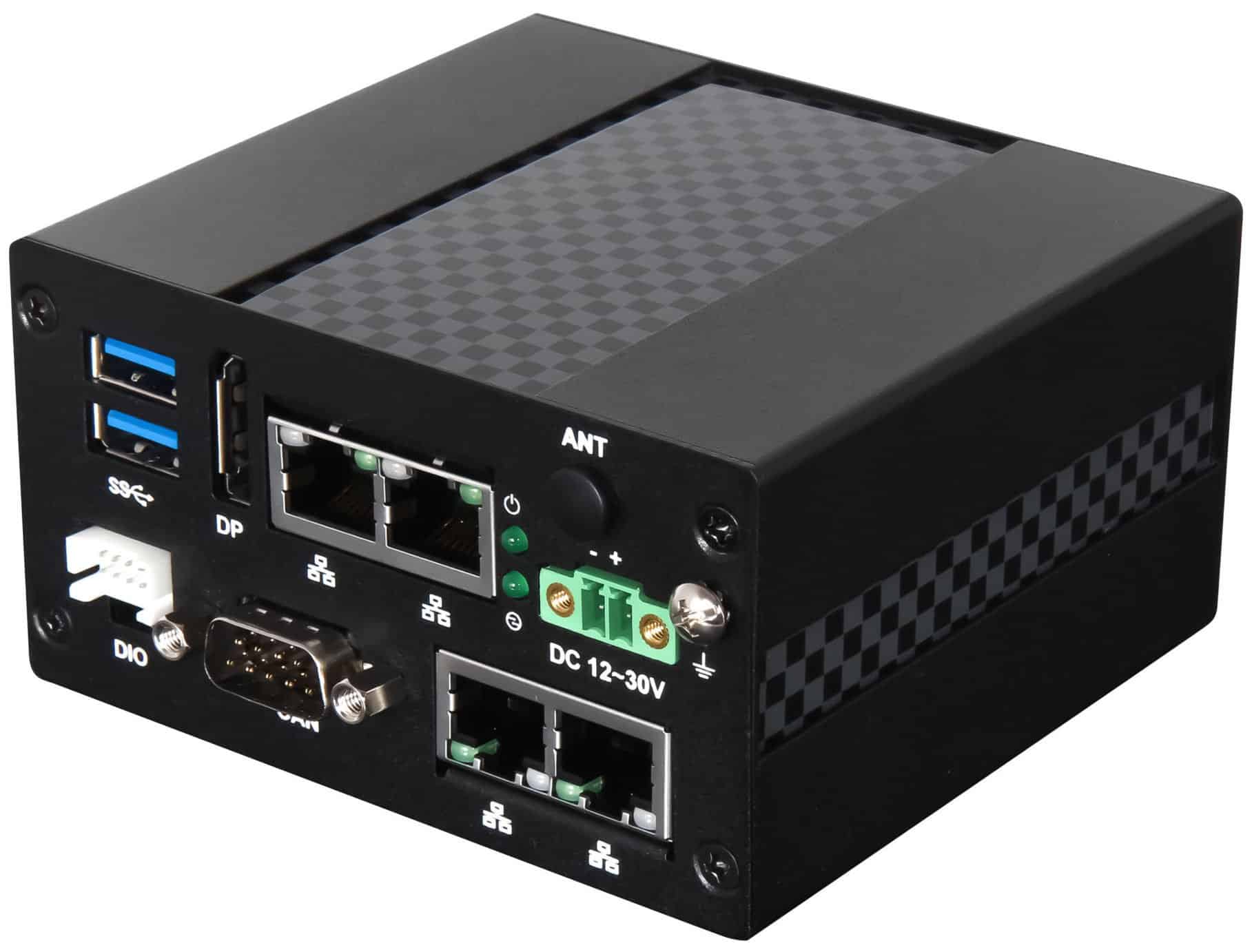

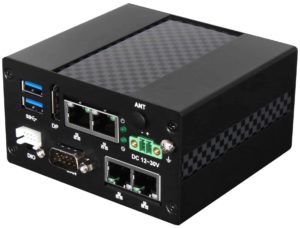

LYNX-612B is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. It’s CANbus can connect to different electronic unit and communicate with each other, 8 bit GPIO pins provide a programmable interface to read the state of a binary input device or control the on/off state of a binary output device, also with 4 LAN support in Palm-Sized dimension, LYNX-612B can easily work as IoT gateway.

Specification

General
Processor Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional)
Storage 32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
Power Input 12-30VDC (+/- 20%)
Operating System Windows® 10 IoT Enterprise (64bit) Yocto v2.7
Expansion 1x M.2 Key E 2230 for wireless module
Basic I/O Interface
Power Connector 1x 2-Pin Terminal Block
Ethernet 2x 10/100/1000 GbE (Intel® I210)
USB 2x USB 3.0
Display 1x DP v1.4 4096 x 2160 @ 60Hz
Extended I/O Interface
COM/ Console 1x RS-232/422/485(BIOS configurable)
Ethernet 2x Gigabyte Ethernet with Isolation
I/O 8 Channel GPIO
Expansion 1 x M.2 Key B 2242 for storage
1 x full-size Mini-PCIe
Certification
CE (EN 55032; EN 55024/ EN 55035)
CE (EN 61000-6-4; EN 61000-6-2)
FCC (Part 15 Subpart Class B)
LVD (EN 62368-1)
Environment & Mechanical
Storage Temperature -40 °C ~ 85 °C
Operating Temperature 0°C ~ 50°C
Permissible Humidity 5-95% RH operating, non-condensing
5-95% RH storage, non-condensing
Vibration 1G with DIN-rail mounting
5G with wall mounting (IEC/EN 60068-2-6)
Shock 15G with DIN-rail mounting
50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection IP 30
Dimension 100mm (W) x 53.5mm (H) x 92 mm (D)
Net Weight 0.53 KG
Mounting DIN-rail / Wall Mount
Optional Accessories
Power Adaptor 2-pin terminal block connector to DC jack cable
60W AC to DC Power Adaptor via DC jack
Video Adaptor DP to VGA/ DP to DVI-D
