LYNX-612G

IoT Gateway with enriched I/Os for expansion

Features

  • Intel® Celeron® Processor
  • Support 2x LAN and 1x M.2 for wireless module
  • Extended I/O interface of 2x RS-232, 4x USB2.0
  • Heavy Industry EMC standard
  • Support customized appearance (Optional)
  • Support extended temperature (Optional)

Video

Play Video

Description

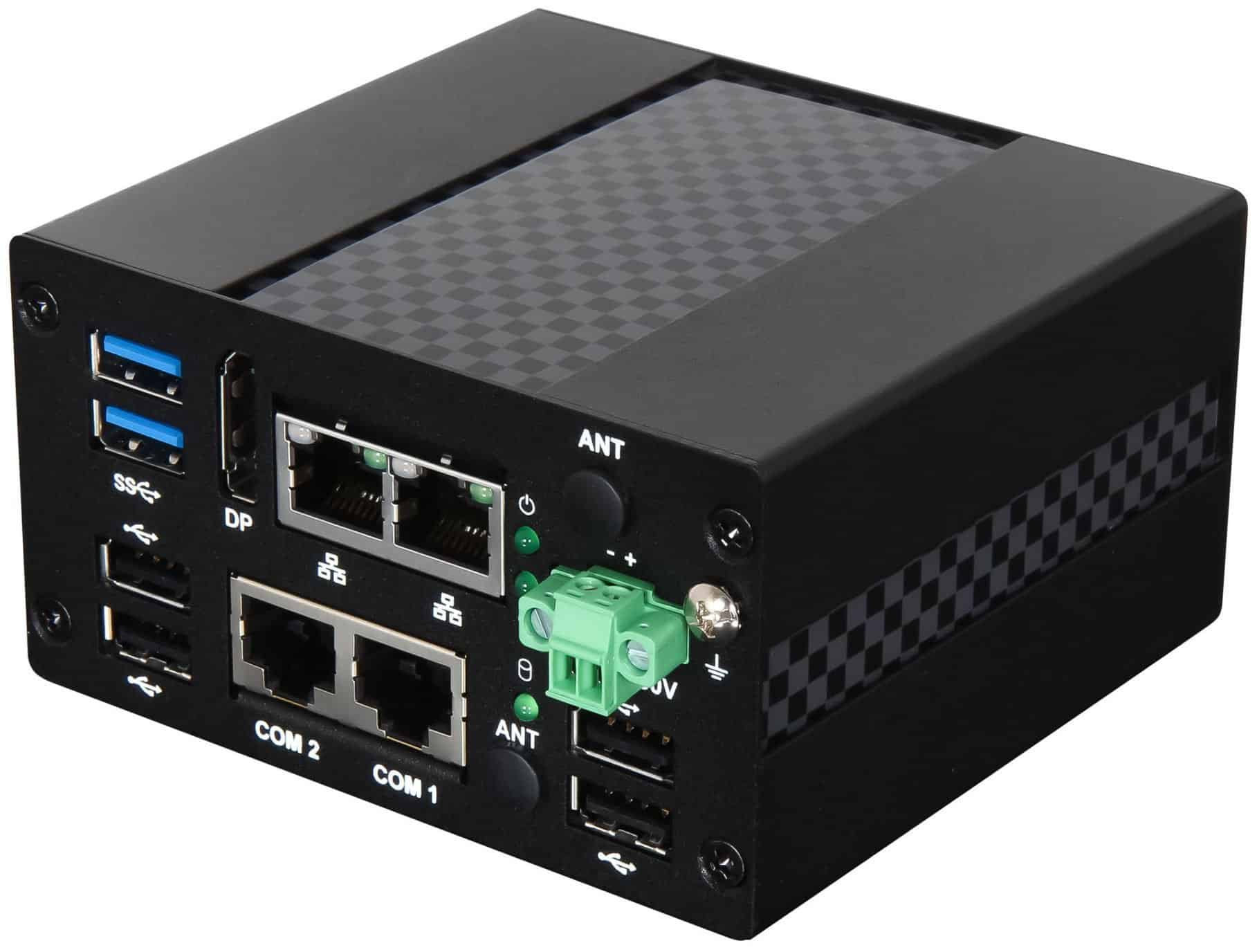

LYNX-612G is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. Targeting as an IoT gateway, the small system equips rich communication interfaces for data acquisition and server connection. Besides, reserved M.2 socket enables wireless function for remote controllability and manageability. Last but not least, it supports Universal IoT Connector Standard (UIC) to realize fast and easy cloud connectivity.

Specification

General
Processor Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional)
Storage 32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
Power Input 12-30VDC (+/- 20%)
Operating System Windows® 10 IoT Enterprise (64bit) Yocto v2.7
Expansion 1x M.2 Key E 2230 for wireless module
Other TPM 2.0 onboard
Basic I/O Interface
Power Connector 1x 2-Pin Terminal Block
Ethernet 2x 10/100/1000 GbE (Intel® I210)
USB 2x USB 3.0
Display 1x DP v1.4 4096 x 2160 @ 60Hz
Extended I/O Interface
COM/ Console 2x RS-232
USB 4x USB 2.0
Expansion 1 x M.2 Key B 2242 for storage
1 x full-size Mini-PCIe
Certification
CE (EN 55032; EN 55024/ EN 55035)
CE (EN 61000-6-4; EN 61000-6-2)
FCC (Part 15 Subpart Class A)
LVD (EN 62368-1)
Environment & Mechanical
Storage Temperature -40 °C ~ 85 °C
Operating Temperature 0°C ~ 50°C
Permissible Humidity 5-95% RH operating, non-condensing 5-95% RH storage, non-condensing
Vibration 1G with DIN-rail mounting 5G with wall mounting (IEC/EN 60068-2-6)
Shock 15G with DIN-rail mounting 50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection IP 30
Dimension 100mm (W) x 53.5mm (H) x 92 mm (D)
Net Weight 0.53 KG
Mounting DIN-rail / Wall Mount
Optional Accessories
Power Adaptor 2-pin terminal block connector to DC
jack cable 60W AC to DC Power Adaptor via DC jack
Video Adaptor DP to VGA/ DP to DVI-D
Console Adaptor RJ45 to Console cable 1.8 M

Support

(Documents & Downloads)

  Catalog   Catalog_Application Note LYNX Series | Catalog 20210819   August 18, 2021

LYNX Series, Palm-Size Power and Innovation for Integrated IIoT Solutions Based on Intel Celeron® N3350

596.8 KB 12833 Downloads
  Catalog   LYNX-612G | Catalog    March 29, 2021
561.33 KB 2967 Downloads
    No downloads found!
        Driver   Driver_LYNX-series_23.2.zip | Driver 23.2   November 11, 2021

      This release includes software and drivers for Intel(R) adapters and integrated network connections

      72.4 MB 1828 Downloads
        Driver   Driver_LYNX-series_serialio_30.100.1750.1_apl_pv_rs3 | Driver 30.100.1750.1_apl_pv_rs3   November 11, 2021

      Intel® Serial IO Driver

      2.9 MB 1979 Downloads
        Driver   Driver_LYNX-series_26.20.100.7212.zip | Driver 26.20.100.7212   November 11, 2021

      Supports Intel(R) UHD /HD /Iris(R) Plus Graphics on the Platforms and Operating

      352.12 MB 1867 Downloads
        Driver   Driver_LYNX-series_10.1.17541.8066-public-mup.zip | Driver 10.1.17541.8066-public-mup   November 11, 2021

      The Intel(R) Chipset Device Software

      5.2 MB 1966 Downloads
        Driver   Driver_LYNX-series_3.1.50.2222.zip | Driver 3.1.50.2222   November 11, 2021

      Apollo Lake_I_Platform_Intel(R)_TXE_3_1_50_2222

      521.33 MB 1755 Downloads
          User’s Manual   Manual_LYNX-6000-Series_V1.0 | Manual v1.0   August 30, 2021
        616.1 KB 1347 Downloads
            Certificate   Certification_LYNX-Series | Certification 20200830   August 30, 2021
          3.1 MB 2130 Downloads
