| General | |
|---|---|
| Processor | Intel®10th Gen Core™ Processors CPU in LGA1200 package, up to 65W |
| Chipset | Intel®Q470E |
| BIOS | AMI uEFI BIOS |
| Memory | 2x 260-pin DDR4 SODIMM sockets supported Data transfer rates up to 2400/2666/2933 MT/s 128GB |
| Storage | – Support 2x 7-pin SATA III port – 1x M.2 M key 2280 (PCIe x4,SATA) |
| Watchdog Timer | Programmable watchdog timer, time out period from 1 sec to 255 secs. |
| Hardware Monitoring | System monitor (Voltage,Fan Speed and Temperature) |
| Expansion Interface | – 1 x PCIe x16 Gen3 slot – 1 x M.2 E key 2230 (PCIe x1, USB) – 1 x M.2 M key 2280 (PCIe x4, SATA) – 1 x PCIe x1 Gold Finger (include 2x PCIe x1 signal, co-lay with M.2 M Key PCIe x4) |
| TPM | TPM 2.0 |
| I/O Interface | |
| Embedded Controller | IT5121 |
| Audio | – Realtek® ALC897 HD codec – Combo audio jack |

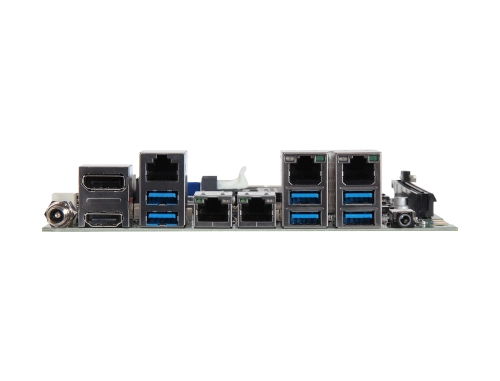

| Ethernet | – 3x RJ45 connectors on rear I/O with Intel®i225LM – 1x RJ45 connectors on rear I/O with Intel®i219LM |
| Serial Port | 1x RS-232/422/485 (RJ45 type) on rear I/O |
| USB | – 6x USB 3.1 Gen 1 (5Gb/s) on rear I/O – 3x USB 2.0 on board pin header |
| GPIO | 8-bit configurable controlled by embedded controller |
| Display | |
| Graphic Controller | – Intel®UHD Graphics 630 supports DirectX 12, OpenGL 4.5 – Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9 |
| Display Interface | – LVDS: Dual channel 2bit LVDS on board, resolution up to 1920 x1200 – DP port on rear I/O, resolution up to 4096×2160 – HDMI® port on rear I/O, resolution up to 4096×2160 |
| Mechanical& Environment | |
| Dimensions | 170mm(L) x 170mm(W) |
| Power Supply | 12V DC input or ATX Power input |
| Environment | – Operating temperature: 0°C ~ 50°C – Storage Temperature: -20°C ~ 80°C – Relative Humidity: 5% ~ 95%, non condensing |
| MTBF | Over 100,000 hours at 40°C |
