MEDN-51040

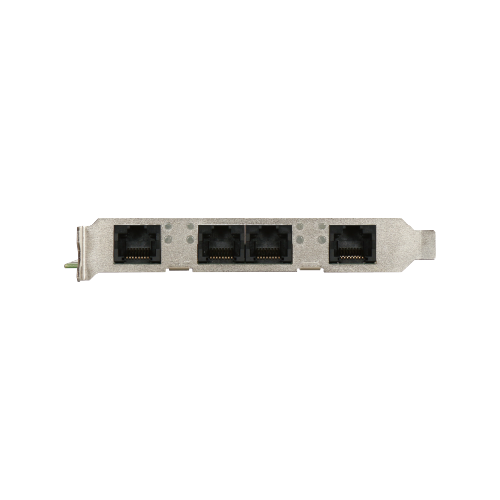

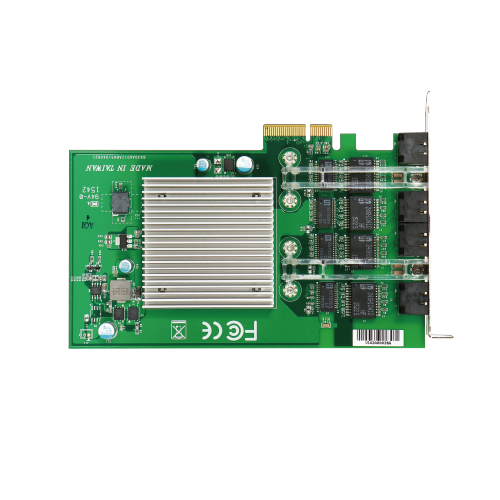

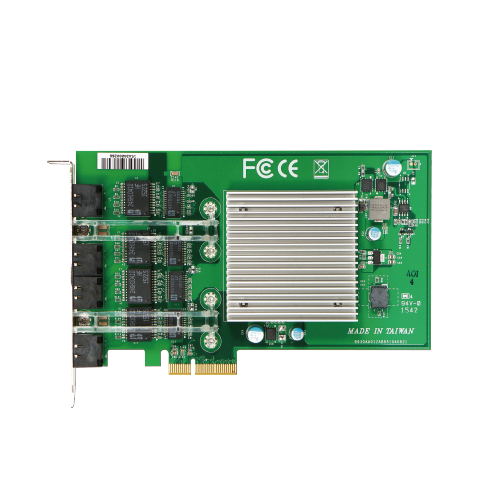

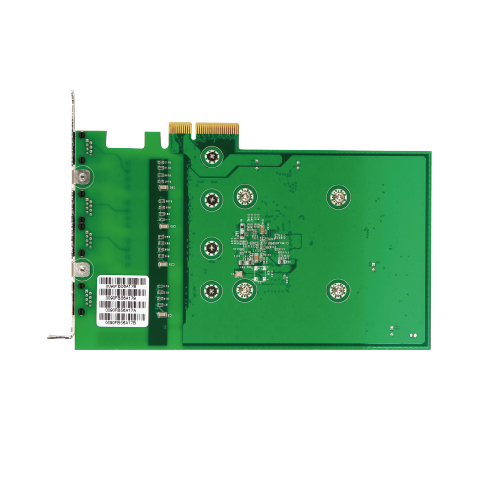

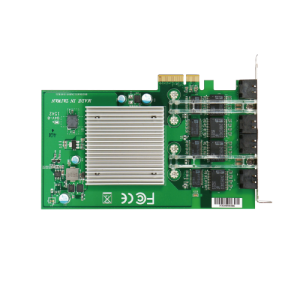

Medical Grade Isolation LAN card. Intel® PCIe x4 Quad 1000GBASE-T Ports

Features

  • Intel® i350 LAN chipset
  • Medical isolation according to IEC60601-1
  • 4 TX and RX queues (per port)
  • 1 Gb/s Ethernet IEEE 802.3, 802.3u,802.3ab PHY specifications compliant
  • Network isolator: RJ45 in/out dielectric strength: 4KV, IEC60601-1
  • Jumbo frames support for packets up to 9.5KB
  • IEEE802.3az-Energy Efficient Ethernet (EEE)
  • TCP/ UDP/ IP stateless offload

System
OS Support Windows
LAN Controller Intel® Gigabit Ethernet Controller
Ethernet of Ports Quad 1GbE Ethernet ports
Interconnect 4x RJ45, Unshielded female connector
Bus Type x4 lane, operable in x4, x8, x16 slots 2.5 Gbps uni-directional, 5Gbps bi-directional
Operating Environment 0°C ~ 45°C
Storage Environment -20°C ~ 70°C
Dimension 174.625mm(W) X 106.68mm(D) X 18mm(H)
Miscellaneous Standard height short card w/ full height bracket
Certification FCC, CE, IEC/EN 60601-1
