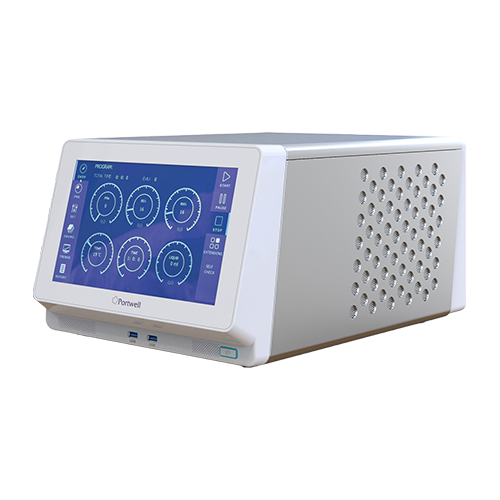

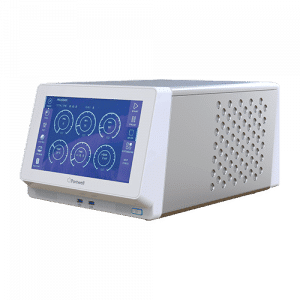

MEDS-7082

Features

  1. Support Intel Gen 12th /13th /14th processor up to 65W
  2. PCIe x16 slot supports for GPU or FPGA, PCIE x1 slot or PCIE x4 support  for video capture and video stream
  3. 900W medical grade power supply
  4. Simple chassis assembly design, Unique thermal solution

Specification

Specifications
System
Processor Socket LGA1700 for Intel® 12th/13th/14th Generation Core processors i7/i5/i3, up to 65W
Chipset Intel® Q670E
Memory 2x DDR5 SO-DIMM 4800 memory up to 64GB
Storage 1x M.2 Type M 2280, 2x 2.5” SSD
H/W Status Monitor Temperature (CPU & System), Voltage (CPU Vcore,12V,5V,3.3V)
Expansion Interface 1x PCIe x16 Gen5, 1x PCIe x4 Gen3 (x4 or x1 signal selectable), 1x PCIe x1 Gen3
Optional 1x M.2 key E Wi-Fi

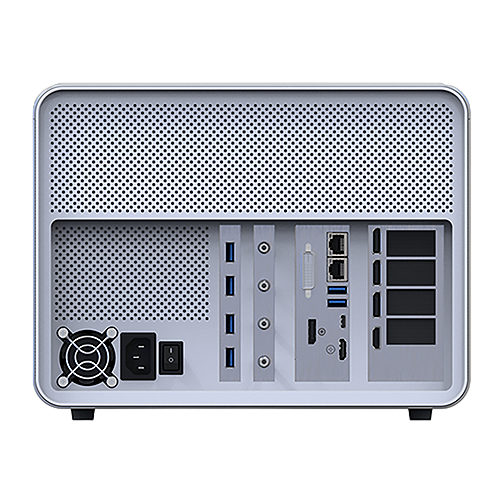

I/O Interface
Serial Port N/A
USB
  • 2x USB 3.2 (Gen2) ports
  • 1x USB3.2 (Gen2 x2) type-C port
  • 2x USB 2.0 (on Carrier board)
Audio N/A
Ethernet 2x RJ-45 connector based on Gigabit Ethernet
Display

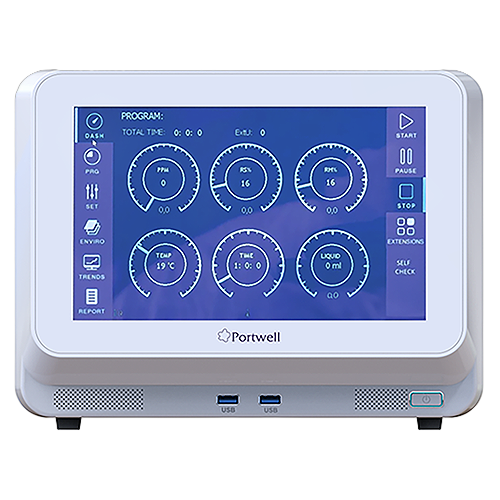

  • 10.1” display (1280×800)
  • 1x HDMI up to 4096×2160 @ 30Hz (Depends on SBC motherboard)
Power Supply
Power Input 900W Flex ATX medical Power Supply
Mechanical & Environmental
Operation Temperature -5°C ~ 40°C
Storage Temperature -40°C ~ 70°C
Dimension 310(W) * 204(H) * 423(D) mm
Cooler
  • 1x 4200RPM CPU Cooler
  • 1x 60*60mm 4800RPM System fan
