Portwell / Products / Medical-Grade Computers / Medical Panel PCs / MEDS-M2400
| Display | |
| Size | 23.6 |
| Resolution | FHD 1920 x 1080 |
| Brightness | 250 nits |
| Contrast Ratio | 1000 : 1 |
| Backlight | LED type |
| Viewing Angle | 170° (H)/160° (V) |
| Touch Screen | Projected Capacitive Multi-Touch |
| I/O Interface | |

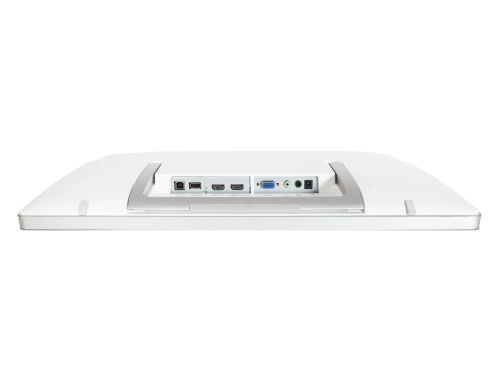

| Display | – 2x HDMI® – 1x VGA |
| USB | 1x USB 2.0 (Downstream), 1x USB 2.0 (Upstream) |
| Audio | – 2x 2W Speaker – 1x Line out – 1x Line out |
| DC input | 20V DC Jack |
| Power | |
| Power Consumption | 45W (Max.) |
| Power Requirement | DC 20V input with Power Adapter |
| Mechanical & Environmental | |
| IP Protection | IP65 (Front) |
| OP Temperature | 0°C ~ 40°C |
| Dimensions | 561.9(W) × 353.4(H) × 42.9(D)mm |
| Color | White/ Black |
| Net Weight | 4.6kg |
| Mounting | Standalone, VESA 75mm x 75mm |
| Certifications | CE/ FCC Class B |
