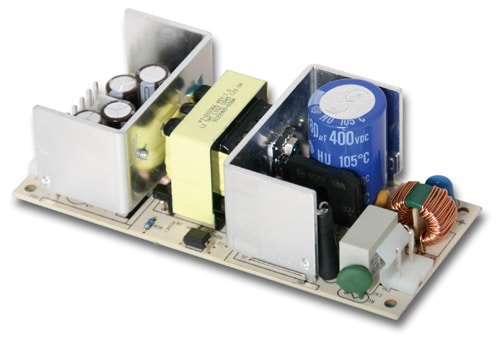

MPE-008A-P

80W universal input open-frame power supply

Features

  • 60W convection cooling and 80W forced air-cooling
  • Conductive EMI Meets CISPR/FCC Class B
  • 2″ x 5″ compact size dual output
  • A ray leakage current <100uA

Specification



Specifications
Input Voltage 90V ~ 264V AC
Input Frequency 47 ~ 63 Hz
Input Current 2A@115V; 1A@230V
Efficiency > 80%
Holdup Time 16 ms at full load
Over Voltage Protection Automatic recovery up on of over voltage condition. Trigger point is at about 5.8V ~ 6.8V
MTBF 130,000 hrs
EMI & Safety Approval UL, cUL, TUV, CE, CCC
Temperature/
Humidity
Operating: -20oC ~ 50oC, 5% ~ 95%RH
Storage: -20oC ~ 85oC, 5% ~ 95%RH
Dimension
(WxDxH)
50.8 x 127 x 40 mm; 2.0” x 5” x 1.57”

Ordering Guide

Ordering Guide
MPE-008A-P
80W universal input open-frame power supply
