Portwell / Products / Systems / Industrial Power Supplies / MPE-8071
| Input Voltage | 90V ~ 132V, 180V ~ 264V AC Auto-range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 2A@115V; 1A@230V |
| Efficiency | > 70% |
| Holdup Time | 16 ms at full load |
| Over Voltage Protection | +5V: 5.6 ~ 6.6V; +3.3V: 3.6 ~ 4.2V; +12V: 13.2 ~ 14.6V |
| Over Power/ Load Protection |
Output power over 110% ~ 160% |
| MTBF | 130,000 hrs |
| EMI & Safety Approval | UL, cUL, TUV, CE, FCC |
| Temperature/ Humidity |
Operating: 0 ~ 50oC, 20 ~ 90%RH Storage: -40 ~ 85oC, 5 ~ 95%RH |
| Dimension (WxDxH) |
76.2 x 127 x 38.6 mm; 3” x 5” x 1.5” |

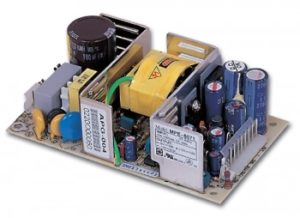

| MPE-8071 70W universal input open frame power supply |
