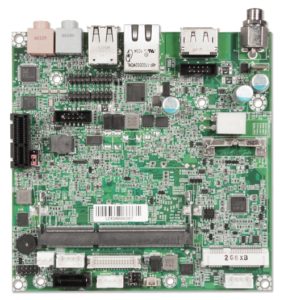

Intel® AtomTM D2550 processor based NANO-ITX Board with dual display, Gigabit Ethernet, Audio, USB, CF-SATA and SATA


  • Intel® Atom™ D2550 1.86GHz processor based on Intel® NM10 platform
  • One 204-pin SODIMM supports DDR3 up to 4GB
  • Multiple display by VGA, DP, single channel 24 bit LVDS
  • Supports one CF-SATA socket and one SATA port
  • One Mini-PCIe socket and PCIe x1 slot for expansion
  • Supports DC 12V input


NANO-5050 adopts latest Intel® AtomTM D2550 CPU and NM10 chipset which is for the low power compact size system. The new architecture integrates the 3D graphics engine and memory controller. It’s suitable for Medical and Networking applications.


Ordering Guide
CPU Intel Atom® D2550 Processor (2 x 1.86 GHz, 1024 KB L2, 10 W)
Chipset Intel® NM10 chipset
DRAM 1x up to 4GB DDR3 800/1066 MHz SDRAM SODIMM
Graphic Controller Intel® GMA 3650
Display Interface DP (2560×1600), VGA (1920×1200), single channel LVDS (1440×900)
Storage 1x CF-SATA (supports CF and CF-SATA card)
1x SATA supports 3Gb/s data transfer rate
Network 1x RJ45 Intel® 82583V Gigabit Ethernet controller
Expansion 1x PCI Express x 1 slot (Gen 1, 2.5 GT/s)
1x Mini-PCIe slot (Gen 1, 2.5 GT/s)
Bus Interface LPC, SPI, SMBus
Serial Interface 1x RS232/422/485 on board connector
USB 2x USB 2.0 ports on rear I/O
4x USB 2.0 ports on board with pitch 2.0 header
Audio Realtek ALC886-GR HDA codec
Security NA
Miscellaneous On board programmable 8-bit Digital I/Os
Firmware Phoenix uFEI BIOS (SPI ROM)
Power Requirement DC 12V input
Power from W depends on used CPU
Operating Temperature 0°C to +55°C
Storage Temperature -20°C to +85°C
Dimensions 120×120 mm

Ordering Guide

Ordering Guide
AB1-3863 (R).NANO-5050

Packing List

Packing List
One NANO-5050 NANO-ITX Main Board
One passive Heatsink
One Installation CD


(Documents & Downloads)
