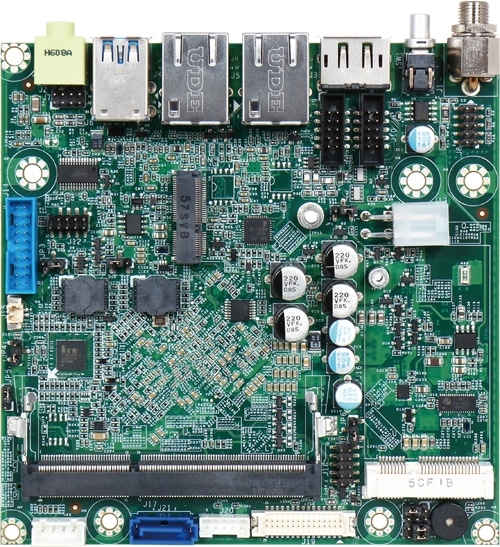

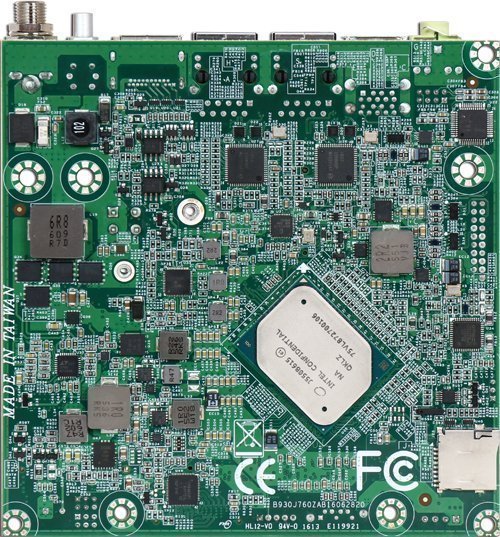

Intel Atom® Dual/Quad Core E3900 series SoC based on NANO-ITX Board with Triple Displays, GbE LAN, USB 3.0, M.2, SATA III, Mini-PCIe, and mSATA


  • Intel Atom® Dual/Quad Core E3900 series SoC
  • DDR3L 1866/1600 MT/s SO-DIMM up to 8GB
  • Triple Display by VGA, DP, and LVDS
  • M.2 socket, SATA III port, mini-PCIe, and mSATA socket
  • Wide range 12V to 24V DC power input
  • Support a wide -40°C to 85°C industrial temperature range


NANO-6062 build with Intel Atom® processor E3900 series. Not only does it operates with TDP under 12W for fan-less applications, but it also supports industrial temperature range from -40°C to 85°C and wide voltage of power input from 12V to 24V.

Support four USB 3.0 ports ensures fast data transmission with low-power consumption. Two SATA III interfaces with up to 6 Gb/s (one of them available as mSATA and the other for SATA) allow quick and lexible system expan-sions. Two Intel® Gigabit Ethernet controllers provide dual Gigabit Ethernet LAN access via the two RJ45 ports. NANO-6062 can design their own unique systems for Medical, Networking, Panel PC, Kiosk and Digital signage applications.


Processor – Intel Atom® Dual/Quad Core E3900 series Processor (up to 12W)
– 2MB Cache
Memory 1x DDR3L 1866/1600 MT/s non-ECC SO-DIMM up to 8GB
Storage Devices – 1x SATA III port
– 1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS)
– 1x Micro-SD socket
Watchdog Timer Programmable by embedded controller
Hardware Monitoring – Temperature (CPU & System)
– Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V)
Expansion Interface – 1x M.2 socket (E key)
– 1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS)
Audio – High Definition Audio integrated in Intel® SoC
– Realtek ALC892 HDA codec
– Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line out, and Mic-in
Ethernet – 2x Intel® I210IT GbE controller
– 2x Dual RJ45 connectors on rear I/O
Serial port – 1x RS-232/422/485 on board connector (selected by bios)
USB – 2x USB 3.0 ports on rear I/O
– 2x USB 3.0 ports on board with header
GPIO 8bit configurable controlled by embedded controller
Other TPM 2.0 on board
Graphic Controller – Intel® Gen 9 Graphics supports DirectX 12, OpenGL® 4.2 / OpenCL® 2.0
– Video decode HW acceleration support for H.264, H.265, MPEG2, VC-1/WMV9, JPEG, VP8, and VP9
Display Interface – LVDS: Dual channel 24bit LVDS on board connector, up to 1920×1200
– VGA: 1x DB-15 on board connector, up to 2560×1600
– DP: 1x DP port on rear I/O, up to 4096×2160
Mechanical & Environment
Dimension 120mm(L) x 120mm(W) ; 4.72″(L) x 4.72″(W)
Power Supply DC 12-24V input
Environment – Operation Temperature: -40°C~85°C
– Storage Temperature: -40°C~85°C
– Relative Humidity: 5%~95%, non-condensing
Certification CE, FCC Class B
MTBF Over 100,000 hours at 40°C

Ordering Guide

Ordering Guide
AB1-3E89 (R).NANO-6062-E3950
Nano-ITX ESB. Intel Atom® Quad Core 1.6GHz (12W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III
AB1-3G40 (R).NANO-6062-E3940
Nano-ITX ESB. Intel Atom® Quad Core 1.6GHz (9W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III
AB1-3G41 (R).NANO-6062-E3930
Nano-ITX ESB. Intel Atom® Dual Core 1.6GHz (6W). w/DDR3L SO-DIMM/ VGA/ LVDS/ DP/ Dual GbE LAN/ M.2/ SATA III


Packing List

Packing List
One NANO-6062 NANO-ITX Main Board
One Passive Heat Spreader
One Installatuon CD


(Documents & Downloads)

  Catalog   NANO-6062 | Catalog    March 29, 2021
1.67 MB 2630 Downloads
      BIOS | BIOS R1.00.E2   October 17, 2019

    MP bios support F1 stepping CPU

    5.17 MB 913 Downloads
        Driver | Driver    May 3, 2021
      39.19 MB 551 Downloads
        Driver | Driver    May 3, 2021
      78.89 MB 541 Downloads
        Driver | Driver    May 3, 2021
      244.65 MB 555 Downloads
        Driver | Driver    May 3, 2021
      2.56 MB 505 Downloads
        Driver | Driver    May 3, 2021
      124.85 MB 520 Downloads
          User’s Manual   Manual_NANO-6062_R1.1.pdf | Manual R1.1   May 3, 2021
        1.79 MB 742 Downloads
          User’s Manual   Manual_NANO-6062_R1.2.pdf | Manual R1.2   May 3, 2021
        1.82 MB 713 Downloads
          User’s Manual   Manual_NANO-6062_R1.0.pdf | Manual R1.0   May 3, 2021
        1.97 MB 730 Downloads
          User’s Manual   Manual_NANO-6062_R1.3.pdf | Manual R1.3   January 10, 2020

        Update information about E3930 support Dual Lan port

        2.58 MB 750 Downloads
            Software   Portwell Engineering Toolkit [PET] 4.7.12 | Software 4.7.12   March 26, 2024

          A Universal API for Hardware Access in Both Linux and Windows

          • PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
          • PET API sample code test application path:
            • Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
            • Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

          Supported products list:

          Series Models
          AMDY AMDY-7002
          ANSB ANSB-7A44E
          CEKL CEKL-XXXX
          KBB KBB-212E
          KUBE KUBE-2110
          Kuber Kuber-2000, Kuber-212
          MEDB MEDB-1002, MEDB-1004, MEDB-5180, MEDB-51A0, MEDB-6060, MEDB-6070
          MEDM MEDM-6180, MEDM-B641
          NANO NANO-5050, NANO-6040, NANO-6050, NANO-6051, NANO-6060, NANO-6062, NANO-6063, NANO-6064, NANO-8044
          PAB PAB-1001
          PCOM PCOM-B217, PCOM-B217J, PCOM-B218, PCOM-B219, PCOM-B219VG-INSYS, PCOM-B21A, PCOM-B630, PCOM-B632, PCOM-B633, PCOM-B634, PCOM-B635, PCOM-B636, PCOM-B637, PCOM-B638, PCOM-B638VG-8801, PCOM-B638VG-8802, PCOM-B639, PCOM-B641. PCOM-B645, PCOM-B651, PCOM-B652, PCOM-B653, PCOM-B654, PCOM-B655, PCOM-B655VGL-J. PCOM-B656, PCOM-B657, PCOM-B658, PCOM-B659, PCOM-B700, PCOM-B701, PCOM-B702, PCOM-B705, PCOM-B706, PCOM-B800, PCOM-B880, PCOM-B8800, PCOM-BA00, PCOM-BA01, PCOM-BA02
          PEB PEB-2131. PEB-2131C, PEB-2133, PEB-2737, PEB-2738I, PEB-2739I, PEB-2771, PEB-2772, PEB-2773, PEB-2781, PEB-5731, PEB-9782, PEB-99A3, PEB-99A4, PEB-99A5, PEB-99A7, PEB-99A8
          PF PF-8021
          PGB PGB-5120S
          PICO PICO-6260
          PNS PNS-9730
          PQ7 PQ7-M104, PQ7-M105, PQ7-M106, PQ7-M107, PQ7-M108
          PSMC PSMC-C921, PSMC-M1011
          PT PT-D711
          PX1 PX1-C415, PX1-C441
          ROBO ROBO-6911, ROBO-6912, ROBO-8110, ROBO-8111, ROBO-8112, ROBO-8113, ROBO-8114, ROBO-8115, ROBO-8116, ROBO-8210, ROBO-8779, ROBO-8780, ROBO-9910
          RUBY RUBY-D712, RUBY-D714, RUBY-D716, RUBY-D718, RUBY-D720, RUBY-D812-Q470E, RUBY-D813, RUBY-PB6511, RUBY-SQ1703
          SBC SBC-C430
          WADE WADE-7220, WADE-8011, WADE-8012, WADE-8013, WADE-8015, WADE-8016, WADE-8017, WADE-8020, WADE-8022, WADE-8046, WADE-8066, WADE-8067, WADE-8068, WADE-8070, WADE-8071, WADE-8072, WADE-8075, WADE-8077, WADE-8078, WADE-8079, WADE-8132, WADE-8170, WADE-8173, WADE-8211, WADE-8212, WADE-8321, WADE-PQ7712, WADE-SQ1705
          WEBS WEBS-2190, WEBS-5481, WEBS-85HX, WEBS-89I0
          11.96 MB 92 Downloads
