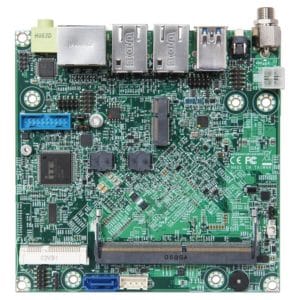

NANO-6063

Intel Atom® x6000E Series SoC based NANO-ITX Board with Triple Display, GbE LAN, USB 3.2 Gen 2, M.2, SATA III, Mini-PCIe, and mSATA

Features

  • Supports Intel® Atom® Dual/Quad Elkhart Lake Family SoC
  • Up to 32 GB DDR4 3200 non-ECC SODIMM
  • Supports multiple display by VGA, DP and HDMI®
  • High speed dual Gigabit Ethernet, high bandwidth I/O interface
  • Supports Real-Time Performance: TSN, TCC
  • Support on board TPM2.0

Video

Play Video

Description

NANO-6063 is based on Intel Atom® Elkhart Lake family processor. This processor not only supports industrial temperature from -40°C to 85°C but operates in certain 12W with low-power consumption. Succeeding previous version, NANO-6062, the flexibility of systematic expansions is suitable for Medical, Panel PC and Kiosk. Dual GbE LAN(GPY-215 & Intel® I210IT) design is fit in Industrial Automation, and Digital Signage application.

Specification

Specifications
General
Processor – Intel Atom® Dual/Quad x6000E series processor (up to 12W)
– Supports Intel® Turbo Boost, Hyper-Threading, Virtualization, Thermal Monitoring, Trusted Execution and Speed Step Technology (depends on CPU sku)
BIOS AMI UEFI BIOS
Memory – 1x DDR4 3200MT/s non-ECC SO-DIMM up to 32GB
– Supports In-Band ECC(only selected skus)
Storage Devices – 1x SATA III
– 1x mini-PCIe socket (select mSATA/mini-PCIe by BIOS)
– Micro SD socket
Watchdog Timer Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs
Hardware Monitoring System monitor(Voltage,Fan Speed and Temperature)
Expansion Interface – 1x M.2 (E key)
– 1x full size mini-PCIe socket (select mSATA/mini-PCIe by BIOS)
I/O INTERFACE
Audio – HDA controller intergated in Intel® SoC
– Realtek ALC888S HDA codec
– Audio jack on rear I/O (Line out)
– On board pin header (Line in, Line out, Mic in)
Ethernet – 1x Intel® GbE controller
– 1x GPY-215 controller
– 2x RJ45 connectors on rear I/O
Serial port – 1x RS-232/422/485 ports selectable
USB – 2x USB 3.2 Gen2 ports on rear I/O
– 2x USB 3.2 Gen2 ports on board with header
Other – TPM 2.0 on board
– Supports Real-time Performance – Intel® TCC & TSN
DISPLAY
Graphic Controller Intel® Gen 11 graphics suports DirectX 12, OpenGL 4.5, Open GL ES 3.2, Vulkan
Display Interface – HDMI®: 1x HDMI® port on reat I/O (HDMI® 2.0b, 4096×2160 @ 60Hz)
– DP: 1x DP port on rear I/O (DP 1.4 : 4096×2160 @ 60Hz)
– VGA: 1x on board pin header, up to 1920×1200
Mechanical & Environment
Dimension 120mm(L) x 120mm(W),4.72″(L) x 4.72″(W)
Power Supply DC 12V inpurt
Environment – Operating temperature:-40°C~85°C
– Storage Temperature: -40°C~85°C
– Relative Humidity: 5~95%, non-condensing
MTBF Over 90,000hrs at 40°C

Ordering Guide

Ordering Guide
AB1-3K29 (R).NANO-6063-x6425E
(R).Nano-ITX ESB. Intel Elkhart Lake SoC. x6425E/DDR4 SO-DIMM/VGA/HDMI®/DP/Dual GbE LAN/micro SD

Support

(Documents & Downloads)

  Catalog   Catalog_NANO-6063-Application-note.pdf | Catalog 20220519   May 18, 2022
2.9 MB 4171 Downloads
  Catalog   NANO-6063 | Catalog 20210311   March 11, 2021

Intel Atom® x6000E Series SoC based NANO-ITX Board with Triple Display, GbE LAN, USB 3.2 Gen 2, M.2, SATA III, Mini-PCIe, and mSATA

1.7 MB 3070 Downloads
      BIOS   BIOS_NANO-6063-I225-x6211E_0_0_15.zip | BIOS 0.0.15   August 22, 2023
    12.75 MB 135 Downloads
      BIOS   BIOS_NANO-6063_0_0_10.zip | BIOS 0.0.9   March 10, 2022
    12.2 MB 1999 Downloads
      BIOS   BIOS_NANO-6063_0_0_9.zip | BIOS 0.0.9   January 3, 2022
    5.9 MB 1884 Downloads
        Driver   Driver_NANO-6063_PSE_20220801.zip | Driver    August 3, 2022

      Windows 10 IoT 64bit PSE Driver for NANO-6063 Series

      1.28 MB 1513 Downloads
        Driver   Driver_NANO-6063_Bluetooth_10001066.zip | Driver 10001066   August 3, 2022

      Windows 10 IoT 64bit Bluetooth Driver for NANO-6063 Series

      68.93 MB 1325 Downloads
        Driver   Driver_NANO-6063_Wifi_10000576.zip | Driver 10000576   August 3, 2022

      Windows 10 IoT 64bit Wifi Driver for NANO-6063 Series

      305.4 MB 1229 Downloads
        Driver   Driver_NANO-6063_Trace_hub_10.0.17763.306.zip | Driver 10.0.17763.306   August 3, 2022

      Windows 10 IoT 64bit Trace hub Driver for NANO-6063 Series

      4.94 MB 1429 Downloads
        Driver   Driver_NANO-6063_Smart_sound.zip | Driver 20220801   August 3, 2022

      Windows 10 IoT 64bit Smart sound Driver for NANO-6063 Series

      546.9 MB 1315 Downloads
        Driver   Driver_NANO-6063_Serial_IO_5.123.1.1023.zip | Driver 5.123.1.1023   August 3, 2022

      Windows 10 IoT 64bit Serial IO Driver for NANO-6063 Series

      580.1 KB 1457 Downloads
        Driver   Driver_NANO-6063_HID_2.2.1.384.zip | Driver 2.2.1.384   August 3, 2022

      Windows 10 IoT 64bit HID Driver for NANO-6063 Series

      1.7 MB 1513 Downloads
        Driver   Driver_NANO-6063_Graphic_27.20.100.9565.zip | Driver 27.20.100.9565   August 3, 2022

      Windows 10 IoT 64bit Graphics Driver for NANO-6063 Series

      430.45 MB 1340 Downloads
        Driver   Driver_NANO-6063_GbE_220210.zip | Driver 220210   August 3, 2022

      Windows 10 IoT 64bit GbE Driver for NANO-6063 Series

      712.84 KB 1542 Downloads
        Driver   Driver_NANO-6063_CSE_15.40.15.2416.zip | Driver 15.40.15.2416   August 2, 2022

      Windows 10 IoT 64bit CSE Driver for NANO-6063 Series

      171 MB 1332 Downloads
        User’s Manual   Manual_NANO-6063_R1.1.pdf | Manual R1.0   June 13, 2022

      NANO-6063 user manual R1.0(first release)

      1.9 MB 1503 Downloads
