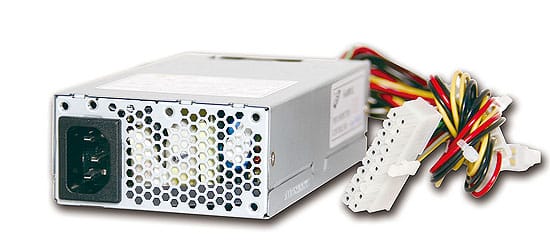

ORION-A1501P

150W Flex form factor power supply with active PFC

Features

  • Flex form factor power supply
  • Full-range input with active PFC
  • Max. 5V output is 13A
  • Low noise

Specification

Specifications
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 7.5A@115V, 3.5A@230V
Efficiency > 71%
Holdup Time 16 ms at full load
Over Voltage Protection +5V: 4.75 ~ 5.25V; +3.3V: 3.14 ~ 3.47V; +12V: 11.4V ~ 12.6V
Over Power/
Load Protection
Output power over 110% ~ 150%
MTBF >160,000 hrs
EMI & Safety Approval TUV, UL/cUL
Temperature/
Humidity
Operating: 0 ~ 40°C, 20 ~ 90%RH
Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension
(WxDxH)
81.5 x 150 x 40.5 mm; 3.2” x 5.9” x 1.6”

Ordering Guide

Ordering Guide
ORION-A1501P
150W PSU. Active PFC. Low Noise
