PBP-14I

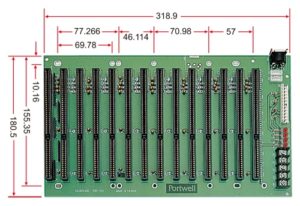

14-slot Passive ISA Backplane

Features

  • 4-layer PCB with ground and power planes for reducing noise and keeping lower impedance
  • Frame Rated PCB at 94-V0
  • LED power indicator for +5V, +12V, -5V and 12V
  • Heavy duty terminal block connector for industrial power supply wiring(*)
  • Equipped with gold-plated socket for good contact
  • Easy cut for dual or multi systems(*)
  • Plug-in sockets of termination resistors for high-
    speed signal.(*)
    “*”means for most part of products
