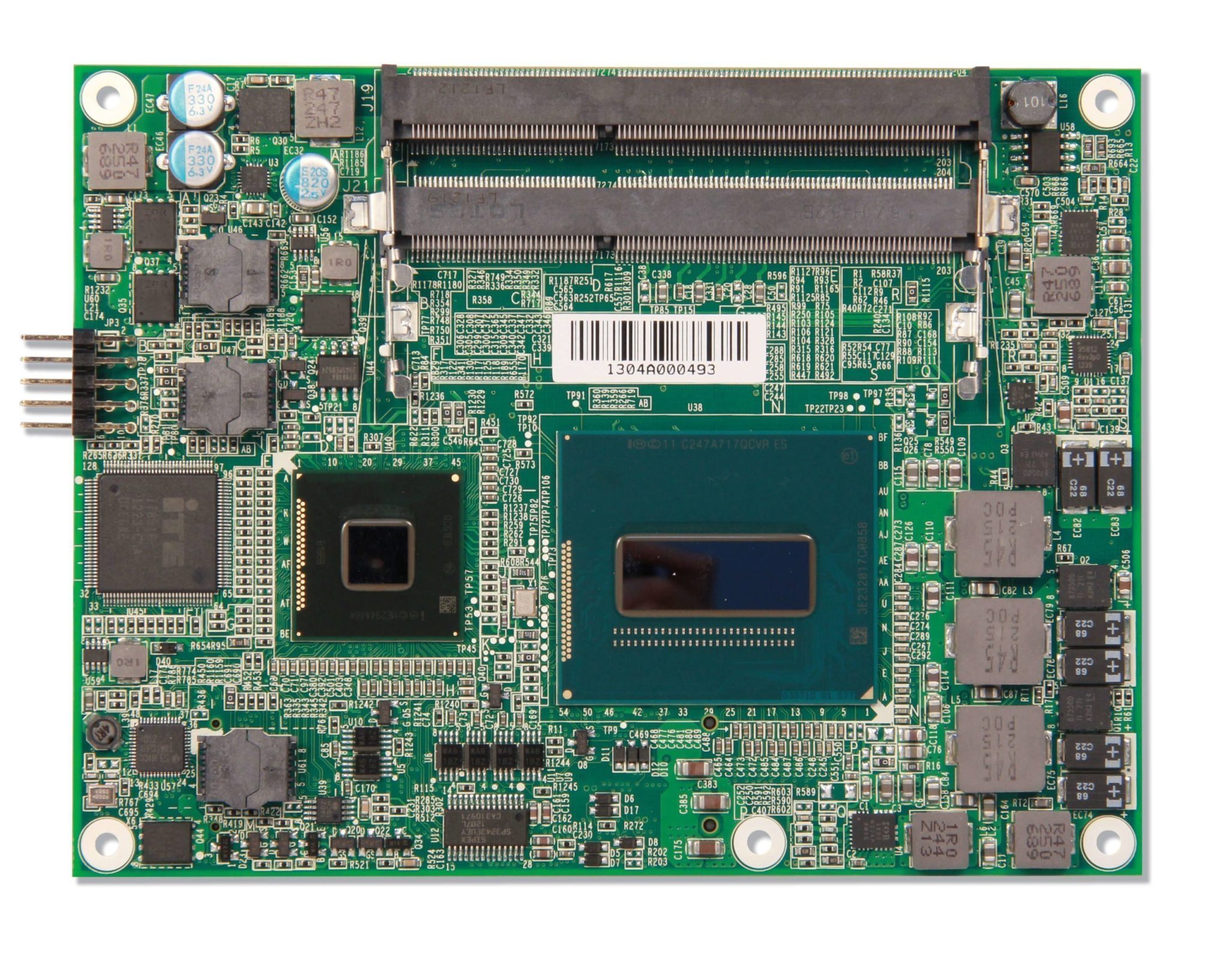

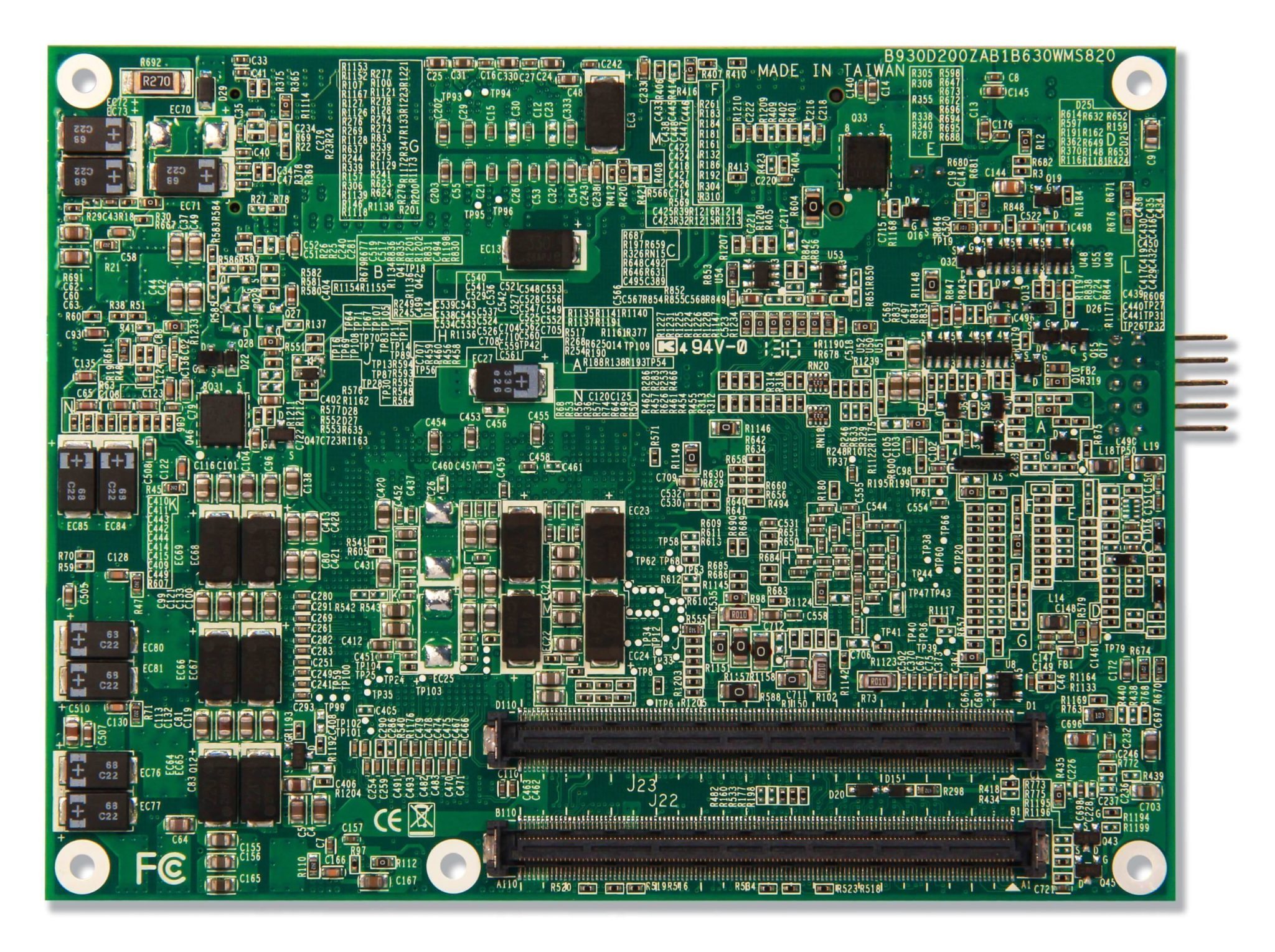

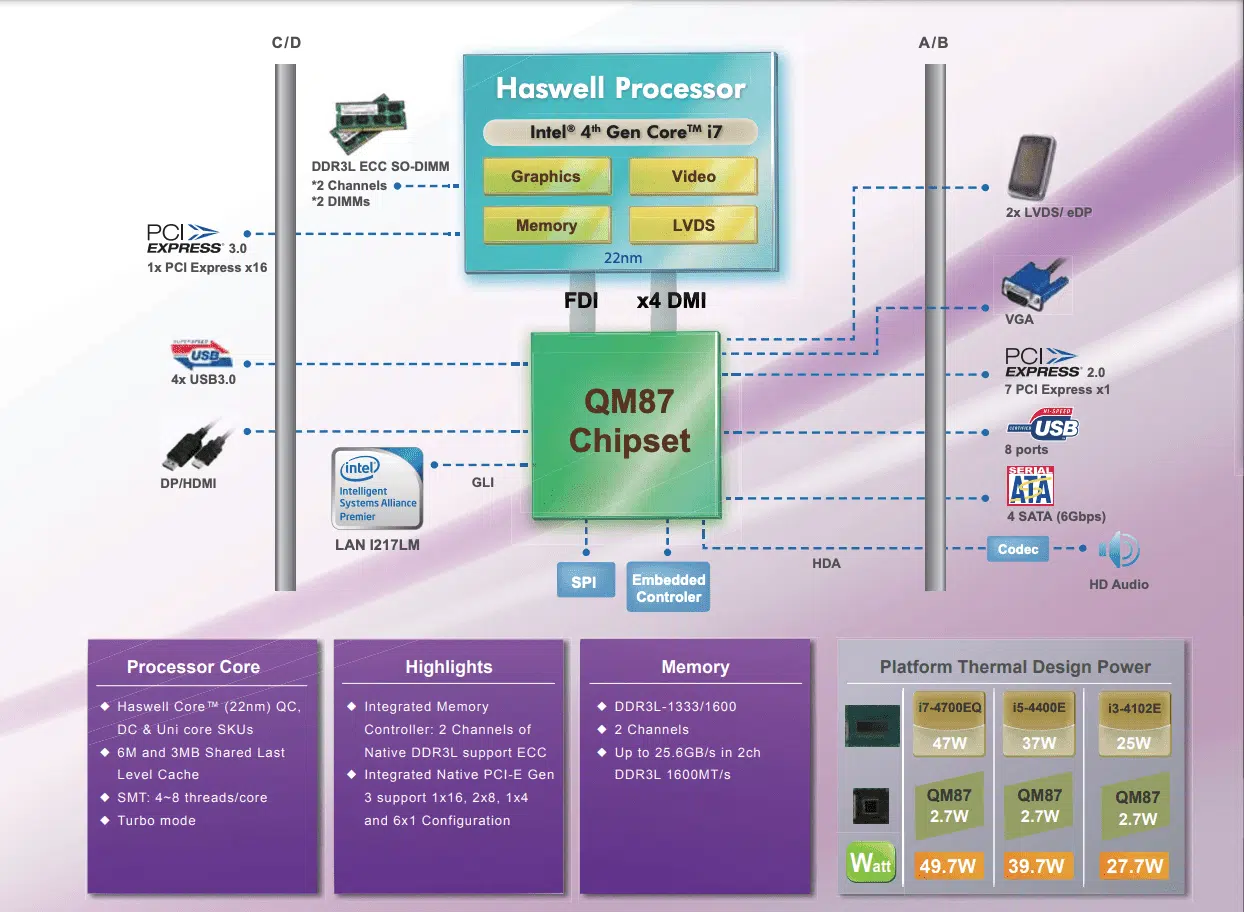

PCOM-B630VG

Intel^® 4^th Generation Core™ i7 Processor based on Type VI COM Express module with DDR3L SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB

Features

The Intel^® Shark Bay processor brings Quad-core technology and provides significant performance improvement
The Intel^® QM87 integrated GMA graphic provides better performance and variable display interfaces
Design to comply with both socket type and BGA type Core™ i7 processor for intensive computing
Architecture of module and carrier boards speeds up time-to-market of tailor-made equipment
Supports smart computing and power gear by cTDP(Configurable TDP)
More Reliable, Rugged & Expandable Design

Download

Description

Intel^® 4^th Generation Core™ i7 Processor based on Type VI COM Express module with DDR3L SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB

PCOM-B630VG can offer high computing power by Quad Core processor brings quad core technology and provides significant performance improvement. 6Gb/s SATA enhances performance ability. We also provide SOL, IDER, Serial over Lan and Remote control functions in PCOM-B630VG by Intel iAMT 9.0 support. Now, Mutil processor, RAID support and remote control functions are all in PCOM-B630VG. Using PCOM-B630VG to develop your high-end server is the best choice.

Specification

Specifications
Processor	Intel Core i5/i7 processor in BGA package DMI x4 link: 5.0GT/s Support Intel Turbo boost, hyper-treating and configurable cTDP (on 17watts/25watts CPU SKUs)
Chipset	Intel QM87 PCH
BIOS	Pheonix UEFI BIOS AMI UEFI BIOS
Memory	Support up to 16GB DDR 1333/1600 SDRAM on two 204pin SO-DIMM
Storage Devices	6x SATA ports (up to 6Gbps)
Watchdog Timer	Programmable by embedded controller
Expansion Interface	1x PCI-Express x16 Gen 3, up to 8GT/s

Ordering Guide

Ordering Guide
AB1-3920	Shark Bay QM87, Type 6, ECC Core i7 i7-4700EQ (4C, 2.4GHz, 47Watts)
AB1-3A00	Shark Bay QM87, Type 6, ECC Core i5 i5-4400E (2C, 2.7GHz, 37Watts)
AB1-3A01	Shark Bay QM87, Type 6, ECC Core i5 i5-4402E (2C, 1.6GHz, 25Watts)
AB1-3A03	Shark Bay QM87, Type 6, ECC Core i5 i5-4100E (2C, 2.4GHz, 37Watts) with MOQ
AB1-3A03	Shark Bay QM87, Type 6, ECC Core i3 i3-4102E (2C, 1.4GHz, 25Watts) with MOQ

Documents & Downloads

Catalog PCOM-B630VG | Catalog March 30, 2021

Download

Intel® 4th Generation Core i7 Processor based on Type VI COM Express module with DDR3L SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB

648.44 KB 2403 Downloads

BIOS BIOS_PCOM-B630VG_R100E5_Update | BIOS R1.00.E5 August 31, 2020

Download

Revised the BIOS voltage description

5.12 MB 882 Downloads

BIOS BIOS_PCOM-B630VG_R100E4_update | BIOS R1.00.E4 November 8, 2016

Download

Fix PS/2 USB KB issue in OS.
EC version display error fix.
Fix Support ECC Event Log Error

4.98 MB 1499 Downloads

EC EC_PCOM-B630VG_R1E6_update | EC R1.E6 November 8, 2016

Download

Support I2C R/W function
Support restore AC power lost function
Support AT mode by H/W switch

61.33 KB 1529 Downloads

EC EC_PCOM-B630VG_R1E1_110513 | EC R1.E6 November 8, 2016

Download

Support I2C R/W function
Support restore AC power lost function
Support AT mode by H/W switch

87.00 KB 1490 Downloads

No downloads found!

User's Manual Manual_PCOM-B630VG_R0_110513 | Manual November 5, 2013

Download

2.22 MB 3259 Downloads

No downloads found!

Application Note PCOM-B65A | Application Note 240710 August 15, 2024

Download

0.00 KB 38 Downloads

Drawing Drawing_PCOM-B630VG | Drawing 2016 November 2, 2016

Download

3D Drawing

8.45 MB 1531 Downloads

Software Portwell Engineering Toolkit [PET] | Software 4.7.16 March 26, 2024

Download

A Universal API for Hardware Access in Both Linux and Windows

PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
PET API sample code test application path:
- Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
- Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

PET 4.7.16 Released
.................................................................................................................................
1. Update the product support list to include support for ANS-9A44S.
2. Update the GUI logo.
.................................................................................................................................

Supported products list: Portwell Engineering Toolkit Info

11.96 MB 233 Downloads

Software Software_NODE.X Agent_0.0.7.zip | Software 0.0.7 January 22, 2024

Download

20.54 MB 11 Downloads

Software Software_WEBS-45Hx_Series_20220426.zip | Software 20220426 December 6, 2022

Download

GPIO test

508.9 KB 1186 Downloads
