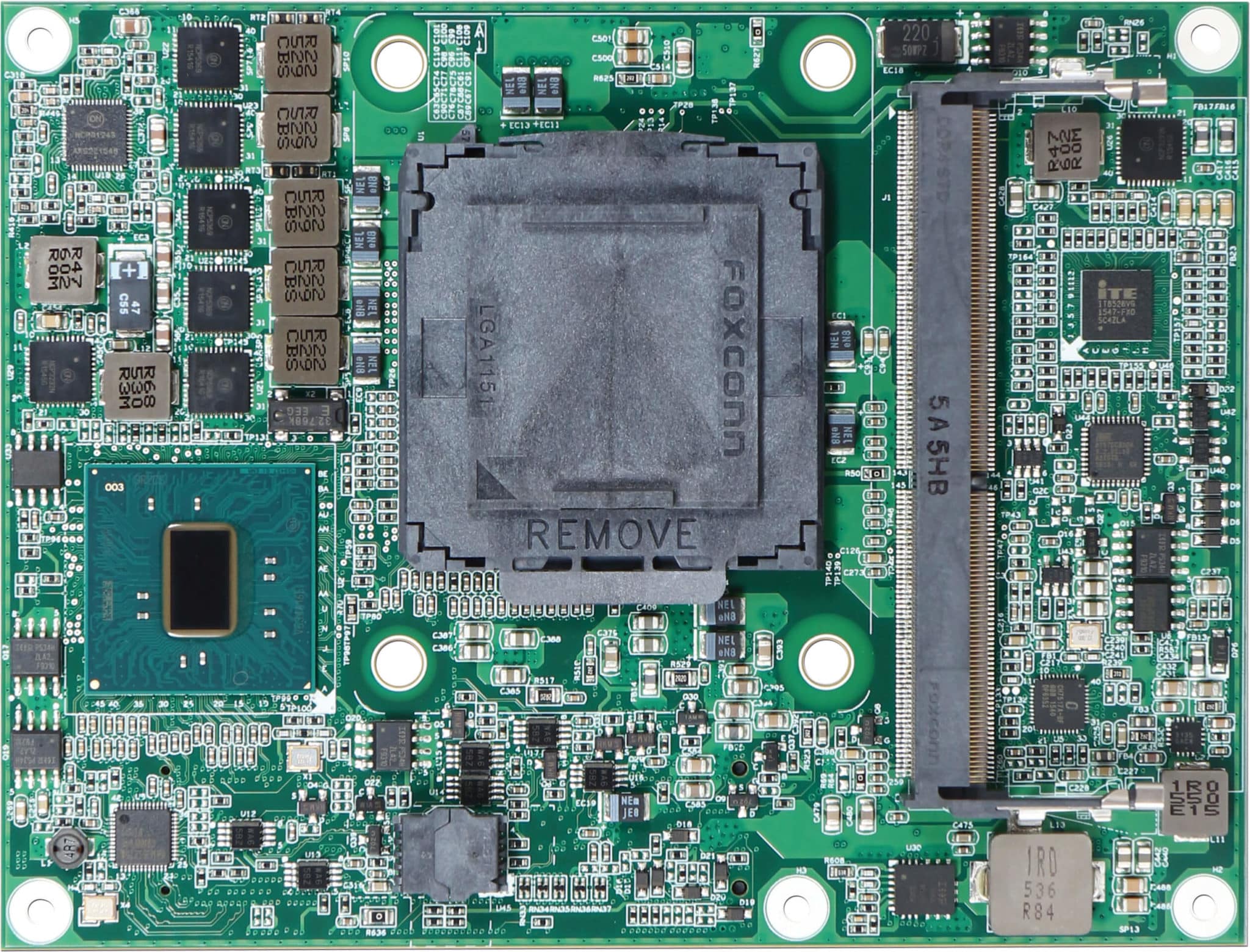

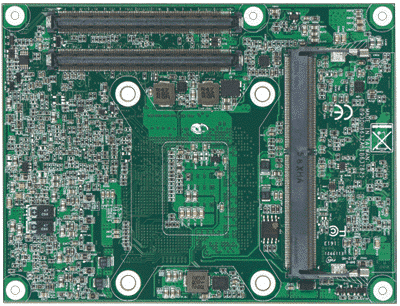

PCOM-B637VG

Intel® 6th Generation Core™ Kaby Lake-S / Skylake-S processors based on Type VI Basic-COM Express® 2.0 module with DDR4 SDRAM on Two SO-DIMM slots, VGA, eDP, DP, Gigabit Ethernet, PCIE, SATA and USB

Features

  • Intel® 6th Core™ Processors Support (Kaby Lake-S / Skylake-S 35W)
  • Support 2x DDR4-2133 ECC/Non-ECC SO-DIMMs, up to 32GB
  • Support USB 2.0/3.0, SATA III, 7x PCIe 3.0 x1 and 1x PCIe 3.0 x16
  • One VGA, three Displayport
  • Wide voltage support, from 6V to 18V

Description

PCOM-B637VG is Portwell’s first module with desktop CPU. It provides customers four important factors, high performance with affordable cost, DDR 4 memory support, Gen 3 PCIe support, and 30% faster graphic performance. The desktop CPU on module is a new idea which offers customer higher computing power but lower cost comparing to mobile solutions. The DDR4 support is also another important point for higher performance. PCOM-B637VG can support both ECC and Non-ECC DDR4 by different PCH SKUs. This is good for different applications. The Gen 3 PCIe support provides faster PCIe speed so that the performance of PCIe devices will be better. It is crucial for Networking and Medical related applications. PCOM-B637VG provides one PCIe x16, eight PCIe x1 (Option to one PCIe x4), four USB 3.0, and four SATA3.

Specification

Specifications
CPU Intel® Core™ i7-6700TE Processor (4 x 2.40 GHz / 3.40 GHz, 8 MB SmartCache, 35 W)
Intel® Core™ i5-6500TE Processor (4 x 2.30 GHz / 3.30 GHz, 6 MB SmartCache, 35 W)
Intel® Core™ i3-6100TE Processor (2 x 2.70 GHz, 4 MB SmartCache, 35 W)
Intel® Core™ i7-6700T Processor (4 x 2.80 GHz / 3.60 GHz, 8 MB SmartCache, 35 W)
Intel® Core™ i5-7600T Processor (4 x 2.80 GHz / 3.70 GHz, 6 MB SmartCache, 35 W)
Intel® Core™ i5-7400T Processor (4 x 2.40 GHz / 3.00 GHz, 6 MB SmartCache, 35 W)
Intel® Core™ i3-7300T Processor (2 x 3.50 GHz, 4 MB SmartCache, 35 W)
Intel® Core™ i3-7100T Processor (2 x 3.40 GHz, 3 MB SmartCache, 35 W)
Intel® Core™ i5-6600T Processor (4 x 2.70 GHz / 3.50 GHz, 6 MB SmartCache, 35 W)
Intel® Core™ i5-6500T Processor (4 x 2.50 GHz / 3.10 GHz, 6 MB SmartCache, 35 W)
Intel® Core™ i5-6400T Processor (4 x 2.20 GHz / 2.80 GHz, 6 MB SmartCache, 35 W)
Intel® Core™ i3-6300T Processor (2 x 3.30 GHz, 4 MB SmartCache, 35 W)
Intel® Core™ i3-6100T Processor (2 x 3.20 GHz, 3 MB SmartCache, 35 W)
Intel® Pentium® Processor G4400T (2 x 2.90 GHz, 3 MB SmartCache, 35 W)
Intel® Pentium® Processor G4500T (2 x 3.00 GHz, 3 MB SmartCache, 35 W)
Intel® Pentium® Processor G4560T (2 x 2.90 GHz, 3 MB, 35 W)
Format Basic
Type Type 6
Chipset Intel® Q170, H110, C236
DRAM Up to 32GB DDR4-2133 on two 204-pin SO-DIMM sockets, Non-ECC / ECC
Graphic Controller Intel® HD Graphics 630 (Kaby Lake) Intel® HD Gen9 Graphics 510/530 (Skylake), Support DX 11/12, OpenGL 4.3/4.4, ES 2.0, OpenCL 2.x
Display Interface VGA (1920×1200 @ 60 Hz) 3x DDI HDMI®/DP (1 optional) DP 3840×2160 @ 60 Hz HDMI® 3840×2160 @ 60Hz
Storage 4x SATA III (6Gbit/s)
Network 1x Gigabit Ethernet Intel® I219LM
Bus Interface 8x PCIe x1 Gen3 (four x 1 can be configured to on x4 lane), 1x PCIe x16 Gen3
Serial Interface 1x RX/TX
USB 8x USB 2.0, 4x USB 3.0
Audio Intel® HD Audio
Miscellaneous GPIO 8bit,Watchdog Timer,HW monitoring CPU, voltage, fan and temperature
Firmware AMI Aptio BIOS
Power Requirement 12VDC, 5V STBY, VBAT, Support AT and ATX mode
Power from W depends on used CPU
Operating Temperature 0C° to +60°C
Extended Temperature optional
Dimensions 125×95 mm

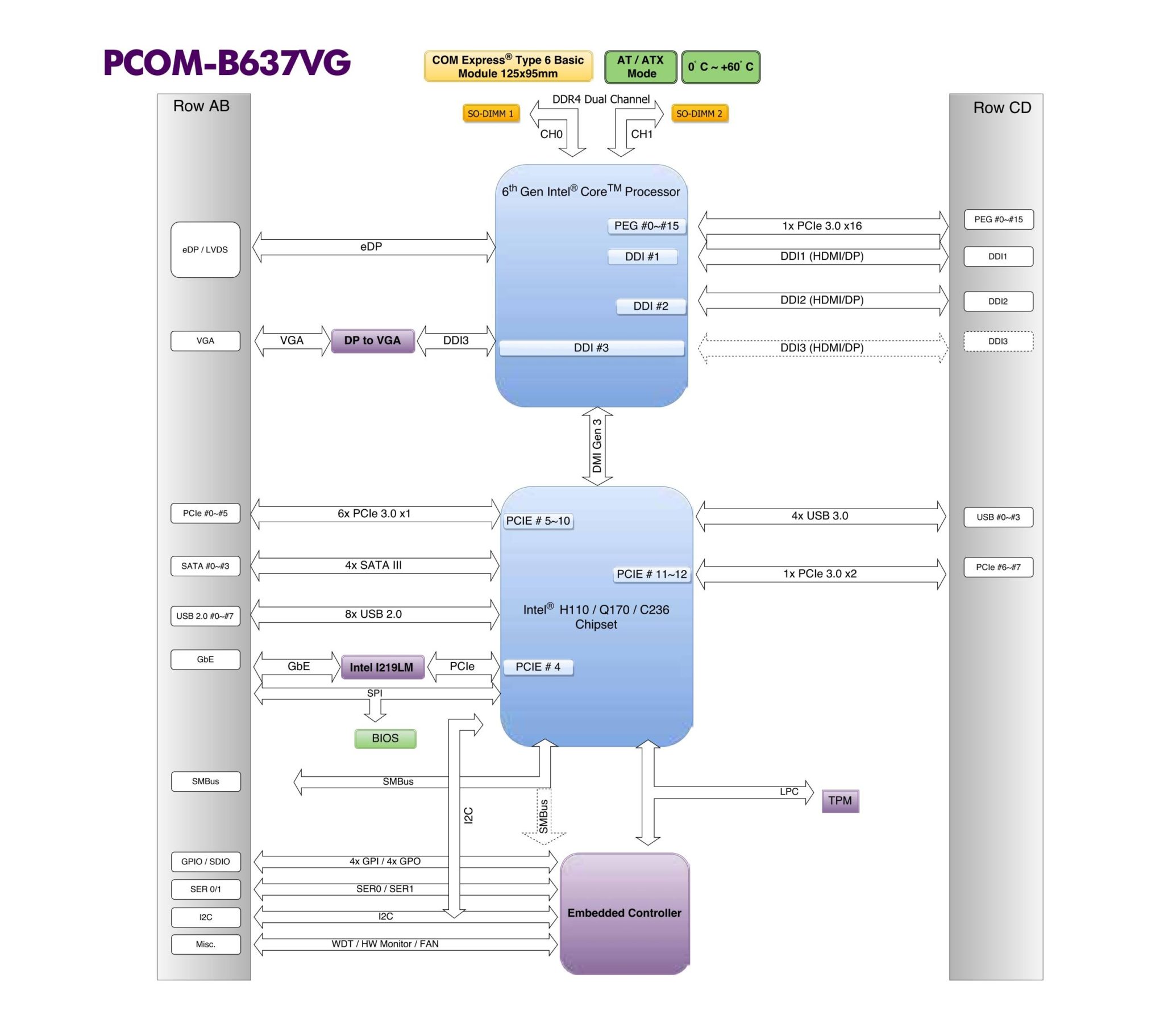

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B637VG-Q170 AB1-3E37 Available
PCOM-B637VG-H110 AB1-3E34 Available
PCOM-B637VG-C236 AB1-3E36 Available

Accessory

Accessory
Accessory Ordering P/N Status
PCOM-C605 carrier board AB1-3998 Available
PCOM-B637VG Cooler B9971421 Available
PCOM-B637VG Heat Sink B8308650 Available
