PCOM-B638VG

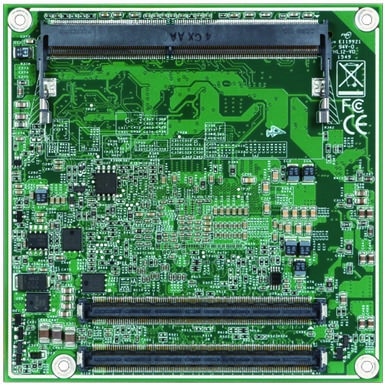

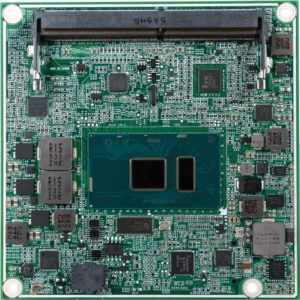

Intel® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket

Features

  • Intel® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 7000, 6000 series processors
  • DDR4 SDRAM up to 32GB 2133 MT/s
  • Multiple Displays VGA, LVDS/eDP, DP, HDMI®
  • Widely voltage support 6V to 18V

PCOM-B638VGL, a type 6 compact COM Express® (95 x 95 mm) module which based on Intel® Kaby Lake-U/Skylake-U® i7/i5/i3 and Celeron® processors. In this architecture, PCOM-B638VG could provide VGA, LVDS, and high quantity HDMI®, eDP, DP displays, also included turbo mode up to 3.4GHz, and expandability I/O interfaces such as 5x PCIe 3.0 x 1, 4x USB 3.0, 8x USB 2.0, and 3x SATA III devices. With this ultra low power consumption required (15W), PCOM-B638VG could provide a very energy saving solution to different vertical market, such as automation, healthcare, transportation and retails.

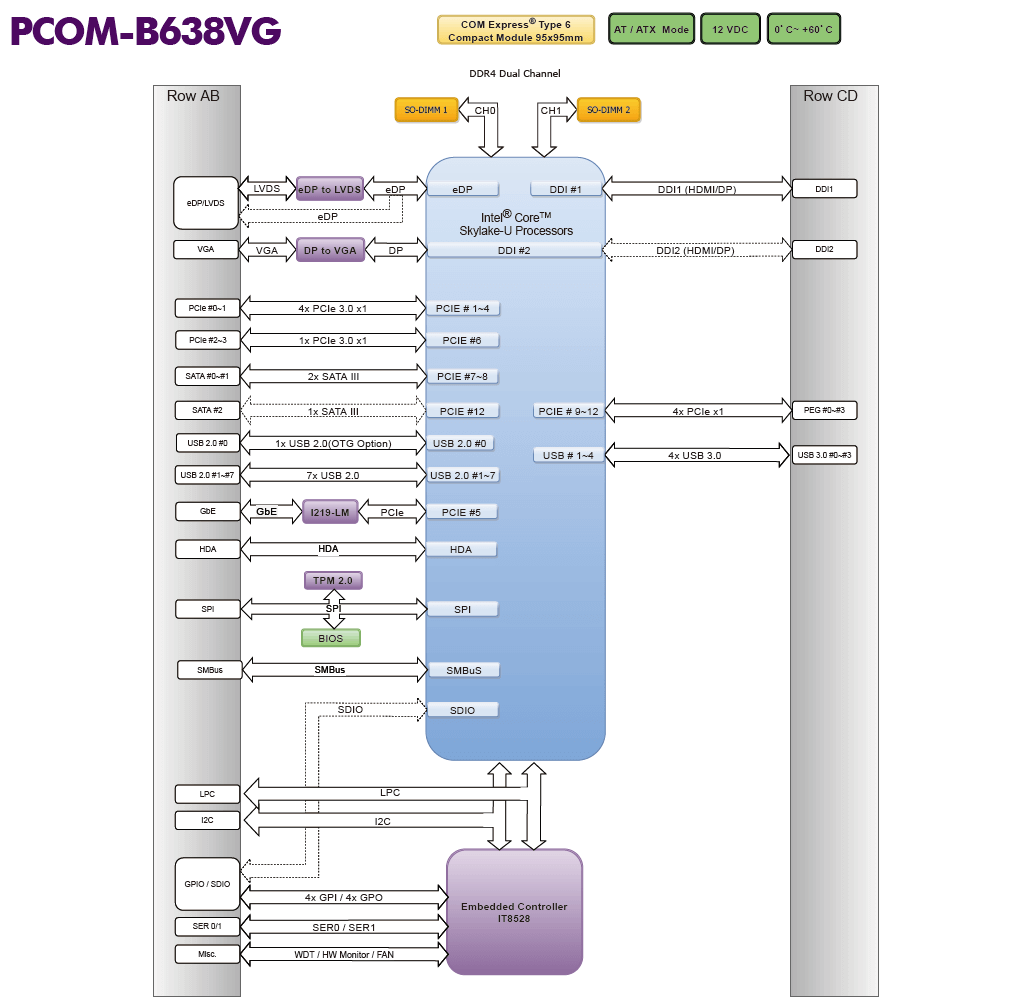

Block Diagram

Specification

Specifications
Model Name PCOM-B638VG
Form Factor (mm) Compact (95 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache Intel® Core™ i7-7600U Intel® Core™ i5-7300U Intel® Core™ i3-7100U Intel® Core™ i7-6600U Intel® Core™ i5-6300U Intel® Core™ i3-6100U Intel® Celeron® Processor 3965U Intel® Celeron® Processor 3955U 3.00 GHz to 3.90 GHz (Turbo) 2MB to 4MB cache
Chipset SoC
Graphic Controller Intel® HD Gen9 Graphics 520
Memory DDR4 SO-DIMM up to 32GB 2133 MT/s Non-ECC Dual Channel
Storage 2x SATA III 1x SATA III(Option)
USB 4x USB 3.0 8x USB 2.0
PEG 4x PCIe 3.0 x 1
PCI Express 5x PCIe 3.0 x 1
Ethernet I219LM
Audio HD Audio
Operating Temperature 0C° to 60°C
Carrier Board PCOM-C605 (Mini-ITX) PCOM-C60B (ATX)

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B638VG-6600U AB1-3E39 Available
PCOM-B638VG-6300U AB1-3E38 Available
PCOM-B638VG-6100U AB1-3E32 Available
PCOM-B638VG-3955U AB1-3E77 Available
PCOM-B638VG-7600U AB1-3G88 Available
PCOM-B638VG-7300U AB1-3G87 Available
PCOM-B638VG-7100U AB1-3G86 Available
PCOM-B638VG-3965U AB1-3G85 Available

Accessory

Accessory
Accessory Ordering P/N Status
Cooler B9971380 Available
Heat Sink B8308660 Available
Heat Spreader B8308500 Available
PCOM-C605(Min-ITX Carrier board) AB1-399 Available
PCOM-C60B(ATX Carrier board) AB1-3G22Z Contact us
