PCOM-B645VGL

Intel® Atom® Elkhart Lake series SoC based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket

Features

  • Intel® Atom® Elkhart Lake x6000 series processors
  • DDR4 SO-DIMM up to 32GB 3200 MT/s with In-Band ECC
  • Multiple Displays VGA, LVDS/eDP, DP, HDMI®
  • Support Industrial temperture -40°C to 85°C
  • Support Intel® TCC/TSN with 2.5GbE

Video

Play Video

Description

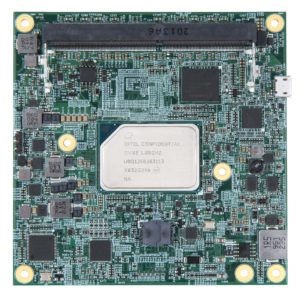

PCOM-B645VGL, a type 6 compact COM Express® (95 x 95 mm) module which is based on Intel Atom® Elkhart Lake x6000, Pentium® N, J Series processors. In this architecture, PCOM-B645VGL provides VGA, LVDS, and eDP, DP, HDMI® with 4K resolution, and supports three indepent dis- plays. And it also provides turbo mode up to 3.0GHz, with extending 6x PCIe 3.0, 2x USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III. With ultra low power consumption(4.5 to 12W), wide-temp support, it could provide very energy saving and high efficient performance. PCOM-B645VGL aims in different versatile applications, such as automation, healthcare, retail, transportation.

Specification

Specifications
Model Name PCOM-B645VGL
Form Factor (mm) Compact (95 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache Intel® Atom® J6426
Intel® Atom® x6211E
Intel® Atom® x6413E
Intel® Atom® x6425E
Intel® Atom® x6425RE
2.60 GHz to 3.00 GHz
1.5MB cache
Chipset SoC
Graphic Controller Intel® UHD Graphics 10th
Memory DDR4 SO-DIMM up to 32GB 3200 MT/s
IB-ECC
Dual Channel
Storage 2x SATA III
USB 2x USB 3.2(Option 4x USB 3.2)
8x USB 2.0(Option 1x OTG)
PEG N/A
PCI Express 6x PCIe 3.0 x 1
Ethernet GPY215
Audio High Definition Audio
Operating Temperature -40C° to 85°C
Carrier Board PCOM-C605 (Mini-ITX)
PCOM-C60B (ATX)

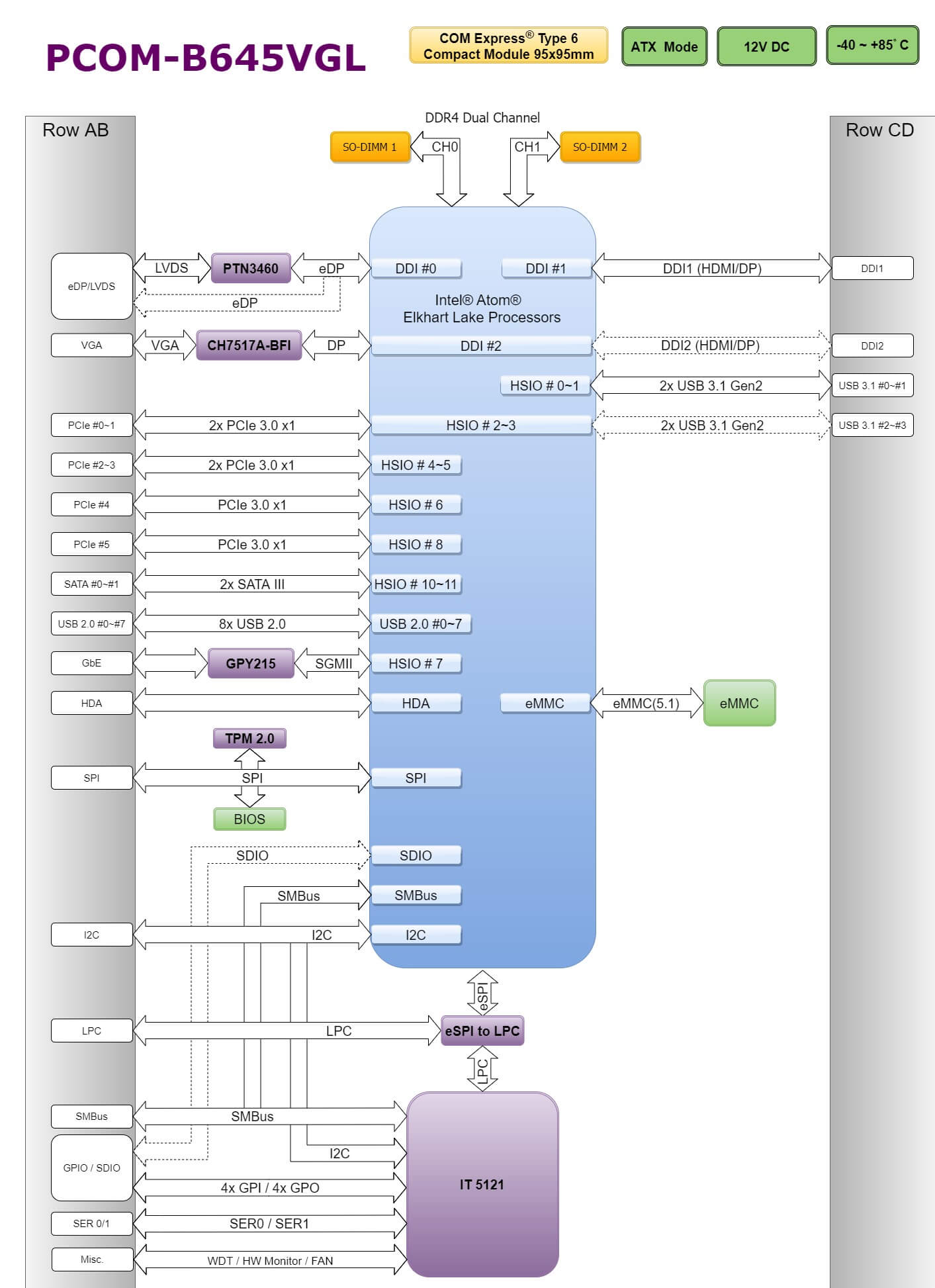

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B645VGL-J6426 AB1-3L84 Available
PCOM-B645VGL-x6211E AB1-3L83 Available
PCOM-B645VGL-x6413E AB1-3L82 Available
PCOM-B645VGL-x6425E AB1-3K43 Available
PCOM-B645VGL-x6425RE AB1-3L81 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Sink (J/N-sku) B830B390 Available
Heat Sink (X-sku) B830B380 Available
Heat Spreader (J/N-sku) B830B460 Available
Heat Spreader (X-sku) B830B470 Available
PCOM-C60B(ATX Carrier board) AB1-3G22Z Contact us
